| Nominal sensing distance | 6mm |
| Thermal drift of Sr | < 20% |
| Repeat Accuracy | 5% |
| Sensitivity adjustment | NO |
| Hysteresis | ≤ 20% |

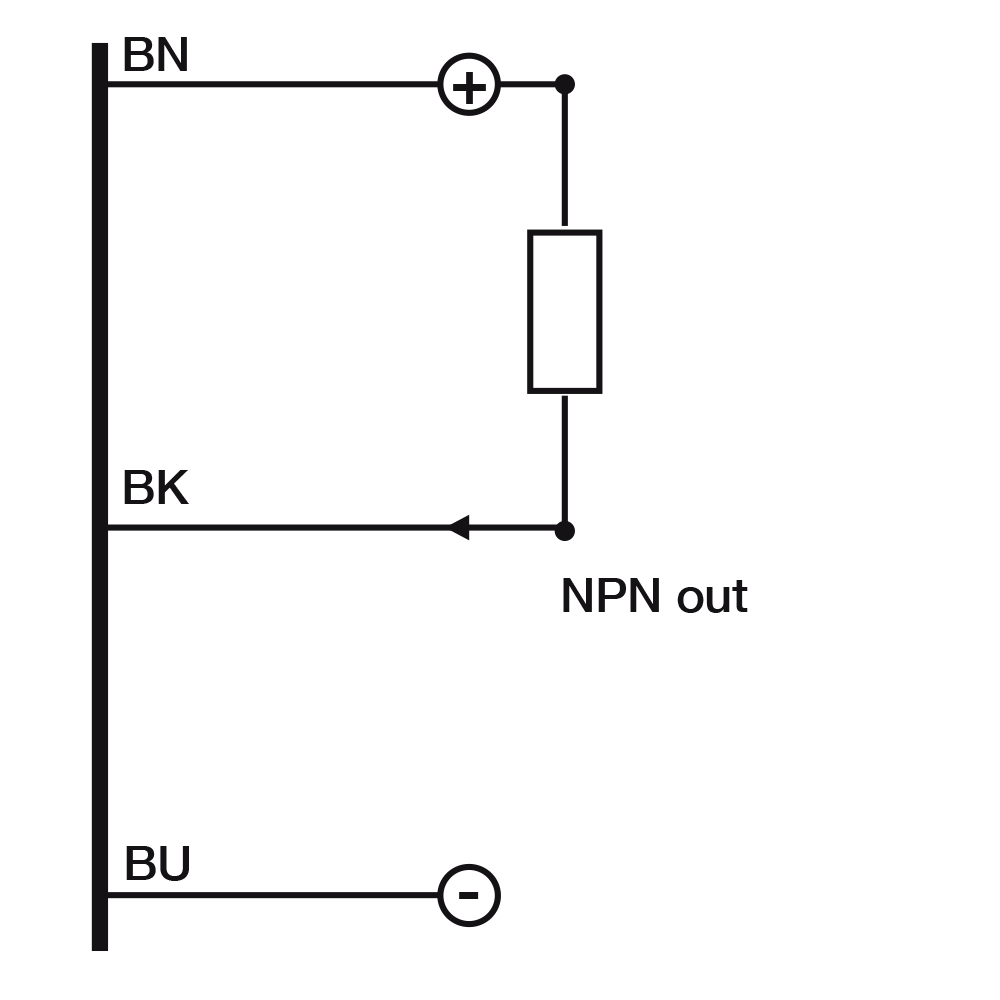

| Output type | NPN |
| Output Function | NO |
| Switching frequency | 10Hz |
| Operating Voltage | 10..30Vdc |
| No-Load supply current | ≤ 10mA |
| Load current | ≤50mA |
| Leakage current | ≤ 100µA |
| Output voltage drop | 1,5Vmax @ IL=50mA |
| Max ripple content | ≤10% |
| Time delay before availability | ≤100ms |
| Short-circuit protection | Yes, autoreset |
| Reverse Polarity Protection | Yes |
| Impulsive Overvoltage Protection | Yes |
| Mounting | Shielded |

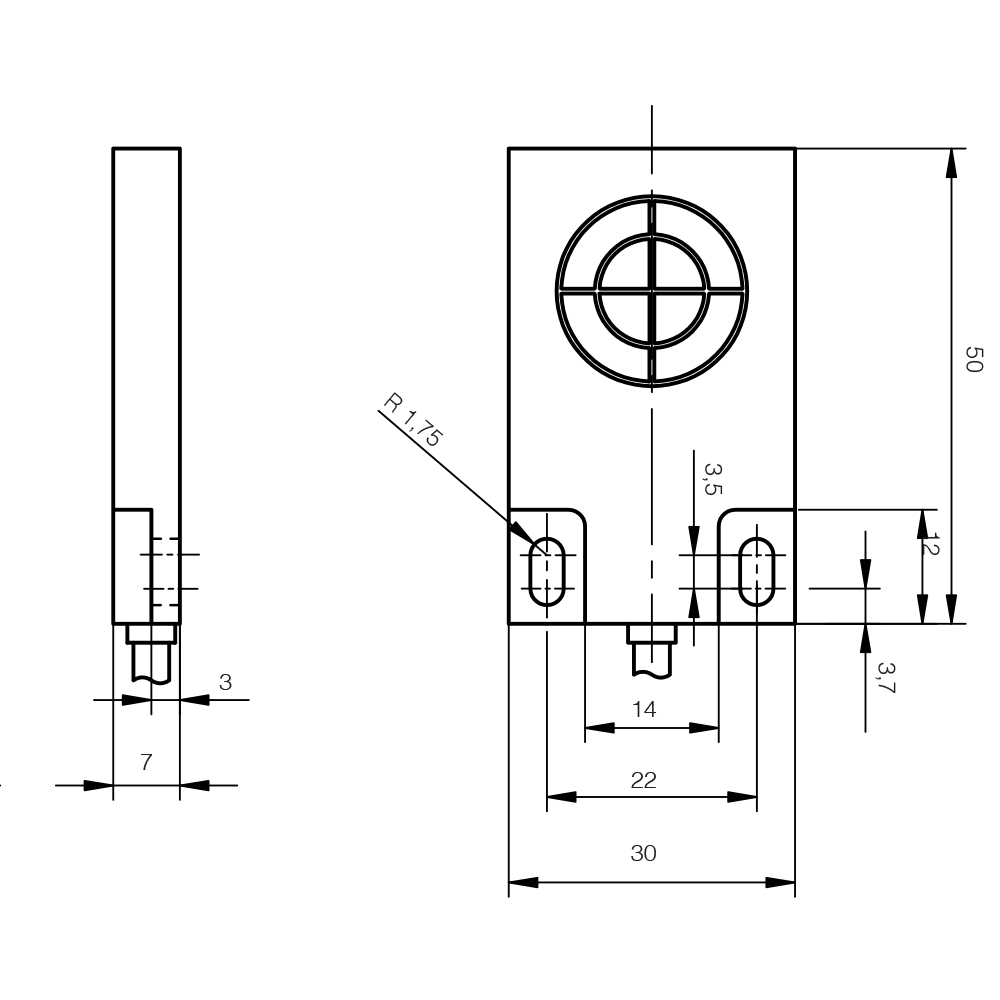

| Dimensions | 50x30x7mm |
| Weight | 70g |
| Housing Material | noryl |
| Connections | 2m PVC cable |
| Active Head Material | noryl |
| Operating temperature | 0…60°C (without freeze) |
| Storage temperature | -30°C…+75°C |
| Diameter/Dimension | 50x30x7mm |
| Approvals | CE |
| EMC compatibility | IEC 60947-5-2 |
| Degree of protection | IP67 |
| Dimensions | 50x30x7mm |
| Operating Temperature | 0…60°C (without freeze) |
| Mechanical Protection | IP67 |
