SENSORS

photoelectric sensor

  • TUBULAR  -  IP69K - M18

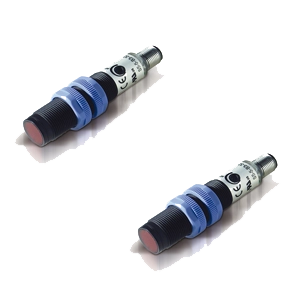

    S5

    The S5 series offers a range of plastic tubular M18 photoelectric sensors. The most varied optic functions can be chosen amongst the fixed focus or diffuse proximity models with short, medium or long operating distances reaching 60 cm; the 4 m retroreflex, 3 m polarised retroreflex and 1 m for detection of transparent materials; the 12 m through beam and models with fibre-optic connection. Different versions with either axial or radial optics are available. The series offers connector or cable connection, 3 wire Vac versions or 4 wire Vdc versions with complete configuration of the NPN/ PNP output and dark/light mode. A red LED indicating the output status is visible on the bottom side of the sensor. The versions with trimmer adjustment present also a green LED signalling the switching stability according to the received signal’s intensity. The rugged ABS housing alway

    • Wide versatility of optic functions and connections
    • High operating distances for all functions
    • Models with trimmer adjustment and stability LED
    • Rugged and impermeable plastic housing
    GO TO

  • TUBULAR  -  IP69K - M18

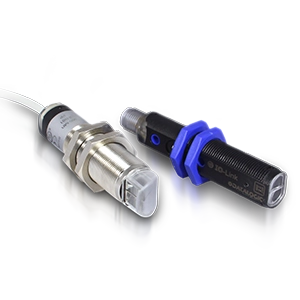

    S5N

    The first tubular sensor line with all optic functions and IO-Link V1.1 smart sensor profile on the market, a reference point for the Industry 4.0. Stainless steel AISI 316 L IP69K ECOLAB and Diversey models (S5N...NA...) are also available.

    • Diffuse proximity up to 700 mm
    • Background suppression up to 150 mm
    • Contrast sensor 10 mm ±2 mm
    • All the optic functions are available
    • Robust EMI immunity
    • Improved ambient light immunity
    • M18 flat plastic with universal mounting
    • Available in M18 metal housing
    • Axial or radial optics, cable or connector
    • IO-Link V1.1 COM 2 Smart sensor profile
    • INOX AISI 316 L models are available
    • S5N...NA compliant with Ecolab and Diversy
    GO TO

  • TUBULAR  -  M12

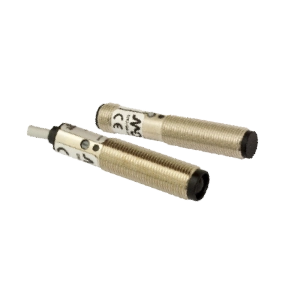

    DM

    M12 Photoelectric Sensors with different models with Teach-in button for easy adjustment.

    • Red and infrared emission
    • Diffuse up to 300 mm
    • Polarized 2.5 m
    • Through-beam 4 m
    • PNP or NPN output with remote Teach-in
    • Cable 2 m or M12 plug connection
    • 4 wires selectable NO/NC output
    • M12 metallic housing
    GO TO

  • TUBULAR  -  M18

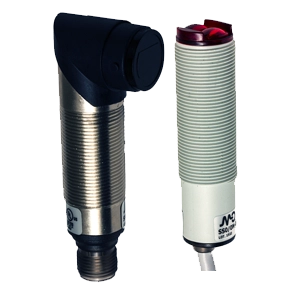

    SS-SP

    Wide range of models of M18, photoelectric sensors: general porpouse with all optical function

    • Models with or without adjustment on axial and right angle optic
    • LO/DO selectable output
    • ATEX models, cat. 3, available on request
    • LED status indicator for all versions
    • IP67 protection degree for all models
    GO TO

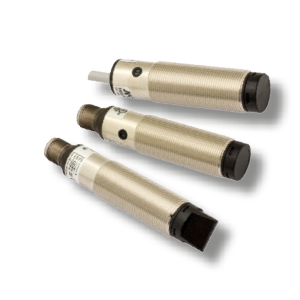

  • TUBULAR  -  M18

    FA

    Wide range of models of M18, photoelectric sensors , diffuse models up 1.5 m, polarized 4.5 m, backgrouns suppression up 250 mm, through-beam up 20 m, for transparent objects.

    • Complete range of M18 sensors with 10...30 Vdc power supply
    • Axial and radial optic with flat surface
    • Retro-reflective models for transparent objects detection, with red emission
    • IP67 protection degree
    • Metallic or plastic housing
    • Sensitivity adjustment available for all models
    GO TO

  • TUBULAR  -  M18

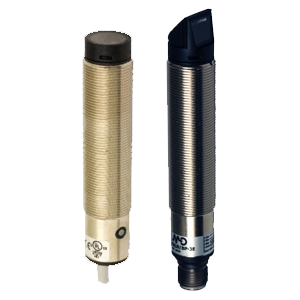

    FAL

    M18 photoelectric sensors with different models with teach-in button and laser emission.

    • Axial and right optic with flat surface
    • Visible red laser emission (laser class 1)
    • High operative distance
    • IP67 protection degree
    • Metallic or plastic housing
    • Sensitivity adjustment by teach -in button
    • Total protection against any type of electric damages
    GO TO

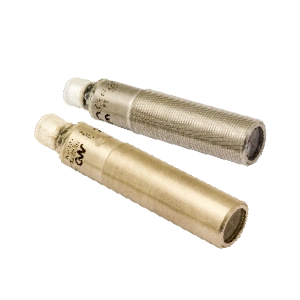

  • TUBULAR  -  M18

    FF + FFRS

    Wide range of models of M18, photoelectric sensors: for harsh and washdown enviroments, ECOLAB and DIVERSY tested.

    • Red, infrared emission
    • Adjustment with Innovative inductive teach-in function through sensors’s housing (FF)
    • Diffuse up to 800 mm
    • Polarized up 4.5 m
    • Through-beam up 20 m
    • For transparent objects up 1.5 m
    • Background Suppression up to 130 mm)
    • AISI316L Stainless steel housing
    • Protection degree IP68, IP69K
    • Ecolab and Diversey certification
    • M18 or smooth housing
    GO TO

  • SUB-MINIATURE

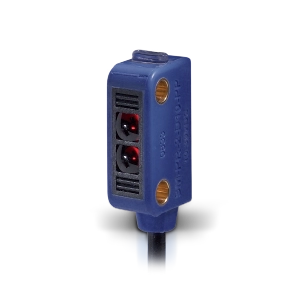

    Small

    The subminiature photoelectric sensor with all universal optic functions Precise and effective detection also for hard application to reach objects in compact machineries with narrow spaces.

    • Fixed focus proximity 15, 20, 30, 50 cm
    • 1.5 m retroflective and 1 m polarized retroflective
    • 2 m through beam models
    • Amplified NPN or PNP output with NO-NC output
    • 4 wires connection with 2 m Cable
    • IP67 Plastic subminiature case
    GO TO

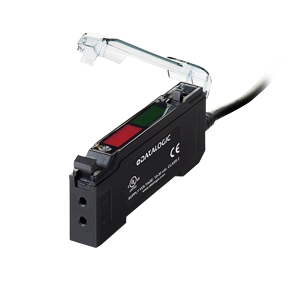

  • FIBER OPTIC

    S70

    The compact and advanced fiber optic amplifier sensors with high features, double display, high speed including IO-Link connectivity.

    • Diffuse fiber optics up to 500 mm
    • Through beam fiber optics up to 1800 mm
    • Red LED emission
    • Double 4-digit display
    • 12 bits (4096 points) resolution
    • Switching Freq. 2,5kHz Fast, Ultra-fast and 50 kHz
    • NPN or PNP output with 2 m cable or M8 connector
    • Configurable timing function for turn-ON/OFF delay
    • IP67 plastic case, fiber glass reinforced
    • Wide range of optical fibers
    GO TO

  • FIBER OPTIC

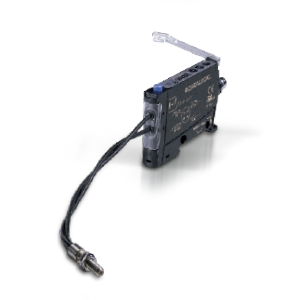

    S7

    The compact and advanced fiber optic amplifier sensors with competitive price and features, 7 segment 4 digit display, Teach in and trimmer adjustment, contrast sensitivity models are also available.

    • Red or White LED emission for contrast detection
    • 4-digit display and Teach-in or trimmer setting
    • 10 bits (1024 points) or 12 bits (4096 points) resolution
    • Switching Freq. 1kHz, Fast 5 kHz
    • NPN or PNP output with 2 m cable or M8 connector
    • Configurable timing function for turn-ON/OFF delay
    • IP67 plastic case, fiber glass reinforced
    • Wide range of optical fibers
    GO TO

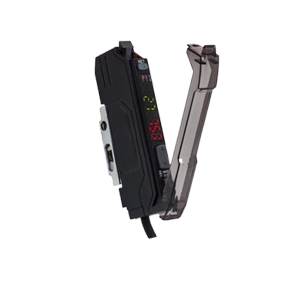

  • FIBER OPTIC

    FY

    The compact fiber optic amplifier sensors with competitive price and features, double display, high speed.

    • Red emission
    • Response time from 40µs to 16 ms
    • Four responce time select
    • Adjustment by teach-in button
    • Anti mutial interference function
    • NPN or PNP output with 2 m cable or pig-tail M8 connector
    • Configurable timing function ON/OFF delay
    GO TO

  • MINIATURE

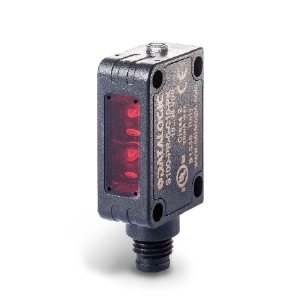

    S100

    Universal miniature photoelectric sensor with best price on the market, standard miniature dimension and universal mounting feature for quick and easy mechanical and electrical installation.

    • Through beam 12 m
    • Retroreflective 7 m
    • Polarized retroreflective 3 m and 5.5 m
    • Diffuse proximity 30 and 50 cm
    • Fixed focus 70 mm
    • Background suppression 100 mm and 200 mm
    • NPN or PNP output with L/D input
    • 2 m cable or M8 connector version
    • IP67 plastic miniature case
    • M3 x 2 slotted holes on the back side
    • M3 threaded holes on the front side
    GO TO

  • MINIATURE

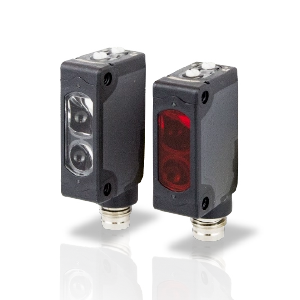

    S3Z

    High performance in standardized miniature housing. Trimer adjustment. Replaces larger sensors and fits in limited space in smaller machinery.

    • Diffuse proximity 15 or 70 cm
    • Background suppression Red LED or Laser 50-300 mm
    • Polarized RRX 4 m, Coaxial for Trasp. 2 m, Laser 10 m
    • Through-beam 15 m and Laser 30 m
    • 3 wire connection with 2 m Cable or M8 connector
    • IP67 Plastic miniature case
    • M3 threaded holes on the front side
    GO TO

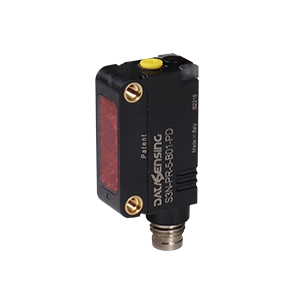

  • MINIATURE

    S3N

    Top performances in a very rugged and miniaturized standard housing.Complete solution for any detection application in any automation industry. Available with trimmer and Teach-in models with high connectivity features thanks to extended IO-Link communication.

    • Bright LED and Laser emission models
    • Teach in and trimmer adjustment models
    • Smart Background suppression functions
    • Shiny and clear object detection
    • Diffuse proximity up to 100 cm
    • LED Background supp. up to 800 mm (on White)
    • Polarized LED RRX 7 m, Laser 12 m
    • Coaxial RRX for transparent 2 m
    • Through beam LED 15 m and Laser 30 m
    • Very High speed and very low jitter
    • Connection wirh 2 m cable, pig tail and M8 connector
    • Rugged IP67 Plastic miniature case
    • Mounting threaded M3 metal inserts
    • IO-Link double channel with smart task
    GO TO

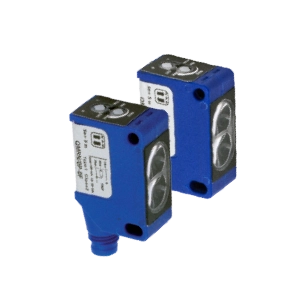

  • MINIATURE

    QM

    Wide range of models of cubic miniaturized sensors.

    • Red and infrared emission
    • Background Suppression up 400 mm
    • Diffuse up to 1.5 m
    • For transparent objects up to 4 m
    • Through-beams up to 30 m
    • PNP and NPN -NO/NC output
    • 2 m cable, M8 4 poles connectors and pig-tails M12 and M8
    GO TO

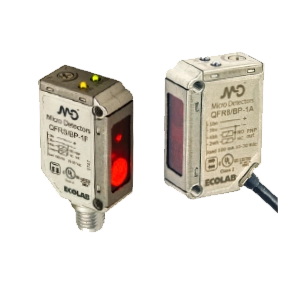

  • MINIATURE  -  IP69K

    QF

    Cubic miniaturized IP69K photoelectric sensors for harsh enviroments and washdown applications. ECOLAB tested.

    • Red and infrared emission
    • Diffuse up to 1 m
    • Background Suppression up to 200 mm
    • AISI316L Stainless steel housing
    • IP68, IP69K degree
    • 4 wires PNP or NPN NO + NC output
    GO TO

  • COMPACT  -  IP69K

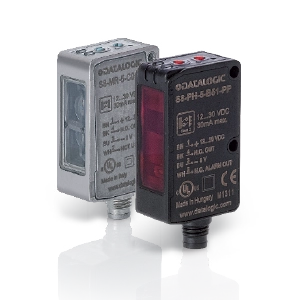

    S8

    The Compact sensor format to solve difficult detection applications (i.e. target objects that are too small, too fast, too clear, too shiny). Performance oriented family available also with AISI 316L housing models.

    • Background suppression 50-300 mm, Laser 20-200 mm
    • Background suppression for transparent objects with reflective background
    • Polarized retroreflective 5 m, Laser 10 m, Coaxial for transparent objects 2 m
    • RGB Contrast sensor 6-12 mm, 25 kHz switch. freq.
    • UV Luminescence sensor 10-30 mm, 2 kHz switch. freq.
    • NO-NC outputs with 2 m Cable or M8 connector
    • IP67 Plastic case and IP69K stainless steel version (ECOLAB and DIVERSEY)
    • Compact dimensions (14 x 42 x 25 mm)
    • Stainless Steeel AISI 316 L models ATEX 3DG
    GO TO

  • COMPACT  -  50 x 50

    S62

    Standard 50 x 50 universal sensor with improved performance and pricing. Wide range of optic functions in a compact industry format with stadard 50 x 50 mm housing, mounting holes, installation and wiring.

    • Diffuse proximity 90 or 200 cm, Laser 90 cm
    • Background suppression 30, 60, 120, 200 cm, Laser 15, 35 cm
    • Retroreflex 13 m, Polarized 8 m, Laser 20 m
    • Through beam 25 m
    • 10-30 Vdc version with NO-NC, NPN or PNP output
    • Multivoltage 24-240 Vac/24-60 Vdc with Relay output
    • 2 m cable or M12 rotatable connector
    GO TO

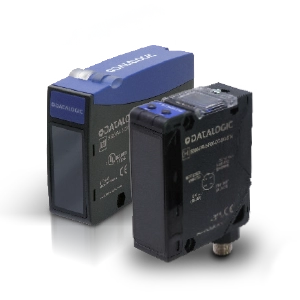

  • MAXI

    S300

    Heavy duty, multi-voltage sensors with terminal block and internal relay Durability for integration in outdoor applications and harsh environments.

    • Diffuse proximity 2 m (-PA), 5 m (-PR)
    • Background suppression 2 m (-PA), 2.5 m (-PR)
    • Polarized retroreflex 7 m (-PA), 22 m (-PR)
    • Through beam 50 m (-PA), 60 m (-PR)
    • 10-30 Vdc version with NPN or PNP outputs
    • Multi-voltage with Relay output and terminal block
    • Configurable timing function for turn-ON/OFF delay
    • IP67 plastic case, fiber glass reinforced
    • I/O link connection
    • M3 x 4 slotted holes on the back side
    • M3 threaded holes on the front side
    GO TO

  • FORK

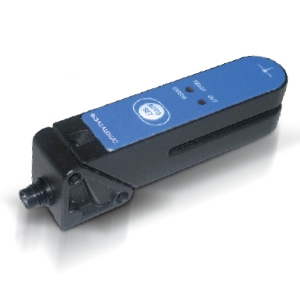

    SR21

    Optical high-resolution, very fast response time slot fork sensor for precise positioning, applying and printing of labels, even when integrated in fast machinery and processes.

    • 25 kHz high switching frequency
    • IR or red/green light models
    • Detection of labels (SR21-IR) or print register mark on transparent films (SR21-RG)
    • 4 wire NPN and PNP output
    GO TO

  • FORK

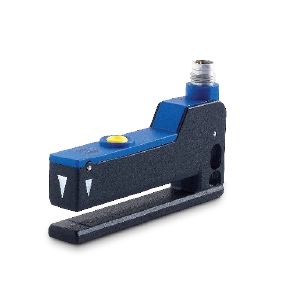

    SR23

    Optical high-resolution, very fast response time slot fork sensor for precise positioning, applying and printing of labels, even when integrated in fast machinery and processes. Easy integration in any machinery with standard and bottom dove tail mouniting

    • Multilayer labels detection
    • Up to 0,5 mm of minimum size labels/gap
    • 5 mm slot width
    • 50 mm slot depth
    • Dynamic or static setting through single push-button
    • 12 kHz switching frequency
    • Compact and robust housing, IP65
    • M8 connector or 2 m cable models
    • PNP or NPN models
    GO TO

  • FORK

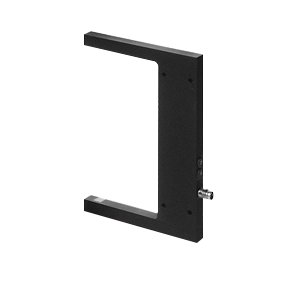

    SRF

    Optical fork sensors series with several opening detection windows, high detction precision with LED emission and fast and precise Laser emission , for detection of caps, bottles, vials and generic objects.

    • Red, infrared and laser emission
    • Wide range of models, width 2 mm up 180 mm and depth up 120 mm
    • Minimum object detection up 0.05 mm (laser)
    • Dynamic and static Teach-in via cable or by buttons
    • NPN or PNP output with M8-4 poles
    • NPN or PNP Lo/Do output with M8 3 poles
    GO TO

  • FORK

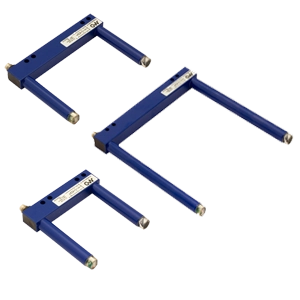

    FC5

    Optical slot sensors without adjustment for object detection.

    • Red emission
    • Plug and play, without adjustment
    • Wide range of models, width up 180 mm and depth up 120 mm
    • Minimum object detection up 0.8 mm
    • NPN or PNP Lo/Do output with M8 3 poles
    GO TO

  • FORK

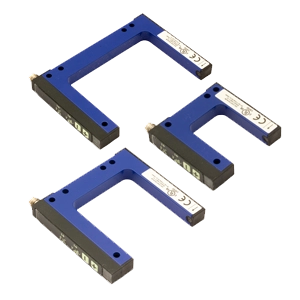

    FC6

    Optical slot sensors with high precision, for detection of objects, labels and trasparent film.

    • Infrared and laser emission
    • Wide range of models, width 2 mm up 120 mm and depth up 95 mm
    • Minimum object detection up 0.05 mm (laser)
    • Switching frequency 10 kHz
    • Dynamic and static Teach-in by buttons
    • NPN or PNP output with M8-4 poles
    GO TO

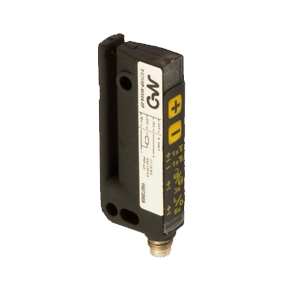

  • FORK

    FC7

    Optical slot sensor with high precision, for detection of opaque labels.

    • Red emission
    • Width 3mm and depth 42 mm
    • Minimum label detection up 2 mm with gap between two labels 2 mm
    • Dynamic and static Teach-in via cable or by buttons
    • Switching frequency 10 kHz
    • NPN or PNP output with M8-4 poles
    GO TO

  • CONTRAST  -  COLOR

    TL46

    High resolution, White, Red or RGB emission, very fast response time Thanks to its new Low jitter models performs very precisely in packaging machinery and synchronization based mark detection, even when used in extremely fast processes.

    • Operating distance 6-12 mm (80 mm with acc. lens)
    • Bright light emission with Red, White, or RGB LED
    • Mark/Background automatic, manual and dynamic setting
    • Contrast / Color detection mode
    • Trimmer or Teach-in setting with 4 digit display version
    • Very fast switching frequency 15, 20, 25, 30 or 50 kHz
    • Very high precision model with less than 7 us jitter
    • Extended Smart functions and diagnostic with accelerometer models
    • Configurable NPN/PNP and 0-5 V analogue output
    • Standard metal case with IP67 protection and IP69K
    GO TO

  • LUMINESCENCE

    LD46

    UV high power emission LED with high sensitivity Precise packaging machinery synchronization or material sorting and selection based on luminescent “invisible” mark detection.

    • High power UV light emission at 375 nm wavelength
    • Operating distance 10-20, 20-40, or 30-50 mm
    • Teach-in setting and manual threshold adjustment
    • 5 segments bar graph for sensitivity level indication
    • Fast response time 250 μs and switching freq. 2 kHz
    • NPN and PNP outputs and and 0-5 V analogue output
    • Standard metal case with IP67 protection
    • Soiling indicator and Alarm Output
    • Sturdy metal Die-cast zinc IP67 housing
    GO TO

  • MICROMETRIC

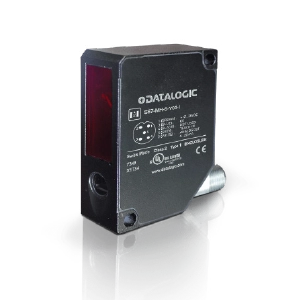

    S67-Y

    Class 2 laser distance sensor based on triangulation with a resolution of 10 um. S67-Y is available as long range (Y13) or Short range (Y03) with analog output.

    • Operating distance 50…300 mm (Y03)
    • Operating distance 100…600 mm (Y13)
    • Resolution of 10 um @ 50mm. distance on white 90% remission (Y03)
    • Response time less than 0.9 ms (Y03)
    • Linearity error of +/-0.03 mm @ 50 mm range (Y03)
    • Analog Voltage models with 0V-10V protected output
    • Analog Current models with 4-20 mA protected output
    • IP67 compact metal housing
    GO TO

  • DISTANCE MEASUREMENT

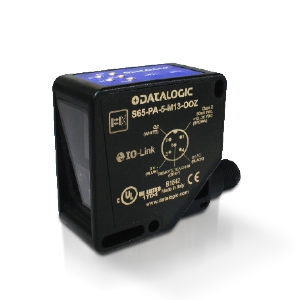

    S65-M

    Cost effective Long Range Background Suppressor with Time Of Flight (TOF) technology and Infrared emission in a compact and standard 50 x 50 sturdy housing. Equipped by a powerful green pointer for easy target alignment.

    • Long Range background suppression detection up to 5 m
    • Cost effective solution for precise and reliable detection
    • Risk-free Infrared LED emission and embedded green LED pointer
    • Glossy and clear object surface detection model available
    • Two independent fully programmable outputs
    • NPN/PNP or IO-Link connection models
    • Rugged plastic housing in compact 50 x 50 x 24 mm format
    • Standard M12 8-poles connector
    GO TO

  • DISTANCE MEASUREMENT

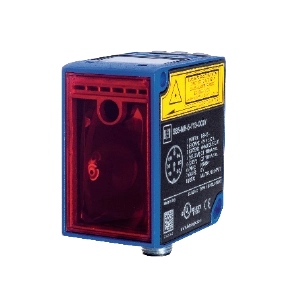

    S85

    Long range distance sensor with Time Of Flight technology in diffuse mode. High resolution and accuracy available in two models up 10 m. and up to 20 m. Graphic display model available with Push button TEACH IN Adjustment in a compact sturdy metal housing.

    • Time Of Flight (TOF) sensor with Red Laser emission
    • Detection and measurement range up to 10 or 20 m
    • 1 mm resolution/repeatability and 7 mm accuracy
    • 4-20 mA or 0-10 V scalable analog output and 2 push-pull digital outputs
    • RS485 serial interface
    • Built-in graphic display and push buttons
    • PNP switching output and 0-10 V analog output
    GO TO

  • AREA

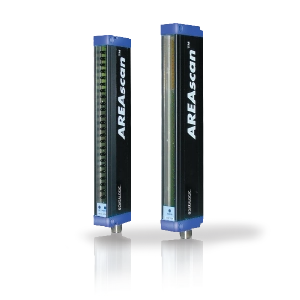

    AS1

    High resolution area sensor for small objects crossing the area, with several parallel and crossed beam detection functions even in a random positions.

    • Crossed beam area sensors
    • 100 mm controlled height
    • Adjustment trimmer
    • Optical or wire synchronism
    • Scan Mode input
    GO TO

  • AREA

    DS1

    High resolution measurement light grid sensor for small objects crossing the area, even in a random positions. Different Available with several controlling area height, response time and resolutions

    • 4 mm resolution and 1 ms response time
    • 100 to 300 mm controlled height
    • Operating distance up to 4 m
    • PNP digital and 0-10 V analog outputs
    • Adjustment trimmer
    GO TO

  • AREA  -  IP69K

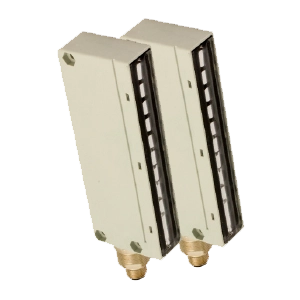

    BX04-BX10

    Compact Area Sensors. Detection of small object in the controlled area, crossed beams.

    • IP67 protection degree (IP69K special model)
    • Complete protection against electrical damages
    • Detection of objects with irregular shape
    • Maximum distance 6 m
    • ATEX models, cat. 2 and cat. 3, available on request
    • LED indicators
    • Crossed beams detection
    GO TO

  • AREA  -  IP69K

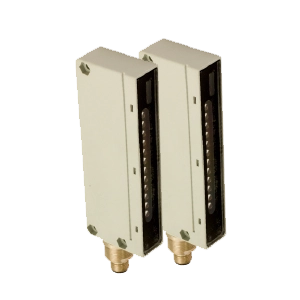

    BX80

    Compact Area Sensors. Detection of small object in the controlled area, crossed beams.

    • Controlled height 70 mm
    • Operating distance up to 2.5 m
    • Sensitivity adjustment
    • IP67 protection degree (IP69K Versions with metallic enclosure for high-duty use and glass optical window
    • Syncronization by cable
    GO TO

  • AREA

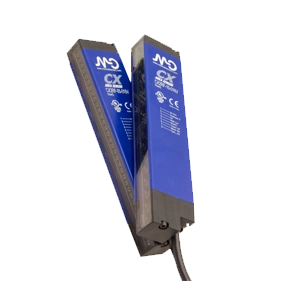

    CX0

    Slim area sensors, detection with total crossed beams.

    • Total crossbeam through all the optics
    • Crossed area 160 and 320 mm
    • Pitch 5 mm and 10 mm
    • Operating distance up to 3 m (for 5 mm pitch) and 6 m (for 10 mm pitch)
    • Teach-in adjustment: 2 levels
    • NO/NC configurable
    GO TO

  • AREA

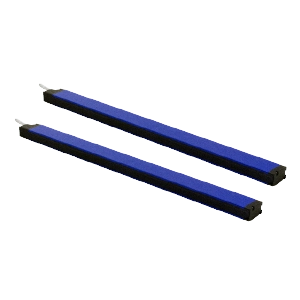

    CX2

    Slim Area Sensors, detection and measurement with crossed and parallel beams.

    • Parallel beams and floating crossbeams with variable amplitude
    • Synchronization by cable. Pitch 5, 10 and 20 mm
    • Control height up 480 mm (pitch 5 mm) and up 960 mm (pitch 10 mm and 20 mm)
    • Maximum operating distance up to 6 m (for 5mm pitch) and 6m (for 10 mm and 20 pitch)
    • Digital outputs NPN and PNP ; analogue current output (4…20 mA) and analogue voltage output (0..10V), mix outputs : digital PNP and analogue voltage output (0..10 V)
    • Adjustment by teach-in, 2 levels of adjustment
    • Blanking function . Available analogue versions TOP BEAM
    GO TO

  • AREA

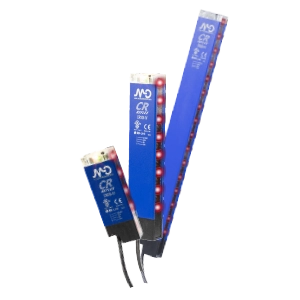

    CR

    Retroreflective Polarized Area Sensors.

    • Control heights from 69 mm to 309 mm
    • Sensing distance up to 4.5 m
    • Adjustment with Teach-in button
    • Optical pitch 10 mm
    • PNP and NPN outputs
    • Blanking function
    GO TO

  • SMART SENSOR

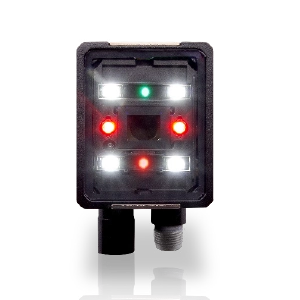

    SMART-VS

    The smart vision sensor enabled with A.I. and empowered by machine learning assisted setting algorithms. Simply clever solution for all your presence and orientation object detection applications.

    • SMART-VS+ model available to handle more images and more connectivity features
    • Machine Learning Assisted Setting
    • No vision Tools programming required
    • No need of skilled installers just photosensor like setting
    • Deterministic response time 50 ms (Standard model -MR-)
    • Deterministic response time 20 ms (PLUS model -PL- depending on n. of images)
    • 50...150 mm detection distance
    • TEACH Button and comprehensive UI with 5 status LEDs
    • Electronic focus control
    GO TO
