| Nominal sensing distance | 4…25mm |
| Thermal drift of Sr | < 20% |
| Repeat Accuracy | 5% |
| Sensitivity adjustment | Yes |
| Hysteresis | ≤ 20% |
| Output type | PNP |
| Output Function | NO + NC |
| Switching frequency | 50Hz |
| Operating Voltage | 10...40Vdc |
| No-Load supply current | ≤ 10mA |
| Load current | ≤200mA |
| Leakage current | ≤ 10μA |
| Output voltage drop | 2,5Vmax @IL=200mA |
| Max ripple content | ≤10% |
| LED indicators | Yellow LED (object detected) |
| Time delay before availability | ≤100ms |
| Short-circuit protection | Yes, autoreset |
| Reverse Polarity Protection | Yes |
| Impulsive Overvoltage Protection | Yes |
| Mounting | Shielded/Unshielded |

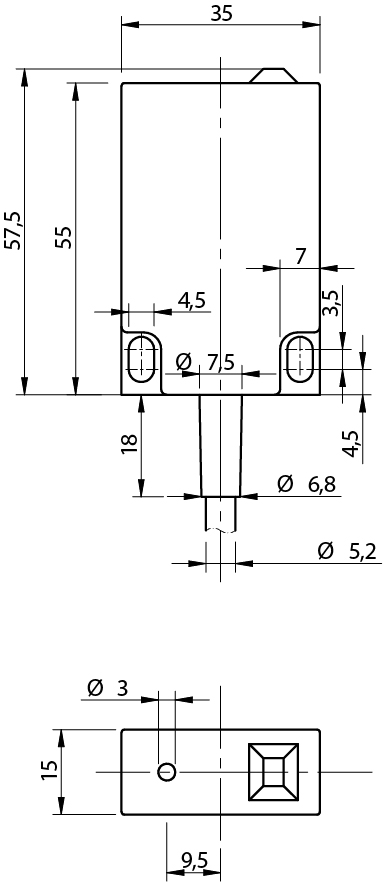

| Dimensions | 55x35x15mm |
| Weight | 150g |
| Housing Material | PC |
| Connections | 2m PVC cable |
| Active Head Material | PC |
| Operating temperature | -25°C…+80°C (without freeze) |
| Storage temperature | -40°C…+85°C |
| Diameter/Dimension | 55x35x15mm |
| Approvals | CE cULus |
| EMC compatibility | IEC 60947-5-2 |
| Degree of protection | IP67 |
| Supplied Accessories | screw driver |
| Dimensions | 55x35x15mm |
| Operating Temperature | -25°C…+80°C (without freeze) |
| Mechanical Protection | IP67 |
