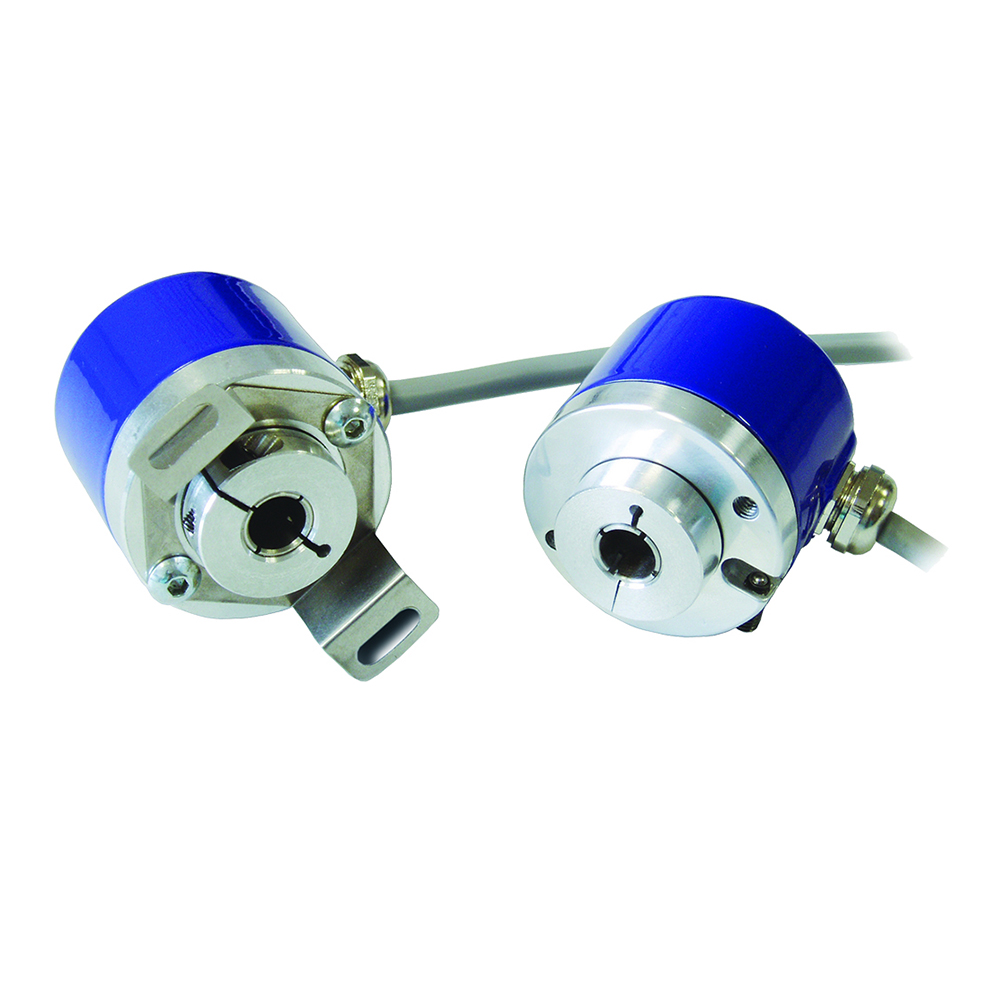

MDI 38 F / G

Incremental Encoder 38F/G, Blind hollow shaft

Miniaturized ø 38 encoder series for general factory automation applications, small AC motors and gearmotors.

Overview

  • 3 channel encoder (A / B / Z) up to 2500 ppr
  • Power supply up to +30 VDC with several electronic outputs available
  • Up to 220 kHz output frequency
  • Cable output, connectors available on cable end
  • Metal cover for high IP mechanical protection
  • Blind hollow shaft diameter up to 10 mm
  • Mounting by stator coupling or anti-rotation pin

Technical Features

Detection properties
Resolution da 100 a 2500 ppr
counting direction A leads B clockwise (shaft view)
Application
max output frequency 220 kHz
Outputs
Output type push-pull / line driver
Electrical data
Operating Voltage 5/30 = 4,5 ... 30 V DC (reverse polarity protection)
No-Load supply current 800 mW
max load current 20 mA / channel
Mechanical data
Weight 150 g
Housing Material PA66 glass fiber reinforced
Operating temperature -20° ... +70°C
Storage temperature -25° ... +70°C
max shaft load 5 N assiale / radiale
Shaft diameter ø 6* / 8* / 10 mm
max rotation speed 3000 rpm
moment of inertia 0,8 x 10-6 kgm2
starting torque at 20°c < 0,01 Nm (IP 64) < 0,06 Nm (IP 65)
shaft material 1.4305 / AISI 303 stainless steel
bearings 2 ball bearings
bearings life 109 revolutions
Test/Approvals
EMC compatibility IEC 61000-6-2 IEC 61000-6-4
Shocks and vibrations 10 G, 10 ... 2000 Hz (IEC 60068-2-6)
Degree of protection IP 64 (IEC 60529) IP 65 (IEC 60529)
Generical Data
Operating Temperature -20° ... +70°C
Mechanical Protection IP 64 (IEC 60529) IP 65 (IEC 60529)
