E1xx/M1xx

601-0457

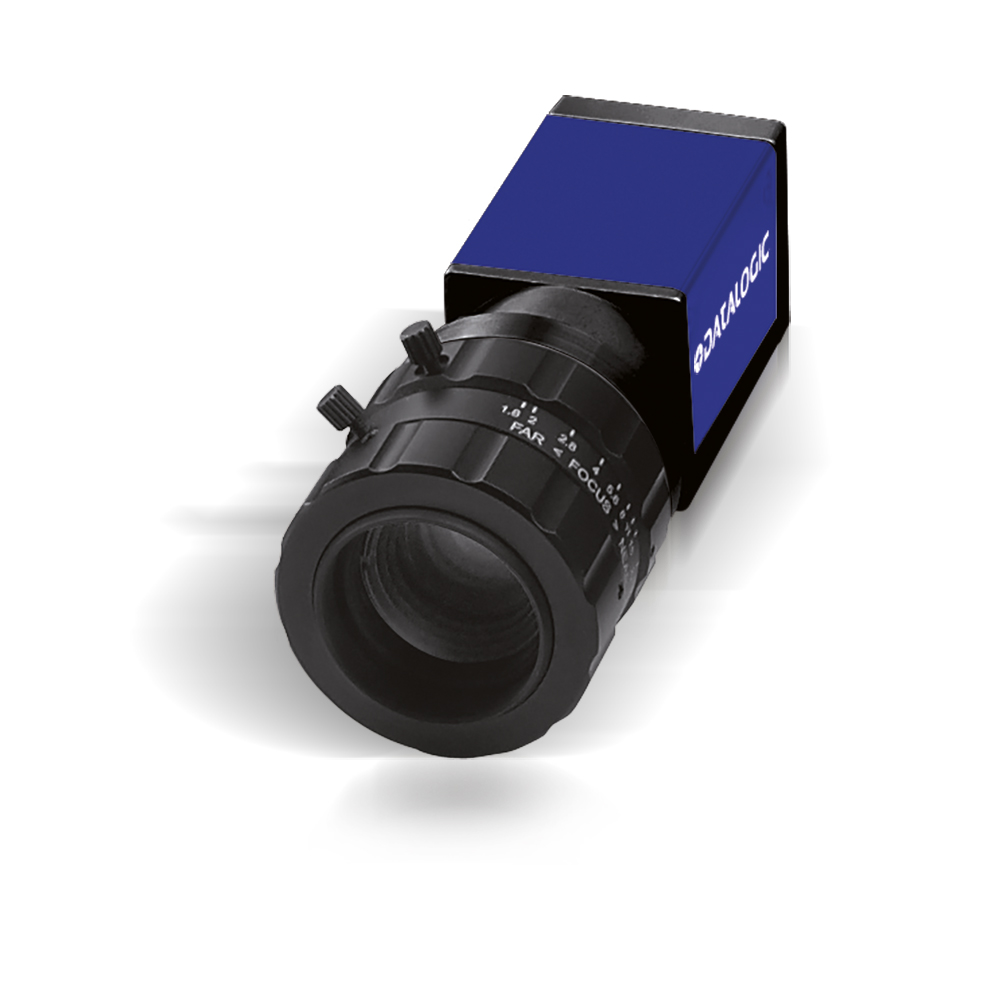

Camera, M195C, Gig-E, 2048 x 2048, 25 FPS, Color, 1" CMOS***
Camera, M195C, Gig-E, 2048 x 2048, 25 FPS, Color, 1" CMOS

Area scan cameras

Overview

  • VGA to 5MP resolution, in both grayscale and color
  • CMOS image sensors for high speed performance
  • Power over Ethernet (PoE) guarantees minimum wiring and easy installation
  • Compact housing (as small as 29 x 29 x 60 mm) enables mounting in space-constrained locations
  • High Frame rates to keep up with high speed inspections
  • Trigger and strobe I/O provide outstanding integration flexibility

Technical Features

Application
Description Camera unit
Mechanical data
Lens mount C-Mount
Test/Approvals
Approvals CE
Generical Data
Camera Interface GigE
Power Requirements PoE or 12 VDC
Dimensions 42 mm x 29 mm x 29 mm
Operating Temperature 0 … 50°C
Mechanical Protection IP30
Resolution 2048x2048
Imager 1" CMOS
Shutter Global
Frame rate (FPS) 25
PoE Yes
Pixel size 5,5 µm
Optical Data
Mono/Color Color

Downloads for CAM-M195C-GE-2048x2048-25
