FAI7/BP-0E

Photo.M18,PNP-NO+NC,M12 plug,Diffuse

M18 photoelectric sensors DC

  • Complete range of M18 sensors with 10...30 Vdc power supply
  • Axial and radial optic with flat surface
  • Retro-reflective models for transparent objects detection, with red emission IP67 protection degree
  • Metallic or plastic housing
  • Sensitivity adjustment available for all models
  • Total protection against any type of electric damages
  • Approvals: CE and cULus listed

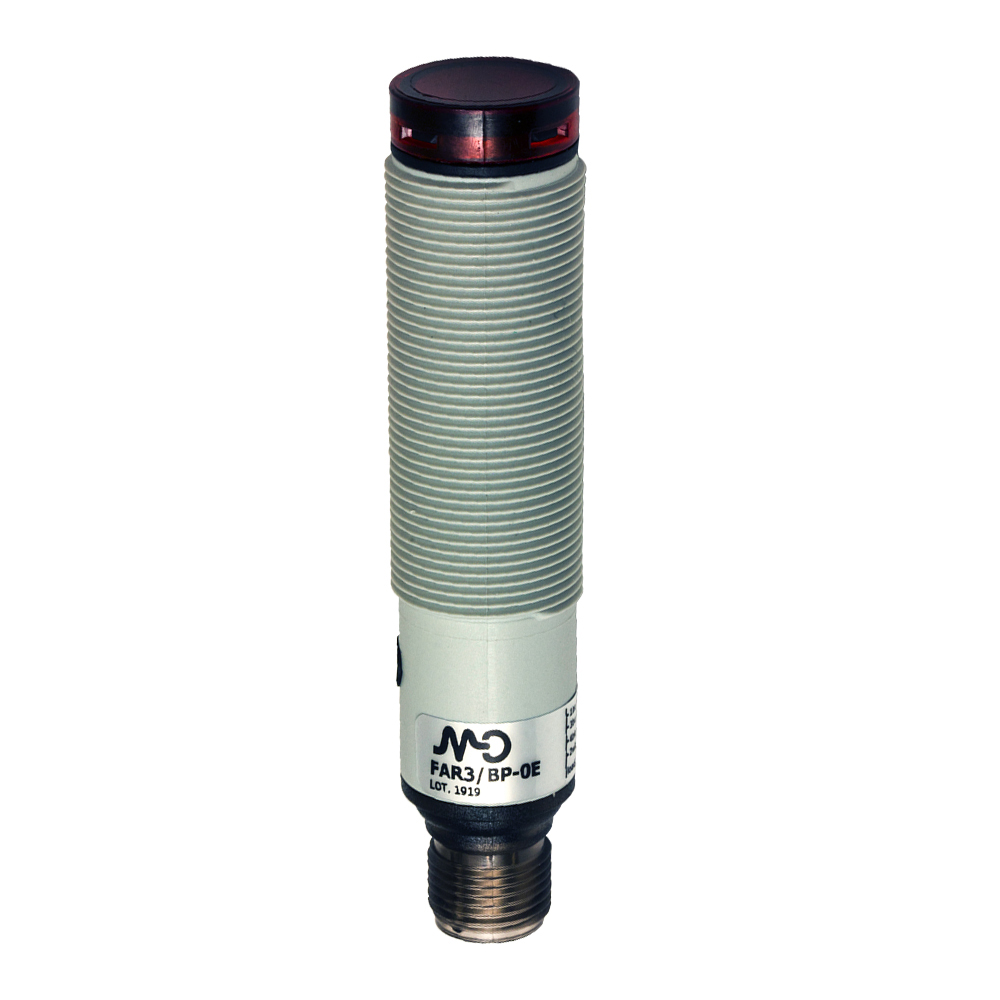

Indicative image

Technical features

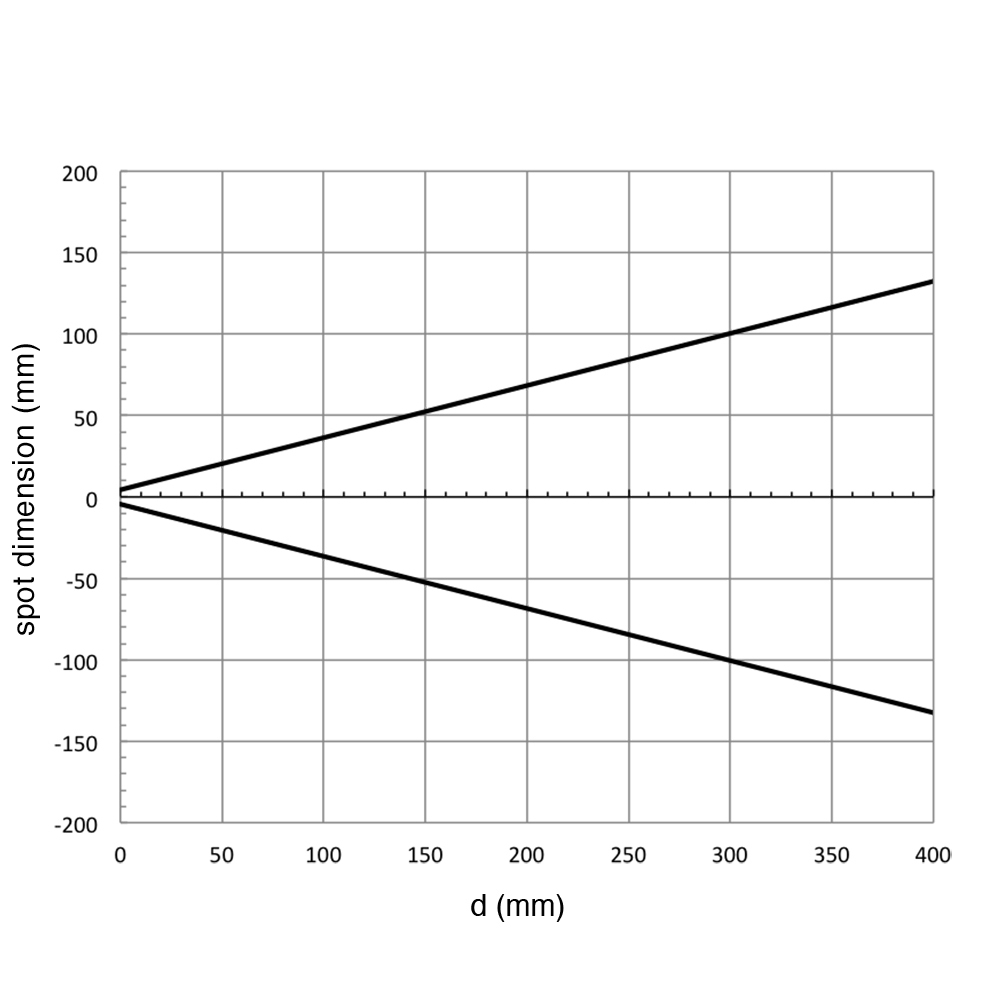

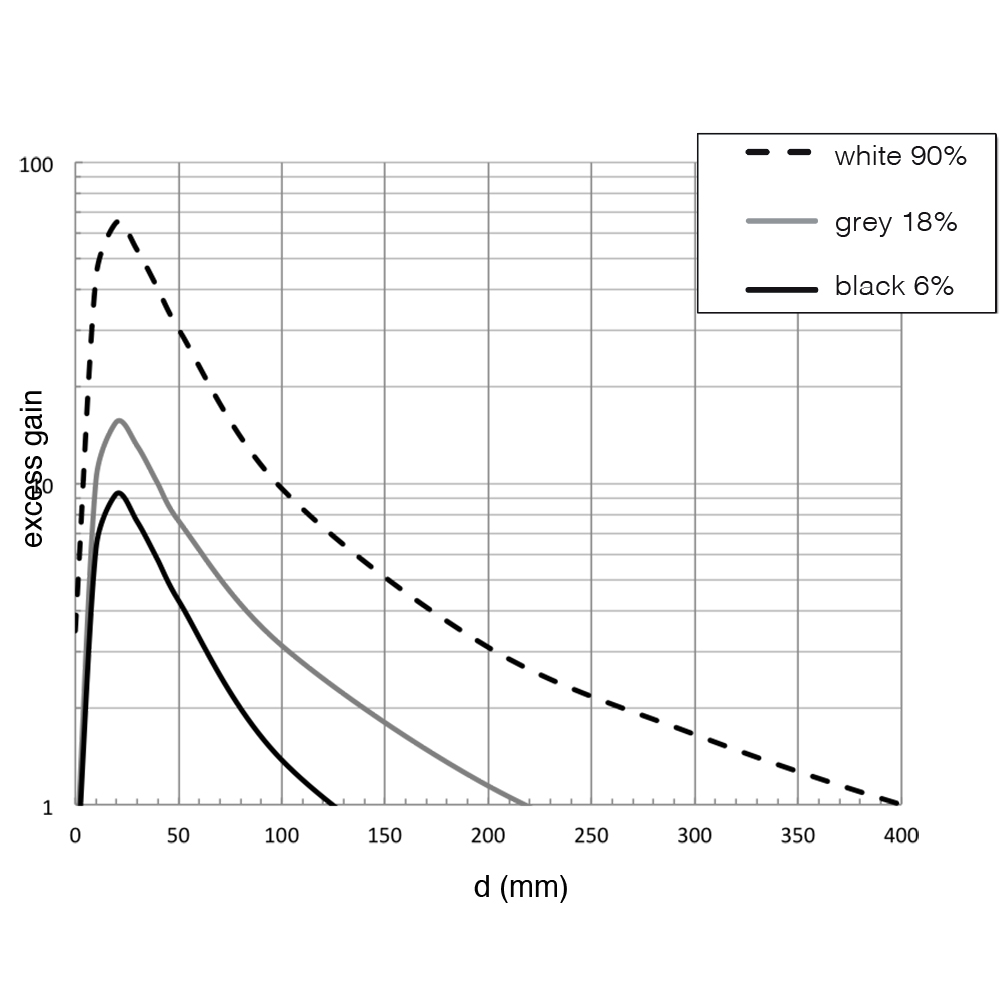

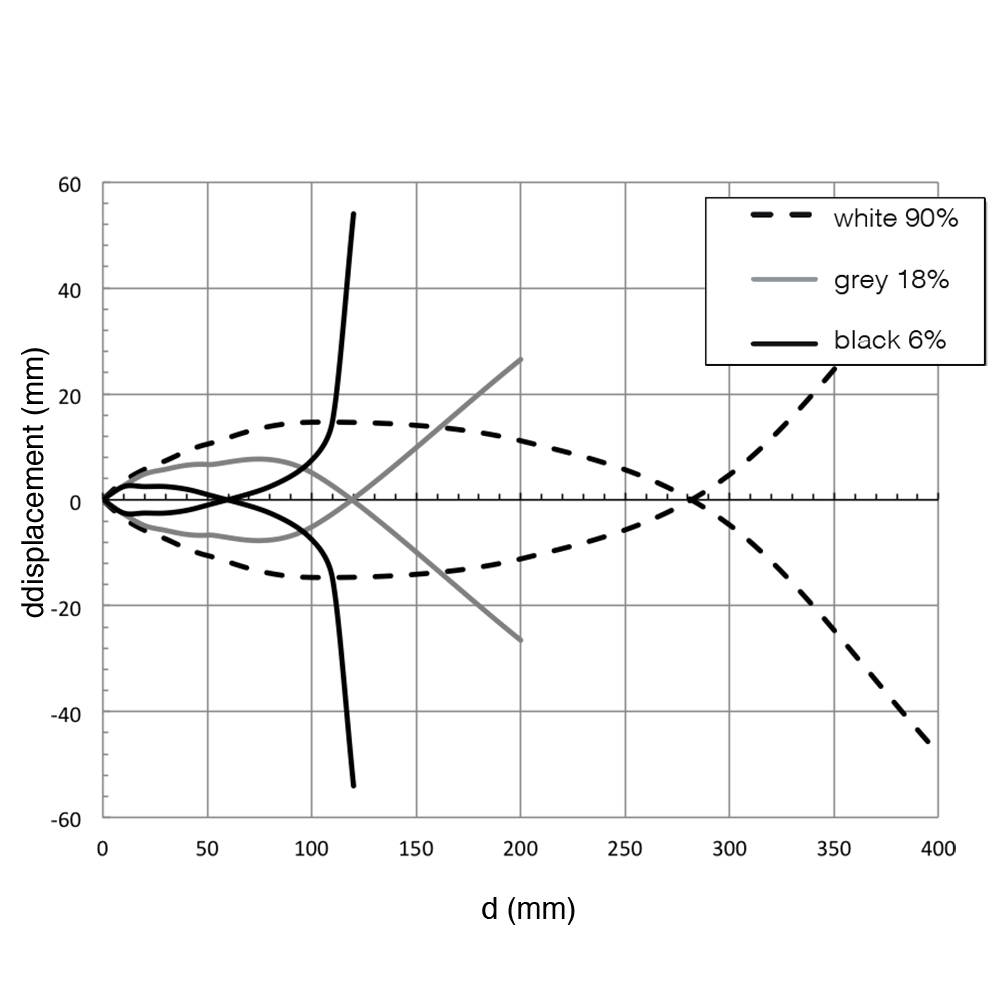

Detection properties

Nominal sensing distance 400mm
Thermal drift of Sr ≤10% Sr
Repeat Accuracy 5%
Sensitivity adjustment Trimmer

Application

Function Principle Diffuse reflection (medium distance, ≤600mm)
Notes white target Kodak 90% 200 x 200mm
Optic position Axial

Outputs

Output type PNP NO+NC
Output Function NO+NC
Switching frequency 250Hz
Response time 2ms

Electrical data

Operating Voltage 10…30VDC
No-Load supply current ≤ 30mA
Load current ≤100mA
Leakage current ≤10μA
Output voltage drop ≤2V@Iload=100mA
Max ripple content ≤10%
LED indicators Yellow (Lon) or output status Lo/Do
Time delay before availability ≤200ms
Short-circuit protection Short circuit (autoreset), Overvoltage
Reverse Polarity Protection Polarity inversal, Inpulsive voltage
Emission LED Infrared (880nm)
Interference to external light 3000lux (incandescent lamp), 10000lux (sunlight)

Mechanical data

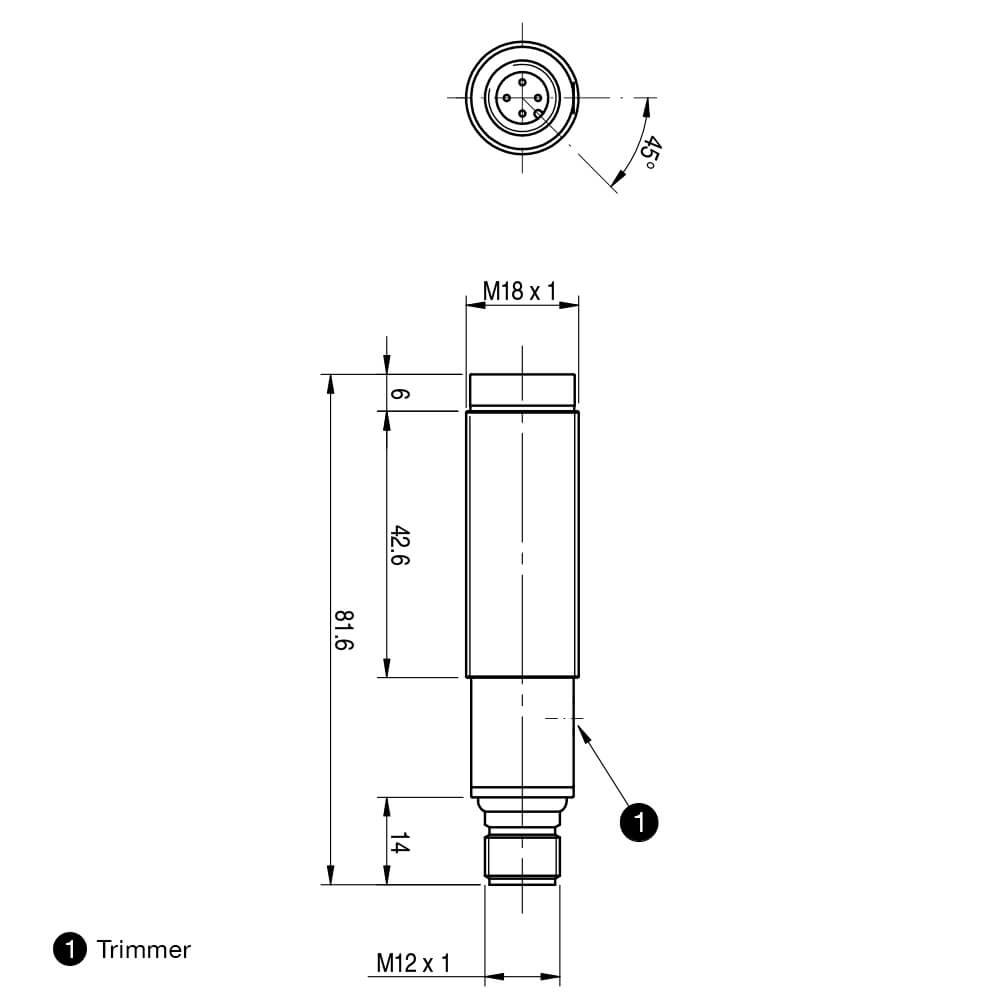

Dimensions M18 x 1 /L =81,6mm
Weight 30g
Housing Material PBT / PC plug
Connections M12 plug
Active Head Material PC
Tightening torque 1Nm
Operating temperature - 25°C…+ 70° C (Without freeze)
Diameter/Dimension M18

Test/Approvals

Approvals CE cULus
EMC compatibility EN 60947-5-2
Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection IP67

Accessories

Supplied Accessories nuts M18 x 1, screwdriver

Generical Data

Dimensions M18 x 1 /L =81,6mm
Operating Temperature - 25°C…+ 70°C (Without freeze)
Mechanical Protection IP67
