UH

UHZ/AP-0A

Ultra.20x30x12,PNP-NO,Cable,Emitt+Receiv

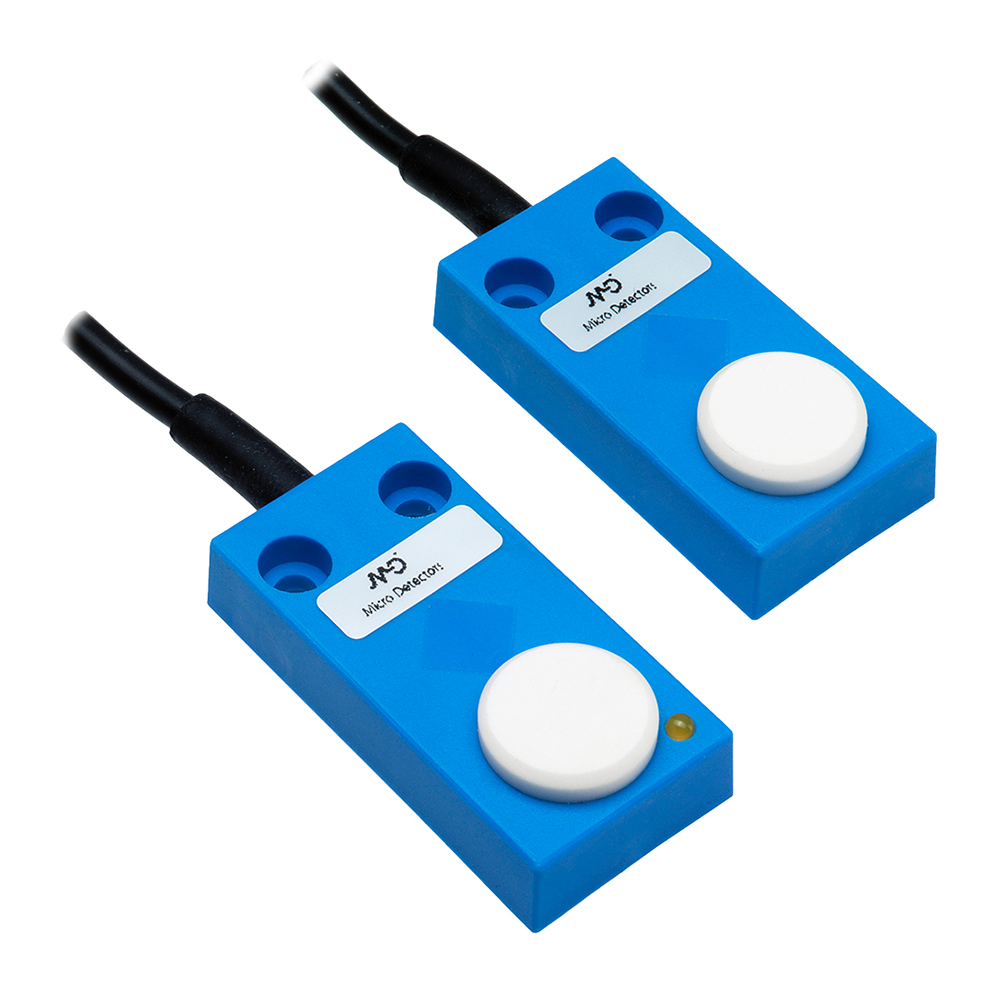

Ultrasonic sensor cubic E +R port. 300 mm PNP NO cable 2m 90°

Cubic through beam ultrasonic sensors

Overview

  • Total protection against any type of electric damages
  • Plastic housing
  • IP67 protection degree
  • Approvals: CE

Technical Features

Detection properties
Nominal sensing distance 300mm
Beam angle ± 8°
Sensitivity adjustment No
thermal compensation Yes
Minimum sensing distance (blind zone) 0mm
Application
Function Principle Emitter + Receiver
Outputs
Output type PNP
Output Function NO
Switching frequency 500Hz
Response time 1ms
Electrical data
Operating Voltage 19 - 30Vdc
Load current 40mA
Leakage current < 10µA
Output voltage drop < 2,5V
Max ripple content < 10%
LED indicators Yellow LED (output active or incorrect alignment)
Time delay before availability < 200ms
Short-circuit protection Yes
Reverse Polarity Protection Yes
Impulsive Overvoltage Protection Yes
Mechanical data
Dimensions 24 x 30 x 15mm
Weight 100g
Housing Material PBTP
Connections 2m PVC cable
Active Head Material ceramics
Operating temperature - 15°C…+ 60°C
Storage temperature - 25°C…+ 75° C (without freeze)
Transducer Frequency 300KHz
Diameter/Dimension Cubic
Test/Approvals
Approvals CE
EMC compatibility IEC 60947-5-2
Shocks and vibrations IEC EN 60947-5-2 / 7.4
Degree of protection IP67
Generical Data
Dimensions 24 x 30 x 15mm
Operating Temperature - 15°C…+ 60°C
Mechanical Protection IP67

Connections

Eletrical diagram

Others

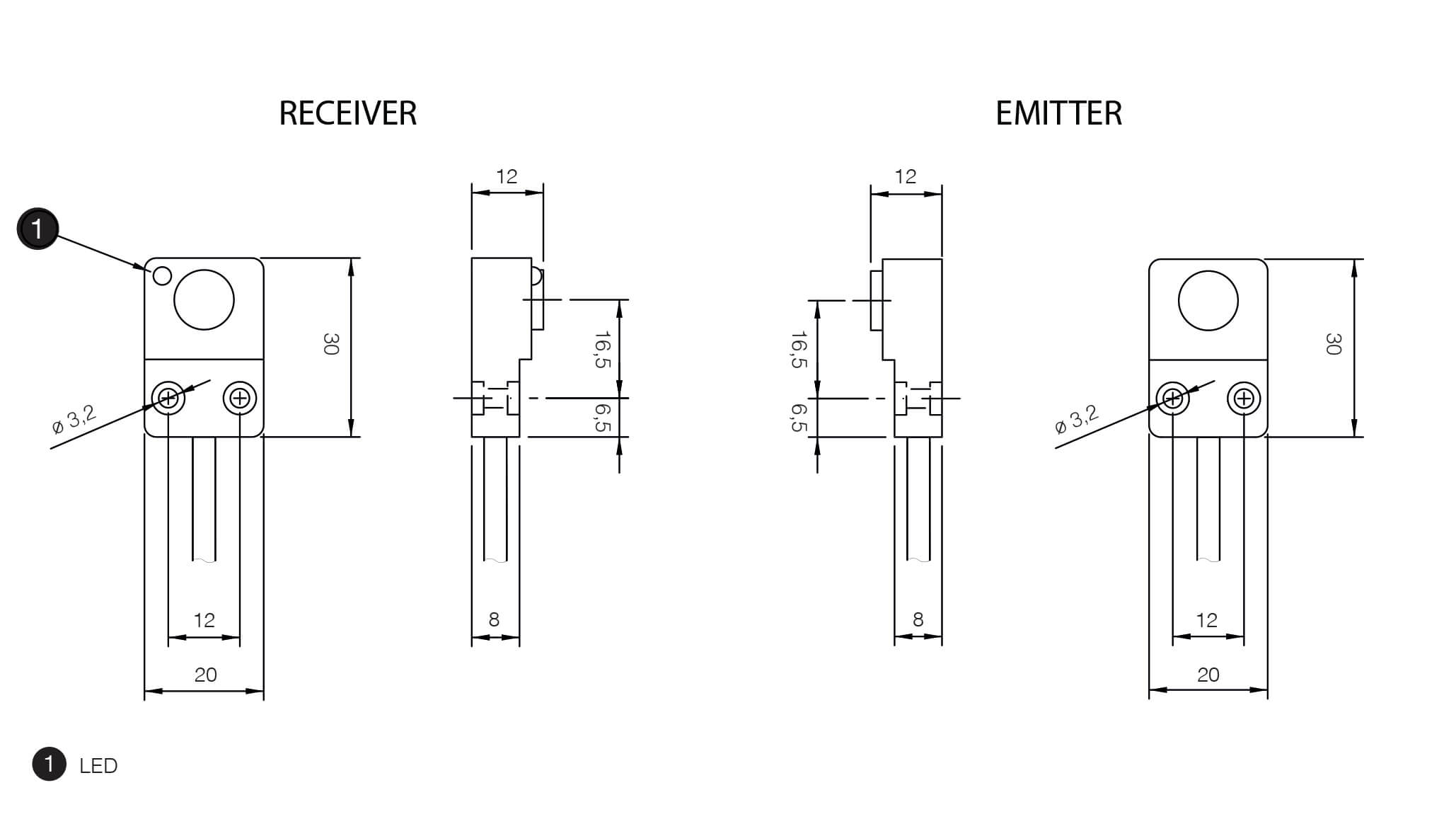

Dimensions
