| Available functions | Short circuit protection - Sleeping mode - Positive pulse |

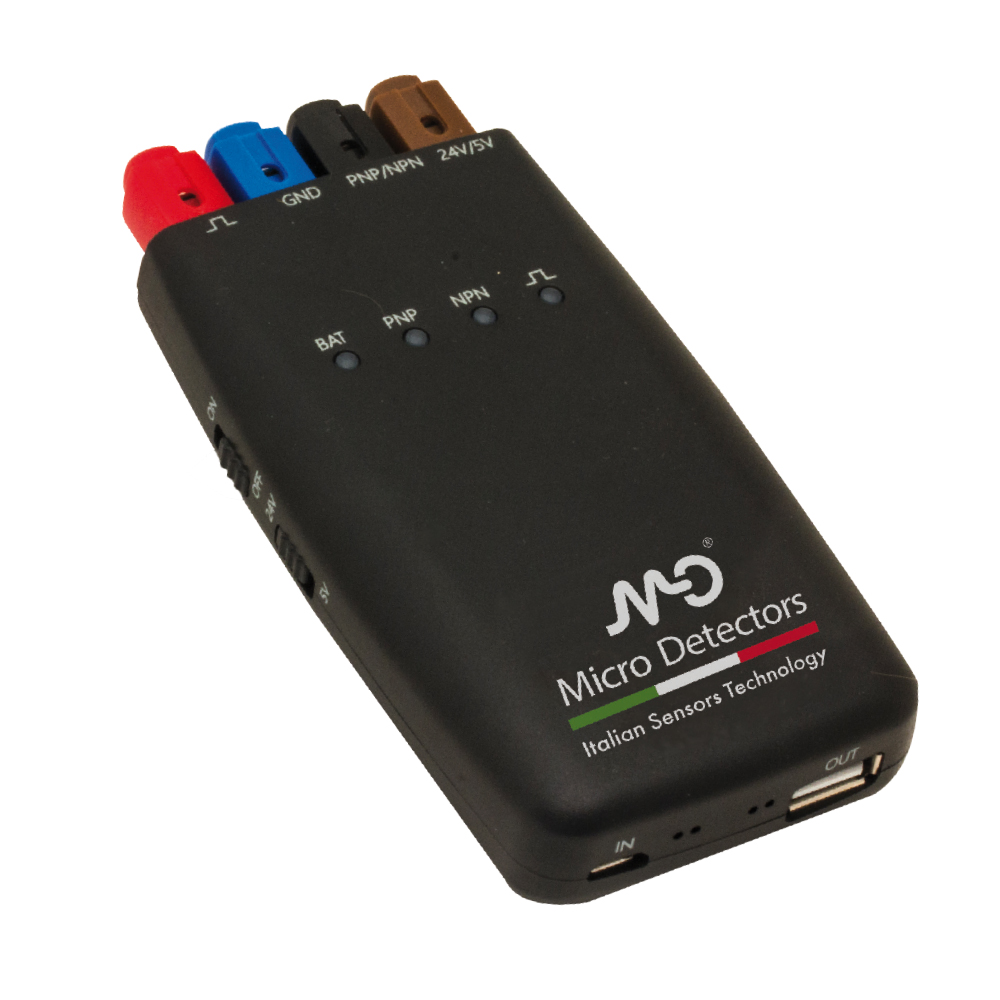

| Description | DC sensors tester. |
| Usable with | Accessories suitable for all types of photoelectric and proximity sensors |
| Sensor ouput type detection | NPN / PNP (Automatic detect) |
| Functions | Sensor tester |
| Output voltage | 4,8 … 5,2 V (OUT + 5V) 19 … 24,5V (OUT + 24V) 4,8 … 5,2 (USB) |
| Output current for sensors | ≤ 200mA (@5V) ≤ 150mA (@24V) |
| Battery capacity | 2500 mAh |
| Operating time | 10h (@24V, 15mA) |
| Charging time | ≤ 6h |
| Battery | The product contains a non removable Li-ion battery. For the delivery of the product, follow the National and IATA regulations. |

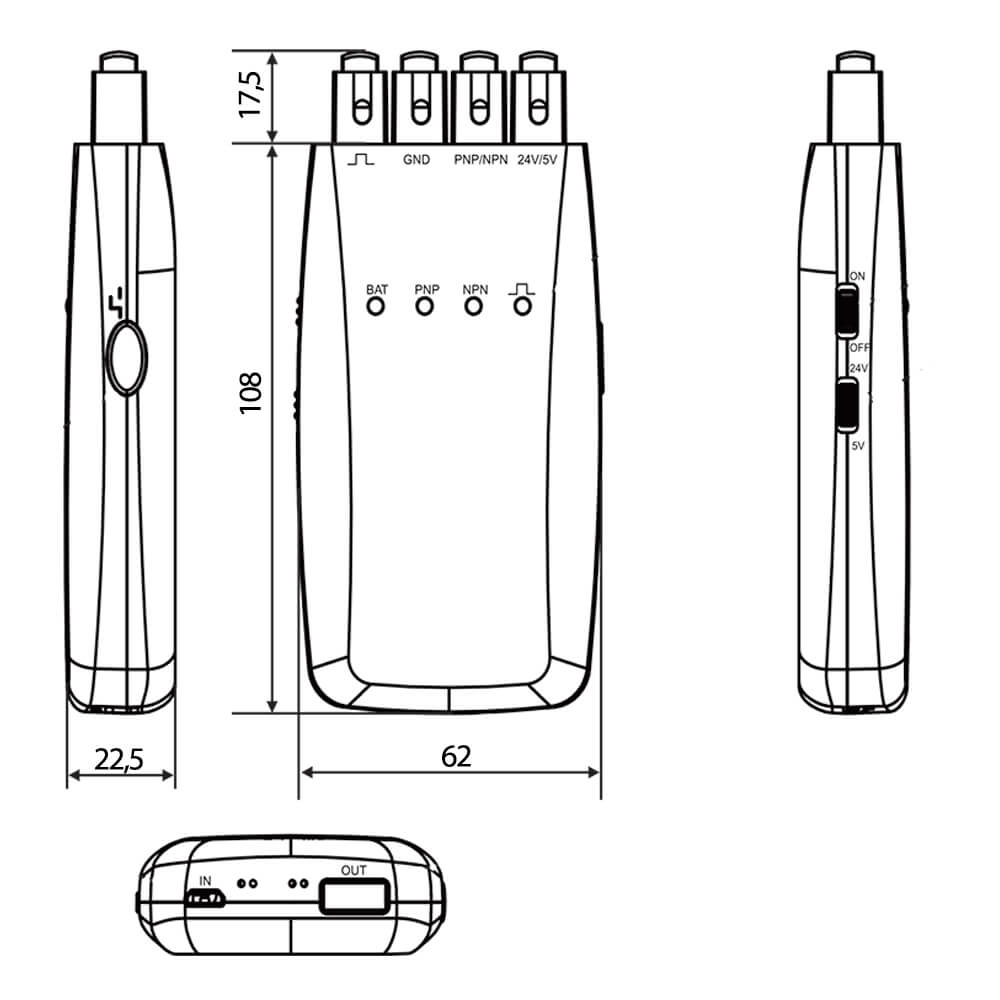

| Dimensions | 124x22x23mm |
| Weight | 190g |
| Operating temperature | -10°C … +45°C |
| Dimensions | 124x22x23mm |
| Operating Temperature | -10°C … +45°C |
