| Nominal sensing distance | 3m (SSU), 8m (SSG) |
| Thermal drift of Sr | ≤10% Sr |
| Repeat Accuracy | 5% |
| Sensitivity adjustment | No |
| Function Principle | Emitter |
| Emitter/Receiver | Emitter |
| Optic position | Axial |
| Output type |
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 25mA |
| Max ripple content | ≤10% |
| LED indicators | Yellow(powerON) |
| Time delay before availability | ≤200ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED Red (660nm) |
| Impulsive Overvoltage Protection | Yes |

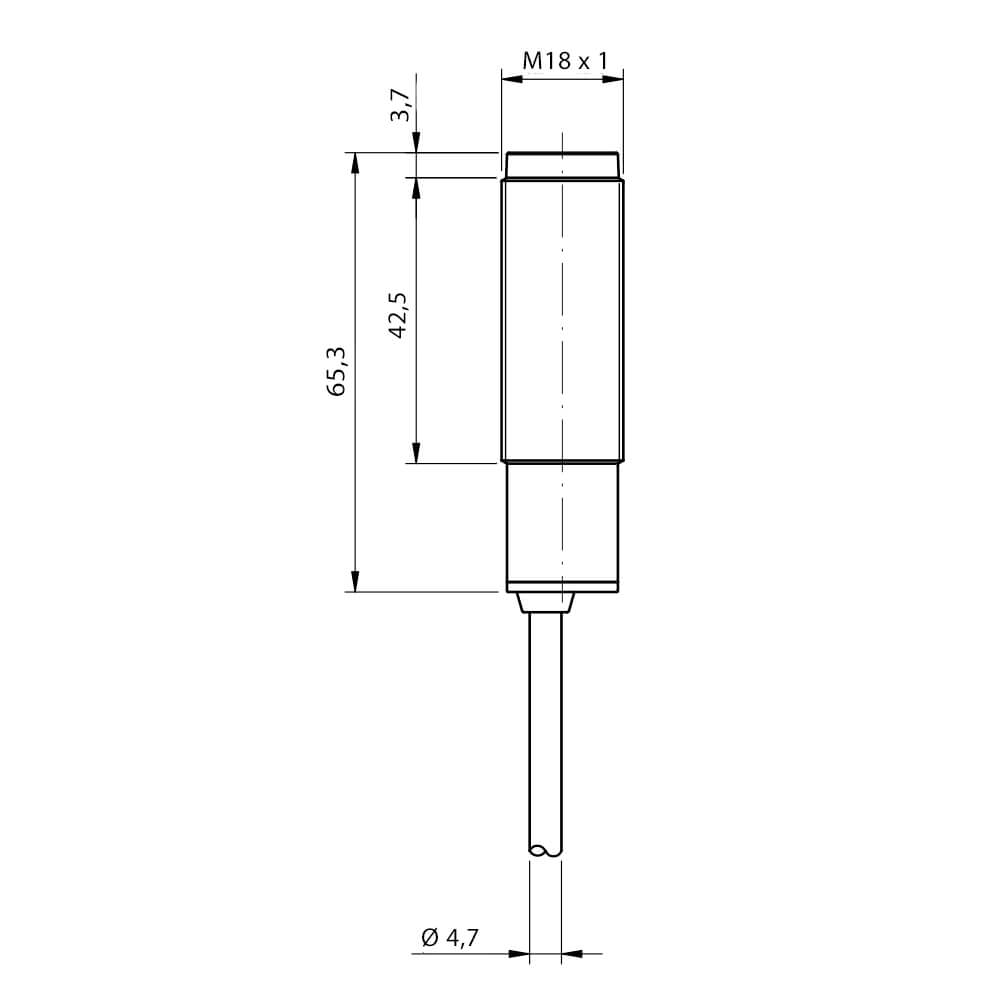

| Dimensions | M18 x 1/L=63,9mm |
| Weight | 130g |
| Housing Material | Nickel plated brass / PC cable exit |
| Connections | 2m PVC cable |
| Active Head Material | PMMA |
| Tightening torque | 25Nm |
| Operating temperature | - 25°C…+ 70° C (Without freeze) |
| Diameter/Dimension | M18 |
| Approvals | CE cULus |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP67 |
| Supplied Accessories | nuts M18 x 1 |
| Dimensions | M18 x 1/L=63,9mm |
| Operating Temperature | - 25°C…+ 70°C (Without freeze) |
| Mechanical Protection | IP67 |
