SMART-VS

959971320

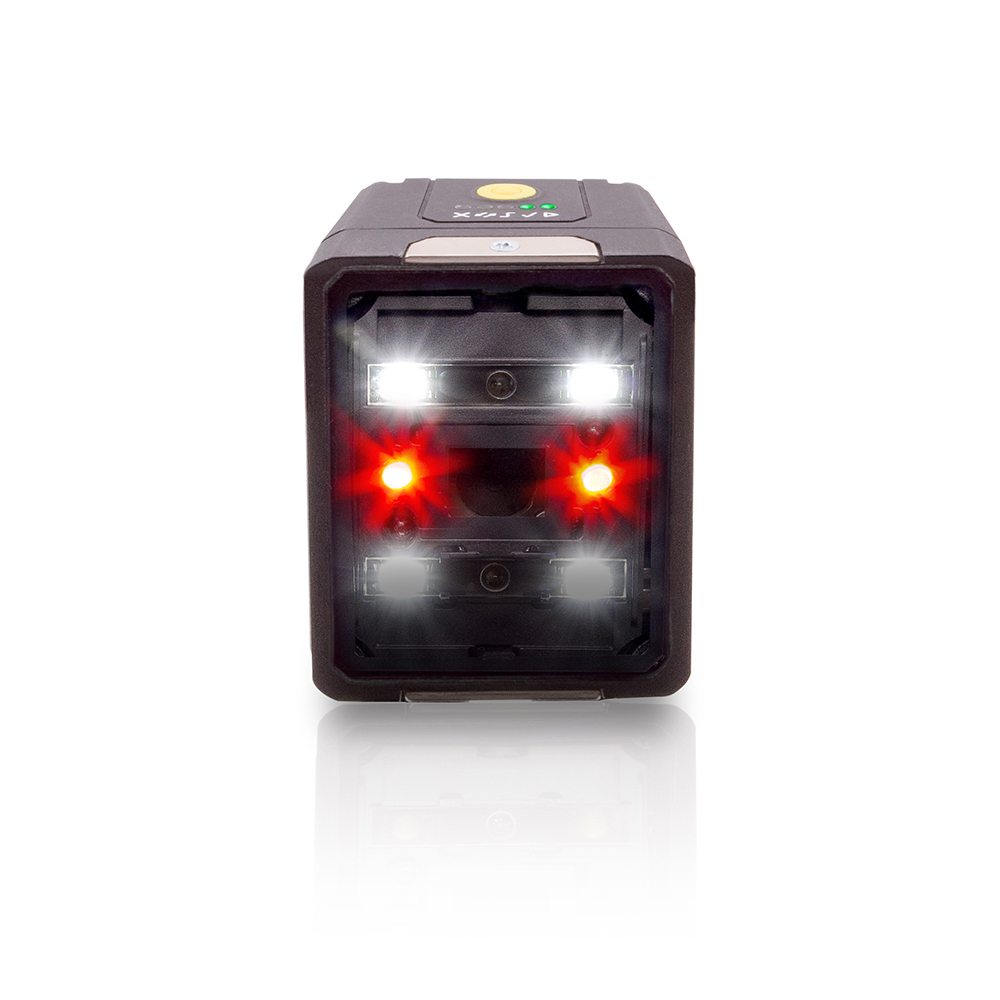

Smart-VS-MR-5-150-WH-O
Smart Vision Sensor Cubic STANDARD Model with 6 images handling 50ms response time AI Assisted setting only classificator with 2 classes 150mm distance 3 config out M12-17pin connector

Smart-VS

Overview

  • Smart-VS+ model available to handle more images and more connectivity features
  • Machine Learning Assisted Setting
  • No vision Tools programming required
  • No need of skilled installers just photosensor like setting
  • Deterministic response time 50 ms (Standard model -MR-)
  • Deterministic response time 20 ms (PLUS model -PL- depending on n. of images)
  • 50...150 mm detection distance
  • TEACH Button and comprehensive UI with 5 status LEDs
  • Electronic focus control

Technical Features

Detection properties
Nominal sensing distance 400 mm
Sensitivity adjustment TEACH-IN push button + WEB based GUI (through Ethernet)
Minimum sensing distance (blind zone) 50 mm
Application
Function Principle Object detection classification 6 classes + Anomaly detection
Description Compact block style case
Optic position Radial 90°
Functions Object detection classification 6 classes + Anomaly detection
Outputs
Output type 4 NPN/PNP/PP, 1 Ethernet 10/100 (M12 8-pin X-coded)
Output Function Data Valid / GOOD / NO GOOD
Switching frequency 50ms
Response time 15…50 ms (deterministic classifier) 200 ms max (non det. anomaly)
Electrical data
Operating Voltage 10…30 Vdc
No-Load supply current 0.40 - 0.14 A
Load current ≤100mA
Leakage current ≤ 400 μA
Output voltage drop 100 mA
Max ripple content ≤10%
LED indicators 6 LED yellow (output, run, trigger, good, bad, not used) + 2 on back (1 blue power, 1 yellow Ethernet)
Short-circuit protection Yes
Reverse Polarity Protection Yes
Emission LED white 4 polarized white H.P. LEDs + 2 LED red aim + 1 LED green spot + 1 LED green spot
Interference to external light according to EN 60947-5-2 : 2020
Impulsive Overvoltage Protection Yes
Power Consumption 0.17…0.5 mA @30 V …10 V (5W) @30V…10V (5V)
Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
Contact resistance 500 Vac 1 min., between electronics and housing
Mechanical data
Dimensions 47 x 58 x 38 mm
Housing Material Metal - Aluminium / PMMA
Connections M12 plug 8 pin
Active Head Material PMMA
Storage temperature - 25°C…+70°C
Material PMMA
shaft material Yellow rubber
Diameter/Dimension Cubic
Test/Approvals
Approvals CE CSS
EMC compatibility EN 60947-5-2
Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
Generical Data
CPU Sistem On Chip
Camera Interface 10/100 Mbit/s Ethernet
Dimensions 47 x 58 x 38 mm
Operating Temperature -25…70°C
Mechanical Protection IP67
Resolution 320x240 pixels
Imager 50 (total anomaly), 50 (total classifier)
Shutter Rolling
Frame rate (FPS) 20
Optical Data
Mono/Color Monochrome
