SL5

952501010

SL5-5-B-82

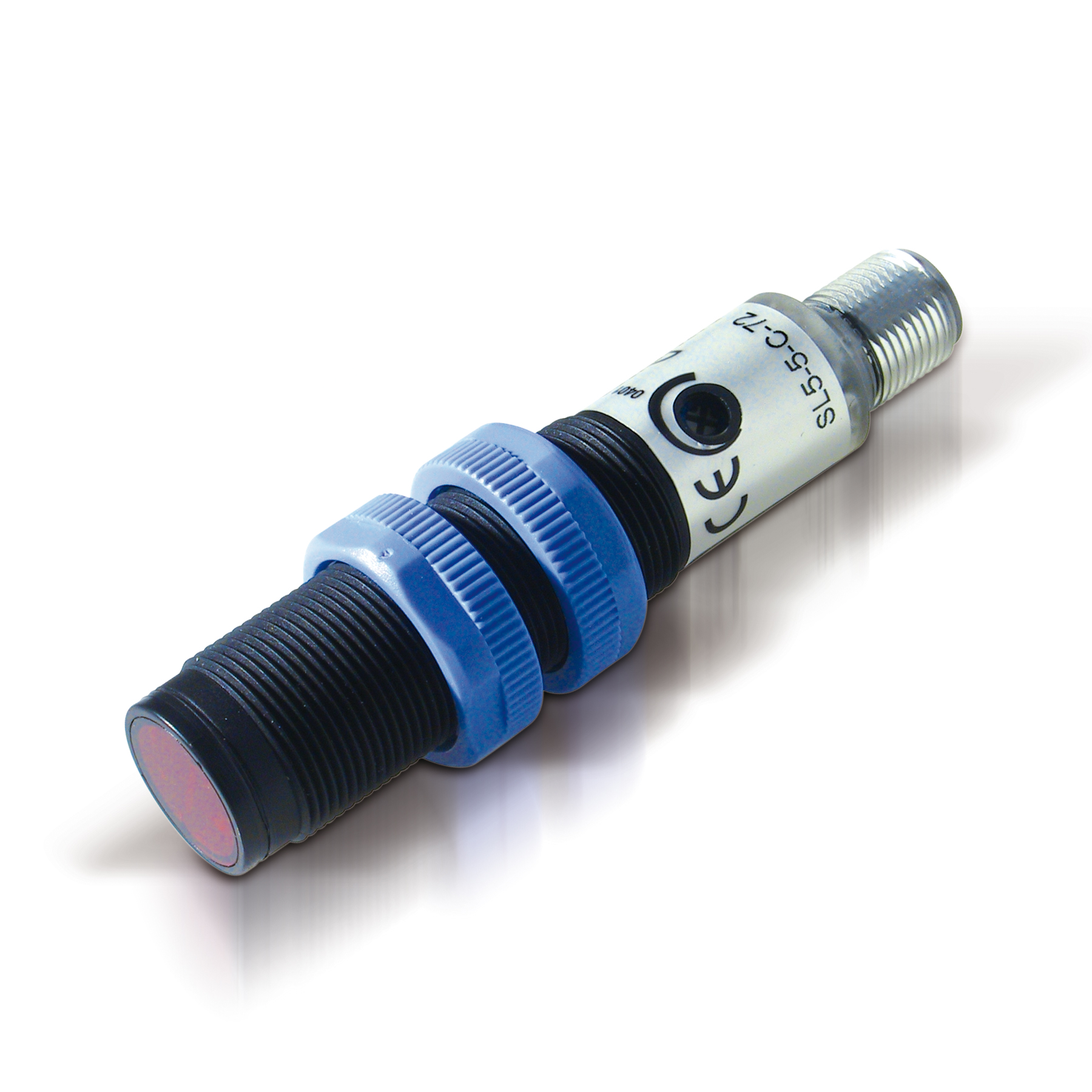

Photoelectric Sensor Tubular M18 Red Laser emission Retro Reflex polarized pnp dark - M12

Single beam safety sensors safety control units

Overview

    Installation FlexibilityLong distanceLow temperature with defogging function4 safety areas controlled with one unitDouble muting SENSORS:
  • Emitter-receiver photocells with test input
  • Type 2 and Type 4 models
  • Plastic tubular and MAXI formats
  • Up to 50m operating distance
  • Class 1 red laser emission models up to 40
  • Standard M12 connectors
    • CONTROL UNITS:
  • Integrated control of 4 single beams and 2 light curtains
  • Simple DIP Swicth configuration
  • Muting functions can be assigned to light curtains or single beams

Technical Features

Detection properties
Nominal sensing distance 12m
Sensitivity adjustment Trimmer
Application
Function Principle Polarized retroreflective
Description Tubular M18 - axial optic
Functions Polarized retroreflective
Outputs
Output type PNP Don
Output Function Don
Response time 0,33
Electrical data
Operating Voltage 10…30VDC
Load current ≤100mA
Short-circuit protection YES
Reverse Polarity Protection Yes
Emission LASER Red (650nm) class1
Interference to external light according to EN 60947-5-2 : 2020
Impulsive Overvoltage Protection Yes
Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
Contact resistance 500 Vac 1 min., between electronics and housing
Mechanical data
Dimensions Ø18x66
Housing Material Plastic ABS / PMMA
Connections M12 plug
Active Head Material PMMA
Material
Diameter/Dimension M18
Test/Approvals
Approvals CE cULus
Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
Generical Data
Dimensions M18 x 1/L=66mm
Operating Temperature - 10°C…+ 55°C
Mechanical Protection IP67
