Home > Products > Sensors > Photoelectric sensors > Cubic sensors > S3N > 95B010652

S3N

95B010652

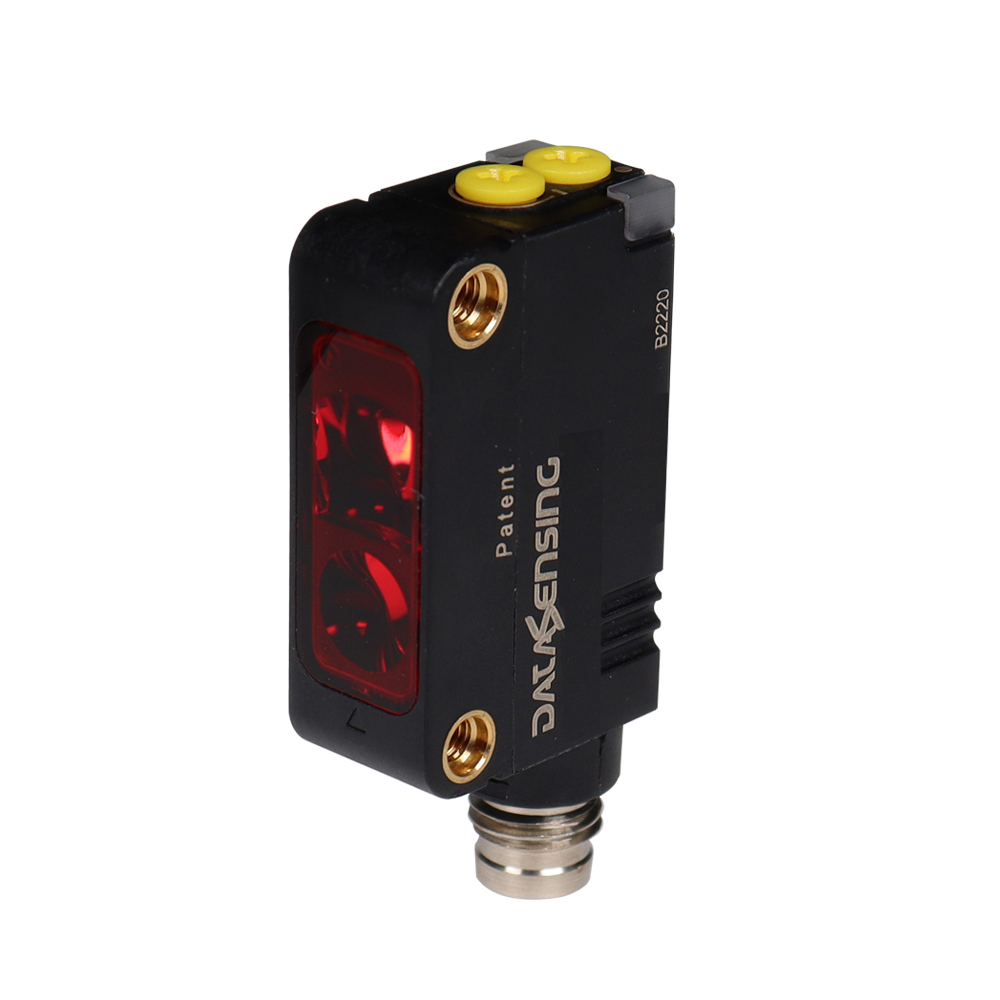

S3N-PR-5-C11-P DIFF PNP L/D M8
Photoelectric Miniature Red LED emission Diffused long distance 1m double trimmer Adj + L/D PNP Connector M8 4P

Miniature photoelectric sensor

Overview

  • All models with visible and bright red emission
  • LED and Laser emission models
  • Multiple Background suppression functions
  • Shiny and clear object detection
  • Single, Double trimmer & Push Button models
  • Diffuse proximity up to 100 cm
  • Background suppression up to 800 mm (LED trimmer version)
  • Polarized RRX 7 m (Red LED emission)
  • Polarized RRX 12 m (Red Laser emission)
  • Through-beam 20 m and Laser 30 m
  • Connection with 2 m Cable or M8 connector
  • Rugged IP67 Plastic miniature case
  • M3 threaded holes on the front side with metal inserts
  • State of the art IO-Link connectivity with extended Smart Tasks

Technical Features

Detection properties
Nominal sensing distance 1m
Sensitivity adjustment 1 turn trimmer
Minimum sensing distance (blind zone) 0mm
Application
Function Principle Diffuse beam
Notes white target Kodak 90% 400 x 400mm
Optic position Radial 90°
Functions Diffuse beam
Outputs
Output type PNP L/D selectable by trimmer L/D Selectable
Output Function L/D Selectable
Switching frequency 1kHz
Response time 500µs
Electrical data
Operating Voltage 10…30VDC
No-Load supply current ≤ 35mA
Load current ≤100mA
Leakage current ≤ 300 μA
Output voltage drop ≤2V@Iload=100mA
Max ripple content ≤10%
LED indicators yellow OUTPUT LED, green STABILITY LED
Short-circuit protection Yes
Reverse Polarity Protection Yes
Emission LED Red (635nm)
Interference to external light according to EN 60947-5-2 : 2020
Impulsive Overvoltage Protection Yes
Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
Contact resistance 500 Vac 1 min., between electronics and housing
0,1µF @Vmax - 1µF @Vmin Yes
Mechanical data
Housing Material Plastic Polymer Fiber Glass reinforced
Connections M8 plug 4pin
Active Head Material PMMA
Storage temperature - 25°C…+70°C
Plug connector material Metal
shaft material POM, PMMA
Diameter/Dimension Cubic
Test/Approvals
Approvals CE cULus
EMC compatibility EN 60947-5-2
Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
Generical Data
Dimensions 11x31x19 mm
Operating Temperature -25°C ... 55°C
Mechanical Protection IP67

Connections

Eletrical diagram

Others

Response curves
