| Nominal sensing distance | 2m |
| Thermal drift of Sr | 10% Sr |
| Repeat Accuracy | 5% |
| Sensitivity adjustment | Trimmer |
| Function Principle | Diffuse reflection (long distance, >600mm) |
| Notes | white target Kodak 90% 400 x 400mm EG=1,5 |
| Optic position | Axial |
| Output type | Relay SPST NO/NC |
| Output Function | NO/NC |
| Switching frequency | 25Hz |
| Response time | 20ms |
| Operating Voltage | 20...60VDC /20...253VAC/50-60Hz |
| No-Load supply current | ≤ 25mARMS |
| Load current | 3A-250Vac/3A-30Vdc (750VA/90W) |
| Max ripple content | ≤10% |
| LED indicators | Red (output status) o (alineament), Green (stability) |
| Time delay before availability | ≤200ms |
| Reverse Polarity Protection | Yes |
| Emission | LED Infrared (880nm) |
| Interference to external light | ≥ 5000lux (incandescent lamp) |
| Impulsive Overvoltage Protection | Yes |
| Dimensions | 26x86,6x61 |
| Weight | 90g |
| Housing Material | PC |

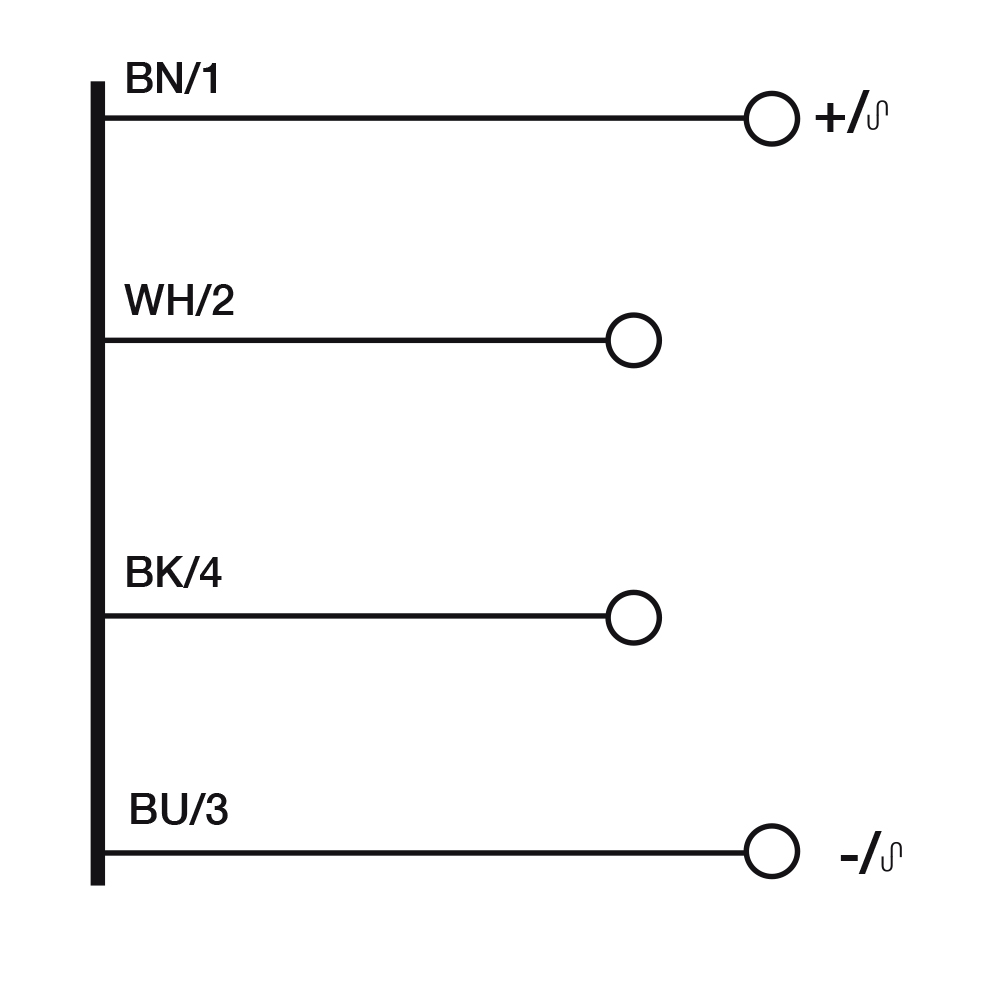

| Connections | M12 plug |
| Active Head Material | PMMA |
| Operating temperature | - 25°C…+ 70°C ( without freeze) |
| Diameter/Dimension | Cubic |
| Approvals | CE |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-28 |
| Degree of protection | IP65 |
| Supplied Accessories | ST81 mounting bracket and screws |
| Dimensions | 26x86,6x61 |
| Operating Temperature | - 25°C…+ 70°C (Without freeze) |
| Mechanical Protection | IP65 |
