| Nominal sensing distance | 200mm |
| Repeat Accuracy | 5% |
| Sensitivity adjustment | Trimmer |
| Minimum sensing distance (blind zone) | 25mm |
| Function Principle | Diffuse reflection (medium distance, ≤600mm) |
| Optic position | Radial 90° |

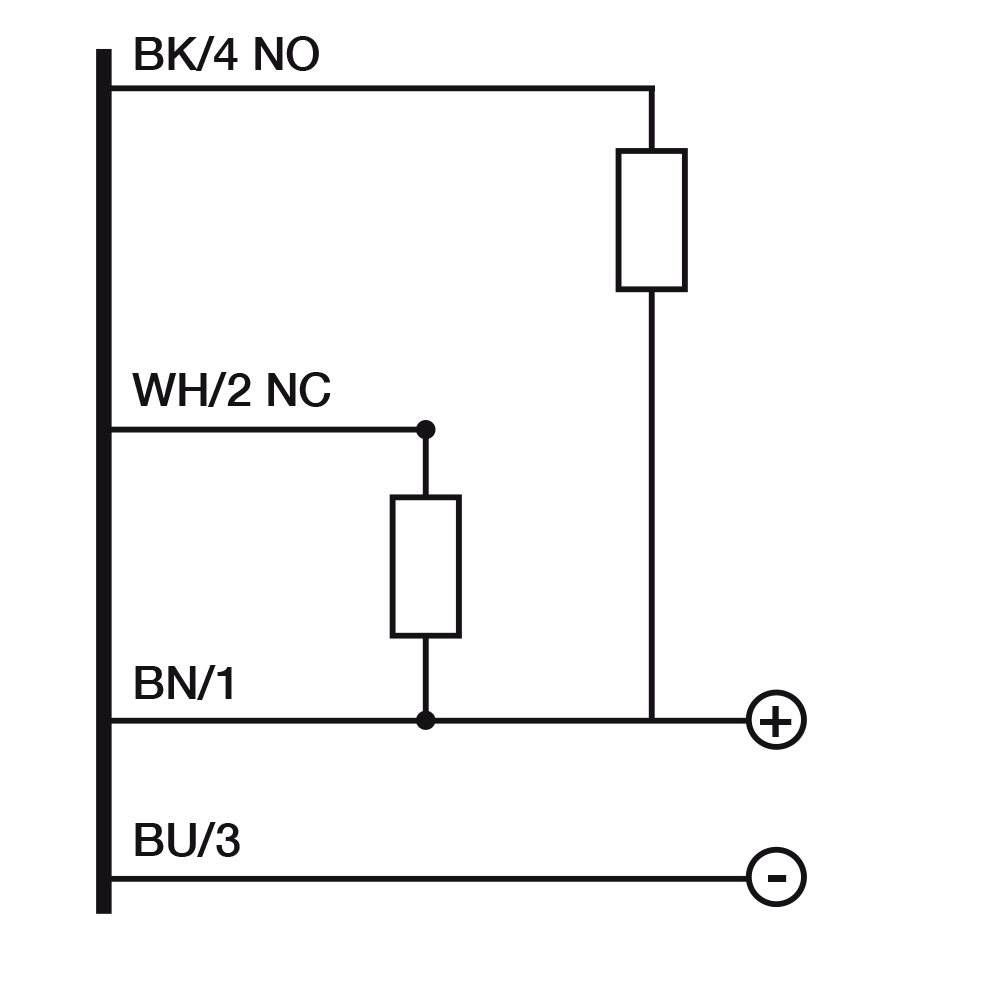

| Output type | NPN NO+NC |
| Output Function | NO+NC |
| Switching frequency | 500Hz |
| Response time | 1ms |
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 40mA |
| Load current | ≤100mA |
| Leakage current | ≤100μA |
| Output voltage drop | ≤2V@Iload=100mA |
| Max ripple content | ≤10% |
| LED indicators | Yellow (status output), green (stability, powerON) |
| Time delay before availability | ≤200ms |
| Short-circuit protection | Short circuit (autoreset), Overvoltage |
| Reverse Polarity Protection | Polarity inversal, Inpulsive voltage |
| Emission | LED Red (617nm) |
| Interference to external light | ≤10000lux |

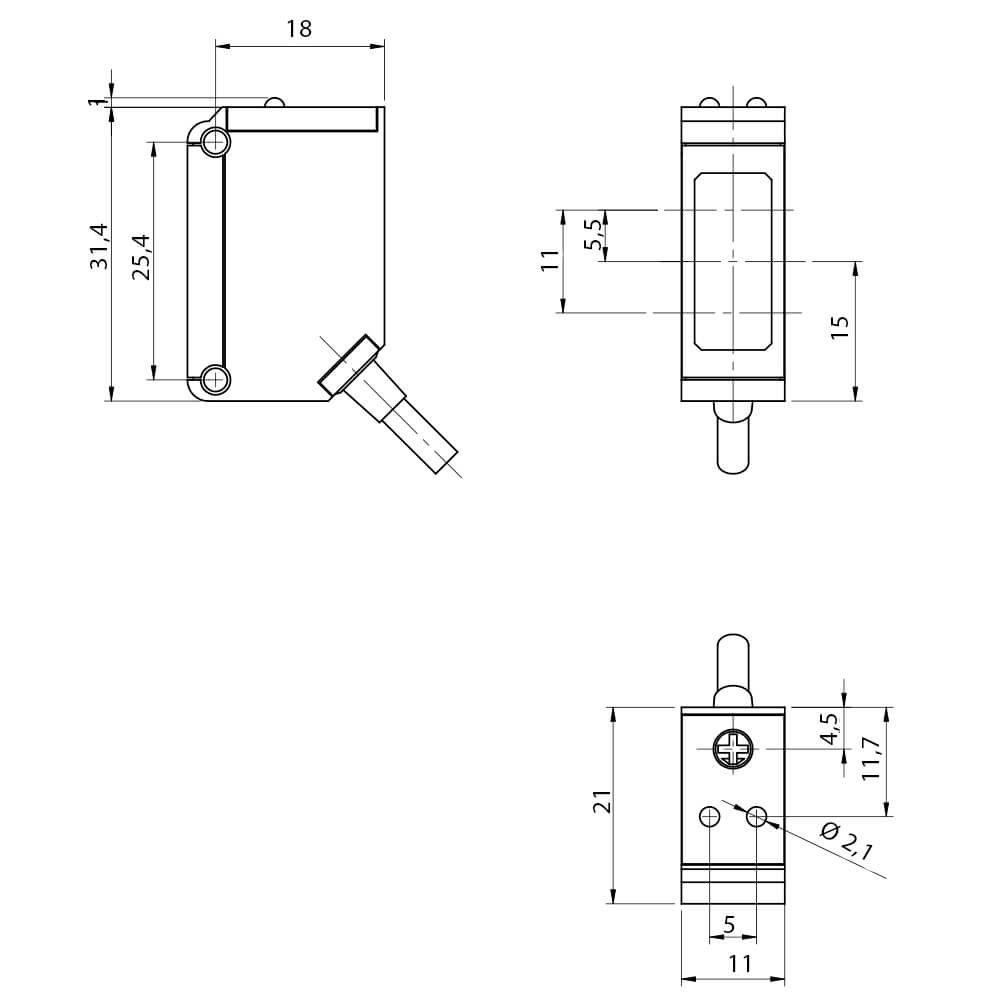

| Dimensions | 31,4x21x11mm |
| Weight | 100g |
| Housing Material | Stainless steel AISI 316L |
| Connections | 2m PVC cable |
| Active Head Material | PPSU |
| Operating temperature | - 25°C…+ 60° C (Without freeze) |
| Storage temperature | -40° ... +70°C |
| Diameter/Dimension | Cubic |
| Approvals | CE cULus ECOLAB |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP68, IP69K |
| Supplied Accessories | Mouting bracket screwdriver |
| Dimensions | 31,4x21x11mm |
| Operating Temperature | - 15°C...+ 55°C (Without freeze) |
| Mechanical Protection | IP68, IP69K |
