| Nominal sensing distance | 1m |
| Sensitivity adjustment | Trimmer |
| Minimum sensing distance (blind zone) | 0,1m |
| Function Principle | Diffuse reflection (long distance, >600mm) |
| Optic position | Axial |
| Output type | Relay SPDT NO+NC |
| Output Function | NO+NC |
| Switching frequency | 20Hz |
| Response time | 25ms |
| Operating Voltage | 12...240VDC /24...240VAC/50-60Hz |
| No-Load supply current | 2,5VA ( relay ON) |
| LED indicators | Yellow (Output status), Green (stability, powerON) |
| Time delay before availability | ≤200ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED Infrared (850nm) |
| Dimensions | 50X50mm |
| Weight | 200g |
| Housing Material | PC/ABS |
| Connections | 2m PVC cable |
| Active Head Material | PMMA |
| Operating temperature | - 20°C…+ 60°C ( UL omologation 0°C…60°C) |
| Material | PC/ABS |
| Diameter/Dimension | Cubic |
| Approvals | CE |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-50 |
| Degree of protection | IP67 |
| Supplied Accessories | Mounting bracket |

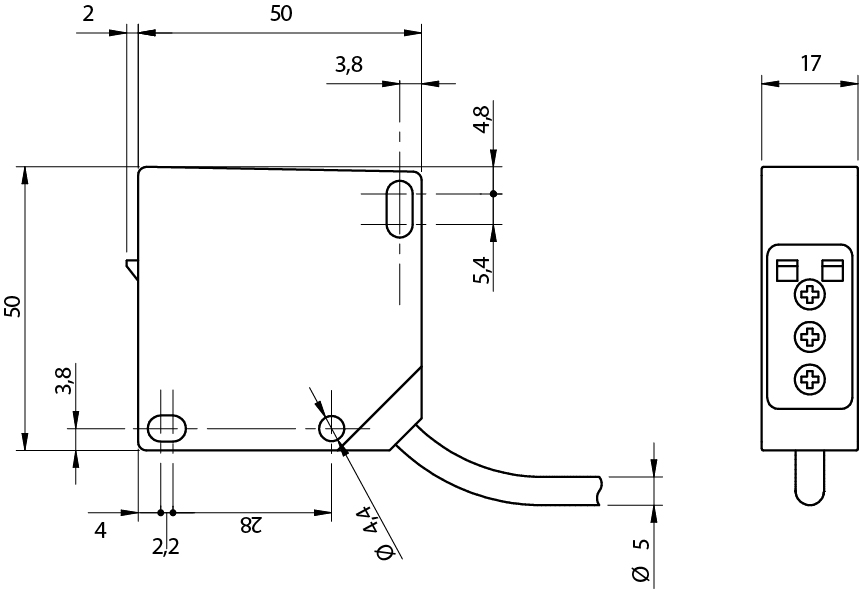

| Dimensions | 50x50x17mm |
| Operating Temperature | - 20°C…+ 60°C (Without freeze) |
| Mechanical Protection | IP67 |
