| Nominal sensing distance | 0,5 … 2m |
| Beams space | 10mm |
| controlled height | 150mm |
| minimum detectable object | Ø 5mm |
| number of rays | 16 |
| Sensitivity adjustment | Yes |
| Function Principle | emitter+receiver |
| Output type | NPN |
| Output Function | NO |
| Switching frequency | 130Hz |
| Resposnse time for light/dark transition | 500µs |
| Resposnse time for dark/light transition | 7ms |
| Operating Voltage | 10…26VDC |
| No-Load supply current | 150mA (emitter) - 25mA (receiver) |
| Load current | 100mA |
| Leakage current | < 10µA @ 26V |
| Output voltage drop | ≤2V@100mA |
| Max ripple content | 10% |
| LED indicators | emitter: yellow (poweON and emission active) - receiver: red (signal level) - yellow (output state active) |
| Time delay before availability | < 85 ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | Infrared (880nm) |
| Interference to external light | 1000lux (incandescent light) - 1500lux (sunlight) |
| Impulsive Overvoltage Protection | Yes |

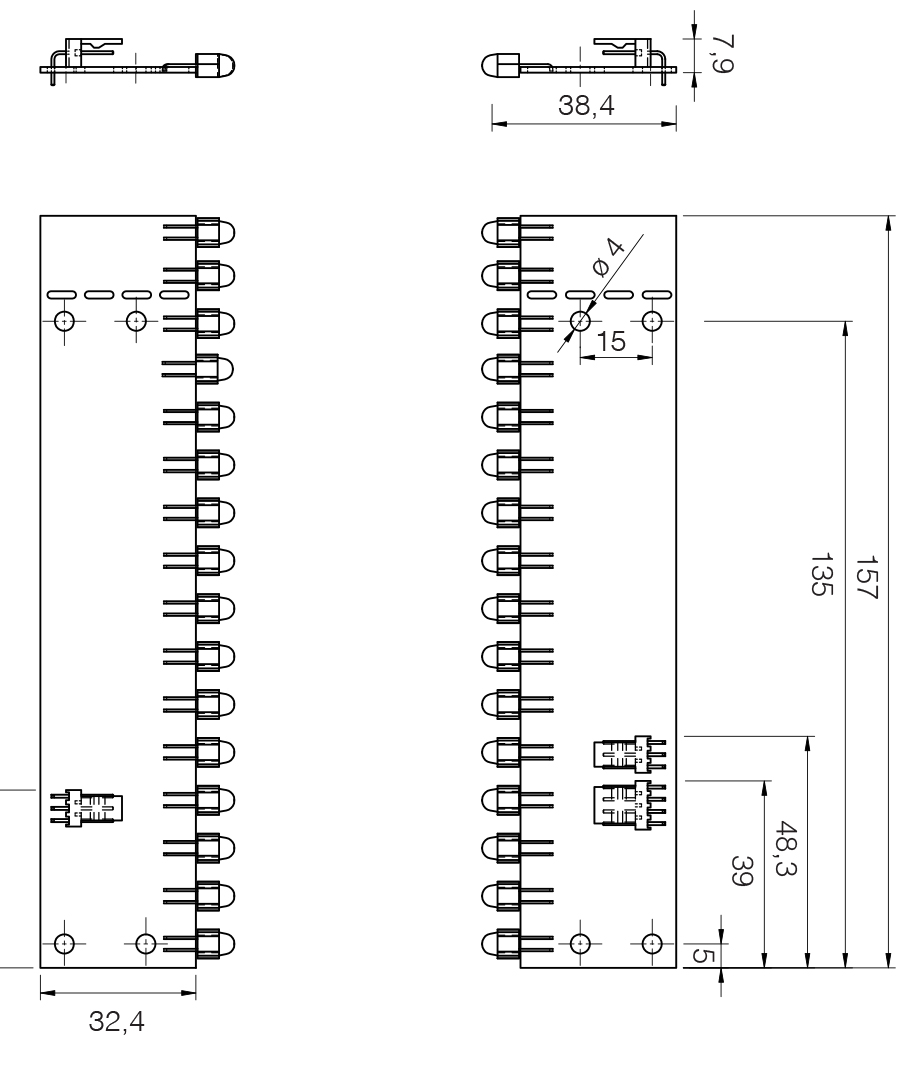

| Dimensions | 157 x 36 x 18mm |
| Weight | 104g |

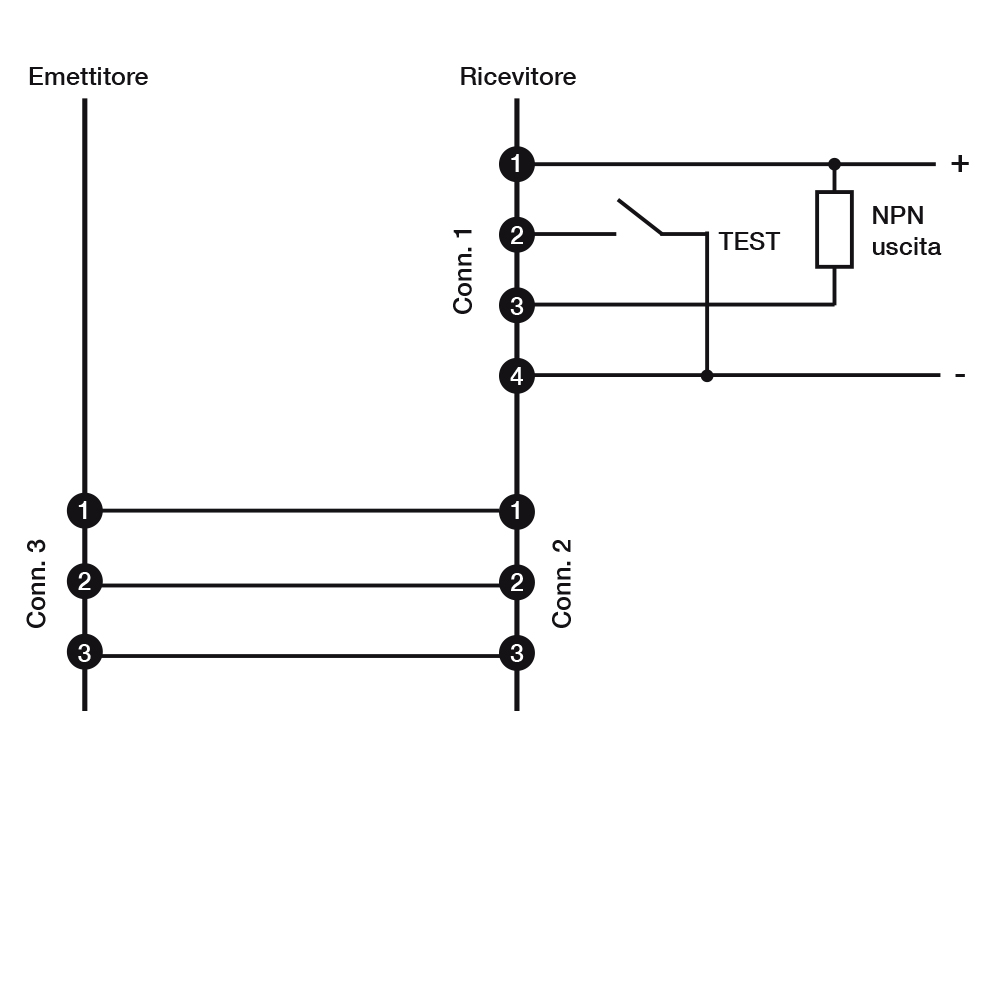

| Connections | With PCB connectors / Emitter, Conn. 3 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 1 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 2 MOLEX 22-05-7048 Positive, Check, Output, Common |
| Operating temperature | 0°C…+ 55° C (without freeze) |
| Degree of protection | Not defined |
| Dimensions | 157x36x18 |
| Operating Temperature | 0°C…+ 55° C (without freeze) |
| Mechanical Protection | Not defined |
