| Nominal sensing distance | 16m |
| Thermal drift of Sr | ≤10%Sr |
| Repeat Accuracy | 5% |
| Sensitivity adjustment | No |
| Function Principle | Receiver |
| Emitter/Receiver | Receiver |
| Optic position | Axial |
| Output type | TRIAC NO |
| Output Function | NO |
| Switching frequency | 25Hz |
| Response time | 20ms |
| Operating Voltage | 20...253VAC/50-60Hz |
| No-Load supply current | ≤ 30mARMS |
| Load current | 5…300mARMS |
| Leakage current | 6A |
| Output voltage drop | ≤3V@Iload=300mARMS |
| Max ripple content | ≤10% |
| LED indicators | Red (status output) |
| Time delay before availability | ≤200ms |
| Emission | |
| Interference to external light | 3.000lux (incandescent lamp), 10.000lux (sunlight) |

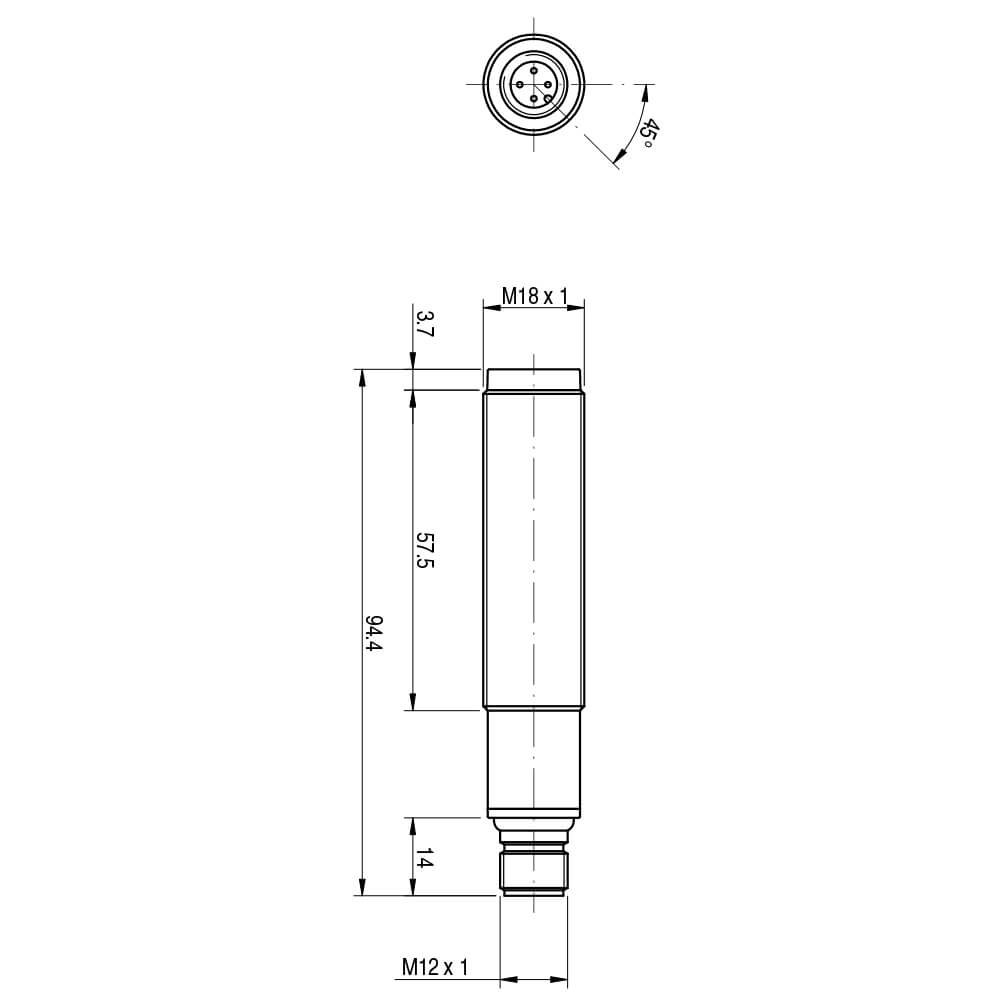

| Dimensions | M18x1/L=78,9mm |
| Weight | 30g |
| Housing Material | PBT / PC plug |
| Connections | M12 plug |
| Active Head Material | PMMA |
| Tightening torque | 1Nm |
| Operating temperature | - 25°C…+ 60° C (without freeze) |
| Diameter/Dimension | M18 |
| Approvals | CE cURus |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP67 |
| Supplied Accessories | Nuts M18 x 1 |
| Dimensions | M18x1/L=78,9mm |
| Operating Temperature | - 25°C…+ 70°C (Without freeze) |
| Mechanical Protection | IP67 |
