| Nominal sensing distance | 12mm (with STF-12) 25mm (with SFT-25) |
| Thermal drift of Sr | ≤ 10% |
| Spot dimension | Ø 1mm (with STF-12) Ø 0,8mm (with SFT-25) |
| Function Principle | Luminescence |
| Notes | white target Kodak 90% 100 x 100mm |

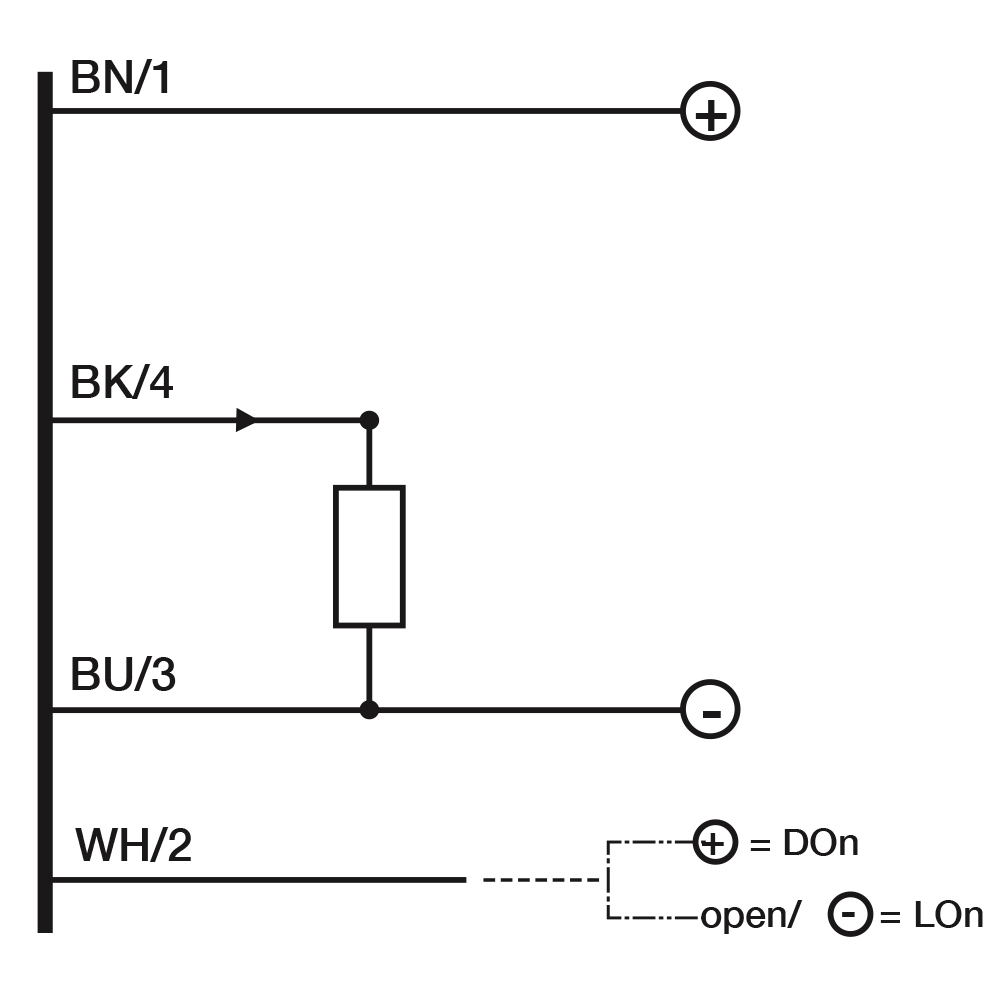

| Output type | PNP L/D Selectable |
| Output Function | L/D Selectable |
| Switching frequency | 10Khz |
| Response time | 50 µs |
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 40mA |
| Load current | ≤100mA |
| Leakage current | ≤ 10µA |
| Output voltage drop | ≤1,2V@Iload=100mA |
| Max ripple content | ≤10% |
| LED indicators | Yellow (output status) Green(powerON) |
| Time delay before availability | ≤200ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED UV |
| Interference to external light | 3000 lux (incandescent lamp) 10000 lux (sunlight) |
| Impulsive Overvoltage Protection | Yes |
| Dimensions | M18 |
| Housing Material | PBT |
| Connections | M12 plug 90° |
| Active Head Material | PMMA |
| Tightening torque | 1Nm |
| Operating temperature | -5°C … +55°C (without freeze) |
| Approvals | CE |
| EMC compatibility | EN 60947-5-2 |
| Degree of protection | IP65 |
| Supplied Accessories | nuts M18 x 1 |
| Accessories to be ordered separately | Focalizer STF-12 Focalizer STF-25 |
| Dimensions | M18 |
| Operating Temperature | - 5°C…+ 55° C (Without freeze) |
| Mechanical Protection | IP65 |
