| Nominal sensing distance | 80mm |
| Sensitivity adjustment | No |
| Function Principle | Emitter |
| Emitter/Receiver | Emitter |
| Optic position | Axial |
| Output type |

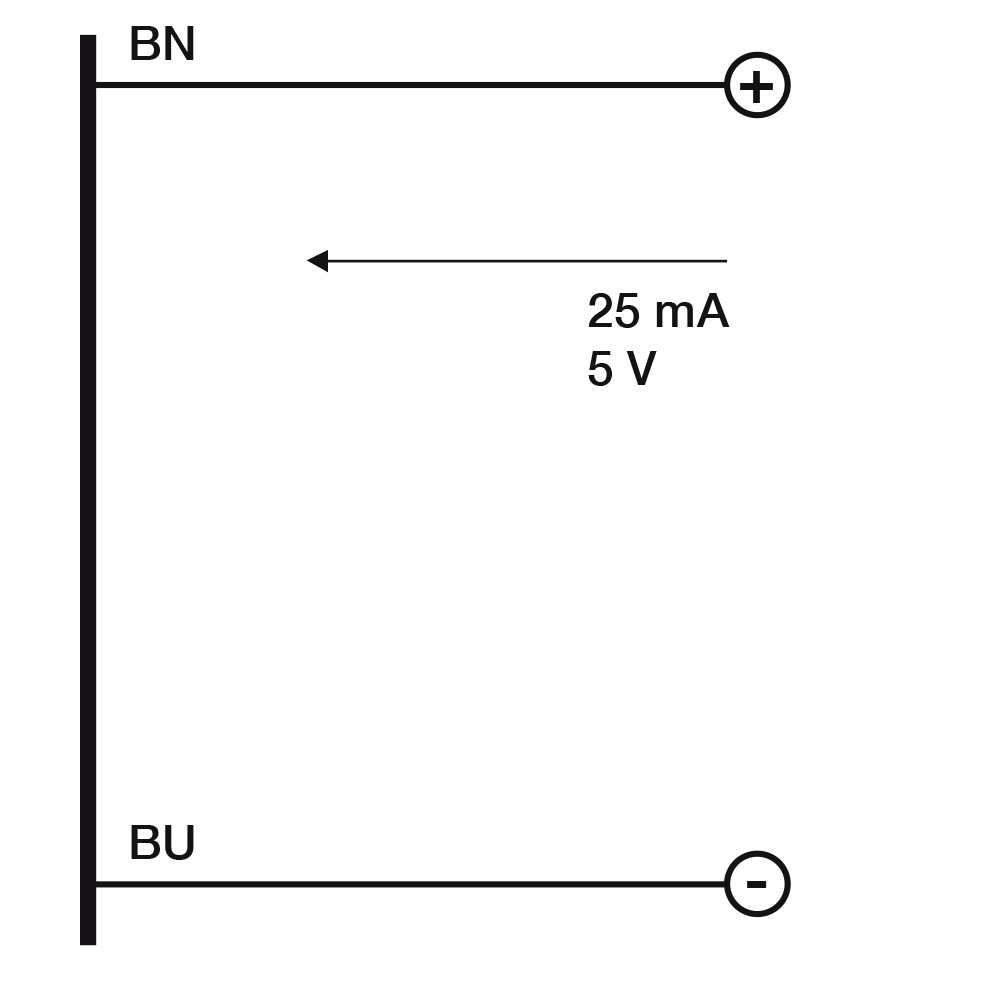

| Operating Voltage | ≤5VDC |
| No-Load supply current | ≤ 25mA |
| Load current | |
| Output voltage drop | |
| Max ripple content | ≤1% |
| Time delay before availability | ≤200ms |
| Emission | LED Infrared (880nm) |
| Interference to external light | 150lux (incandescent lamp) |
| Dimensions | M8x0,75/L=25mm |
| Weight | 63g |
| Housing Material | Stainless Steel AISI 303 |
| Connections | 2m PVC cable |
| Active Head Material | PMMA |
| Operating temperature | - 25°C…+ 70° C (without freeze) |
| Diameter/Dimension | M8 |
| Approvals | CE |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP67 |
| Supplied Accessories | nuts M8 x 0,75 |
| Dimensions | M8x0,75/L=25mm |
| Operating Temperature | - 25°C…+ 70°C (Without freeze) |
| Mechanical Protection | IP67 |
