| Nominal sensing distance | Depending on optical fibres used |
| Repeat Accuracy | ≤ 5% |
| Sensitivity adjustment | Teach-in |
| Function Principle | Optic fiber amplifier |
| Notes | Delay ON/OFF One Shot |
| Optic position | Axial |
| Output type | NPN L/D Selectable |
| Output Function | L/D Selectable |
| Switching frequency | 12,5 Khz(HIGH SPEED) 2 Khz (FINE) 500 Hz (SUPER) 31,25 Hz(MEGA) |
| Response time | 40µs(HIGH SPEED) 250 µs (FINE) 1ms (SUPER) 16ms(MEGA) |
| Operating Voltage | 12...24VDC |
| No-Load supply current | ≤ 50mA |
| Load current | ≤100mA |
| Leakage current | ≤ 10µA |
| Output voltage drop | ≤1,5V@Iload=100mA |
| Max ripple content | ≤10% |
| LED indicators | Red (output state) Red (Signal level -4 digits) Green (Threshold - 4 digits) |
| Time delay before availability | ≤200ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED Red (680nm) |
| Interference to external light | 20.000lux (incandescent lamp), 30.000lux (sunlight) |

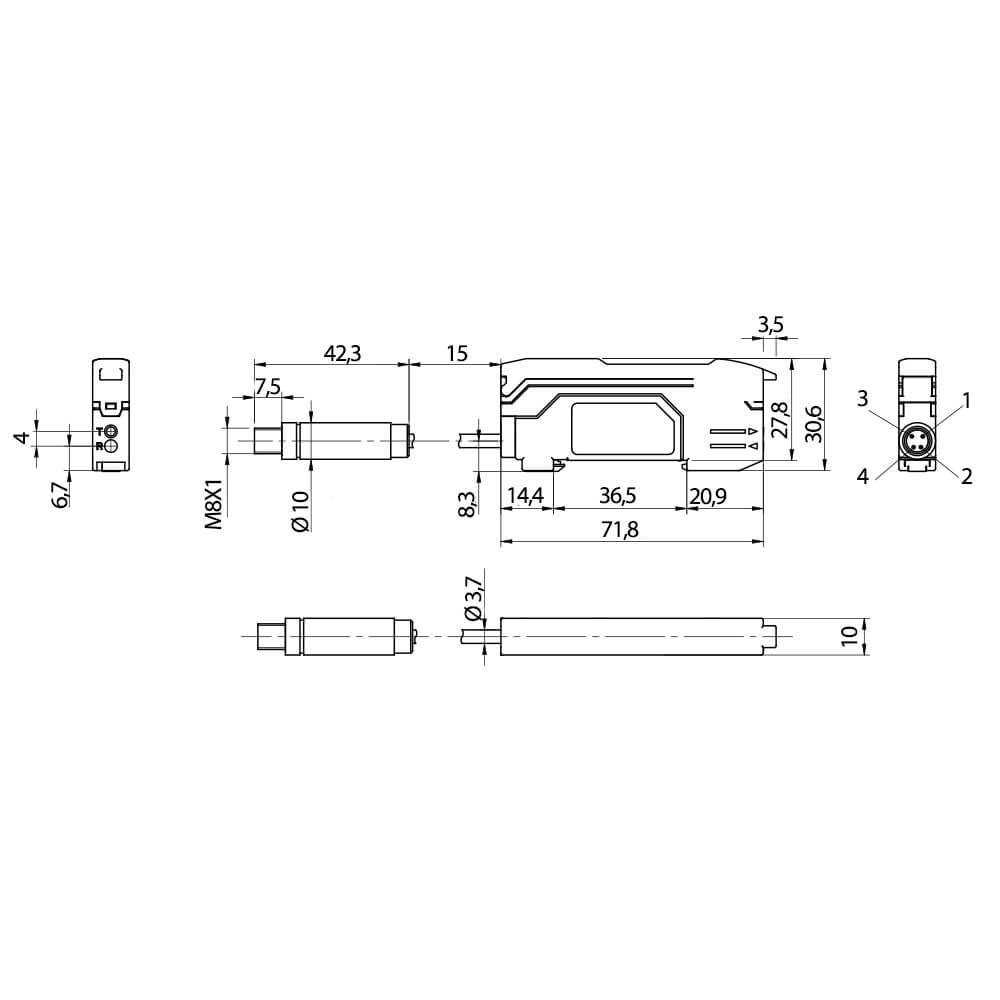

| Dimensions | 71,8 x 30,3 x 9,8 mm |
| Weight | 50 g (approx.) |
| Housing Material | PC |
| Connections | 150mm PVC cable + M8 plug 4pin |
| Operating temperature | - 20°C…+ 55°C (without freeze) |
| Diameter/Dimension | Cubic |
| Approvals | CE |
| EMC compatibility | EN 60947-5-2 |
| Degree of protection | IP64 |
| Supplied Accessories | DIN mounting bracket |
| Dimensions | 71,8 x 30,3 x 9,8 mm |
| Operating Temperature | - 20°C…+ 55°C (Without freeze) |
| Mechanical Protection | IP64 |
