| Nominal sensing distance | Depending on optical fibres used |
| Operative range | |
| Thermal drift of Sr | |
| Sensitivity adjustment | Trimmer |
| Hysteresis |
| Function Principle | Optic fiber amplifier |
| Optic position | Axial |
| Output type | PNP L/D Selectable |
| Output Function | L/D Selectable |
| Switching frequency | ≤ 1,5Khz |
| Response time | 333µs |
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 15mA |
| Load current | ≤200mA |
| Leakage current | ≤ 0,1mA |
| Output voltage drop | ≤2V@Iload=200mA |
| Max ripple content | ≤10% |
| LED indicators | Orange (output active); green (n.4 - received signal level); red (no received signal) |
| Time delay before availability | ≤200ms |
| Short-circuit protection | |
| Reverse Polarity Protection | |
| Emission | LED Red (660nm) |
| Interference to external light | 5.000lux (incandescent lamp), 10.000lux (sunlight) |
| Impulsive Overvoltage Protection |
| Dimensions | |
| Weight | |
| Housing Material | PBTP |
| Connections | M8 plug 4pin |
| Operating temperature | |
| Diameter/Dimension | Cubic |
| Approvals | CE |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | |
| Degree of protection | IP64 |
| Supplied Accessories | DIN mounting bracket |

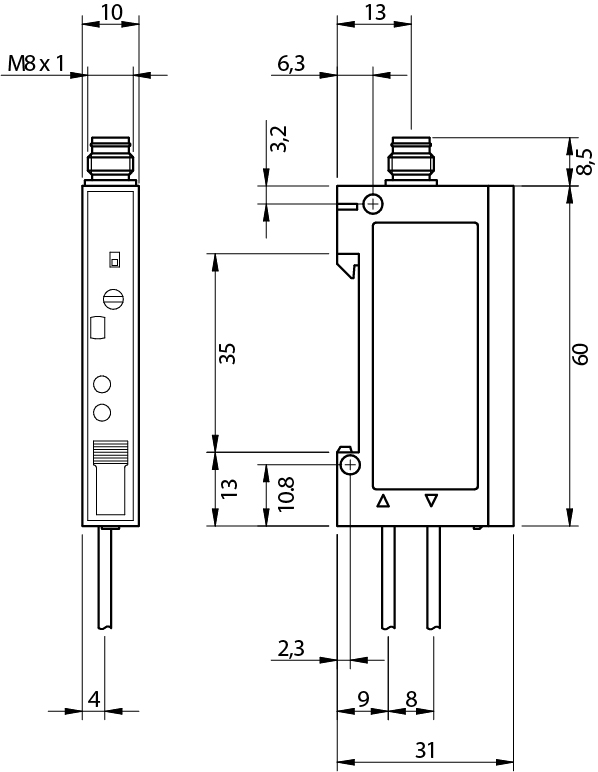

| Dimensions | 80 x 31,1 x 10 mm |
| Operating Temperature | - 25°C…+ 55°C (Without freeze) |
| Mechanical Protection | IP64 |
