| Nominal sensing distance | Depending on optical fibres used |
| Thermal drift of Sr | ≤ 10% Sr |
| Repeat Accuracy | ≤ 5% |
| Sensitivity adjustment | Trimmer |
| Function Principle | Optic fiber amplifier |
| Optic position | Axial |

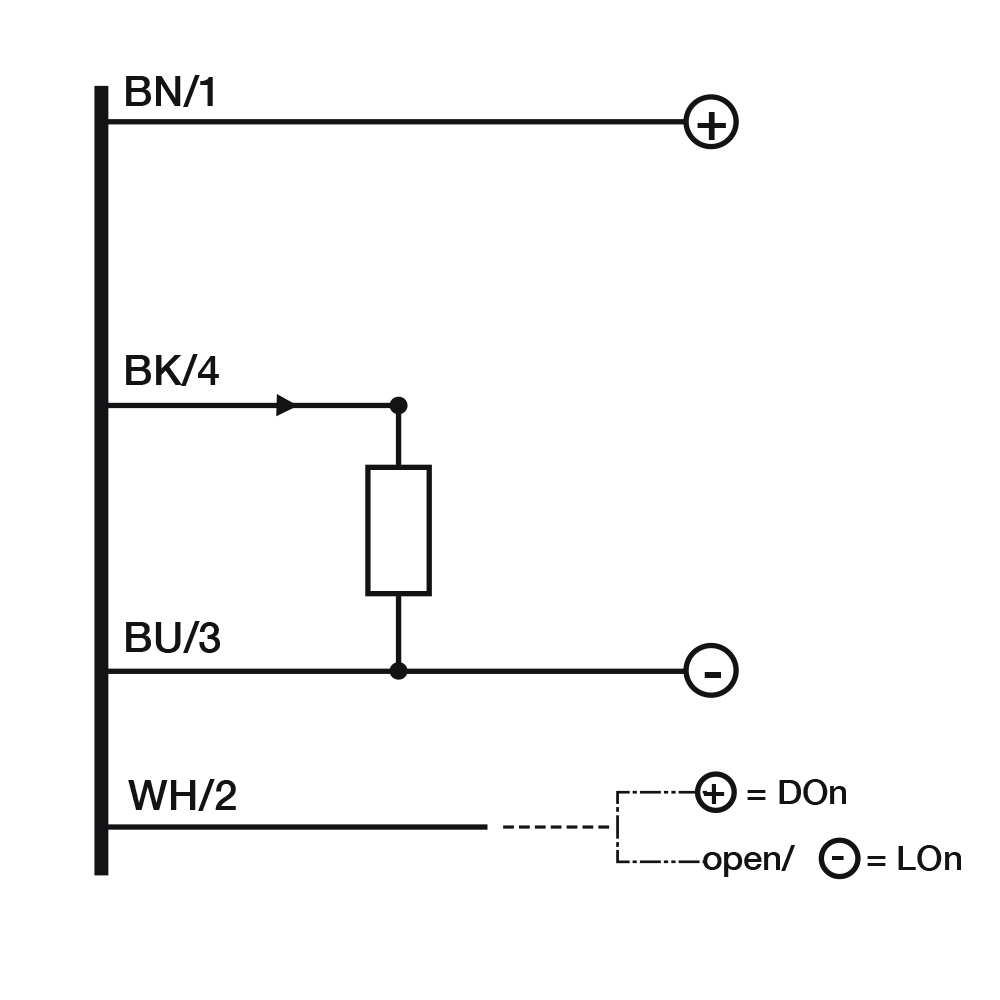

| Output type | PNP L/D Selectable |
| Output Function | L/D Selectable |
| Switching frequency | 1Khz |
| Response time | 500µs |
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 30mA |
| Load current | ≤100mA |
| Leakage current | ≤ 10μA @ Vmax |
| Output voltage drop | ≤1,2V@Iload=100mA |
| Max ripple content | ≤10% |
| LED indicators | red (output state) |
| Time delay before availability | ≤200ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED Red (660nm) |
| Interference to external light | 30.000lux (incandescent lamp), 10.000lux (sunlight) |

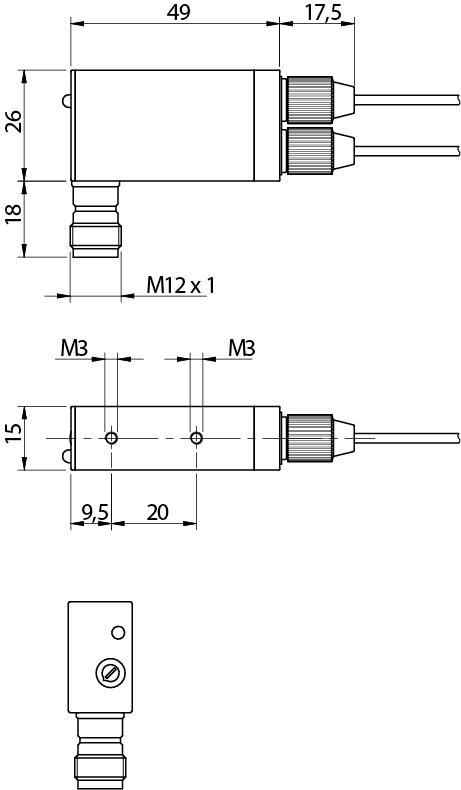

| Dimensions | 15x26x67 mm |
| Weight | 50 g |
| Housing Material | Polyammide |
| Connections | M12 plug 90° |
| Active Head Material | |
| Operating temperature | - 25°C…+ 70°C (without freeze) |
| Diameter/Dimension | Cubic |
| Approvals | CE |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP67 |
| Supplied Accessories | ST07 mounting bracket and screws |
| Dimensions | 15x26x67 mm |
| Operating Temperature | - 25°C…+ 70°C (Without freeze) |
| Mechanical Protection | IP67 |
