| Nominal sensing distance | 2,6m |
| Thermal drift of Sr | ≤10% Sr |
| Repeat Accuracy | 5% |
| Sensitivity adjustment | Trimmer |
| Function Principle | Polarized |
| Notes | On RL110 reflector |
| Optic position | Radial 90° |
| Output type | PNP NO+NC |
| Output Function | NO+NC |
| Switching frequency | 250Hz |
| Response time | 2ms |
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 30mA |
| Load current | ≤50mA |
| Leakage current | ≤10μA |
| Output voltage drop | ≤2V@Iload=50mA |
| Max ripple content | ≤10% |
| LED indicators | Yellow (status output) |
| Time delay before availability | ≤200ms |
| Short-circuit protection | Short circuit (autoreset), Overvoltage |
| Reverse Polarity Protection | Polarity inversal, Inpulsive voltage |
| Emission | LED Red (660nm) |
| Interference to external light | 5000lux (incandescent lamp), 10000lux (sunlight) |

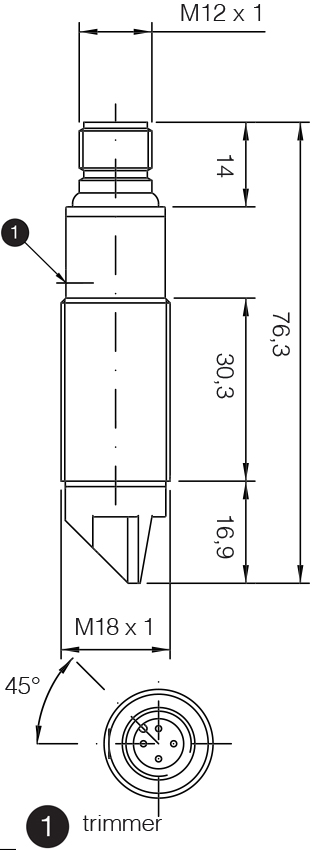

| Dimensions | M18 x 1/L=76,3mm |
| Housing material | Nickel plated brass / PC plug |
| Weight | 40g |
| Connections | M12 plug |
| Active Head Material | PMMA |
| Tightening torque | 25Nm |
| Operating temperature | - 25°C…+ 70° C (Without freeze) |
| Diameter/Dimension | M18 |
| Approvals | CE |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP67 |
| Supplied Accessories | nuts M18 x 1, screwdriver |
| Dimensions | M18 x 1/L=76,3mm |
| Operating Temperature | - 25°C…+ 70°C (Without freeze) |
| Mechanical Protection | IP67 |
