| Nominal sensing distance | 3mm |
| minimum detectable object | 2mm |
| Sensitivity adjustment | Teach-in |
| +/-50 µm a 150m/min | +/-50 µm at 150m/min |
| 200 m/min | 200 m/min |
| 2mm | 2mm |

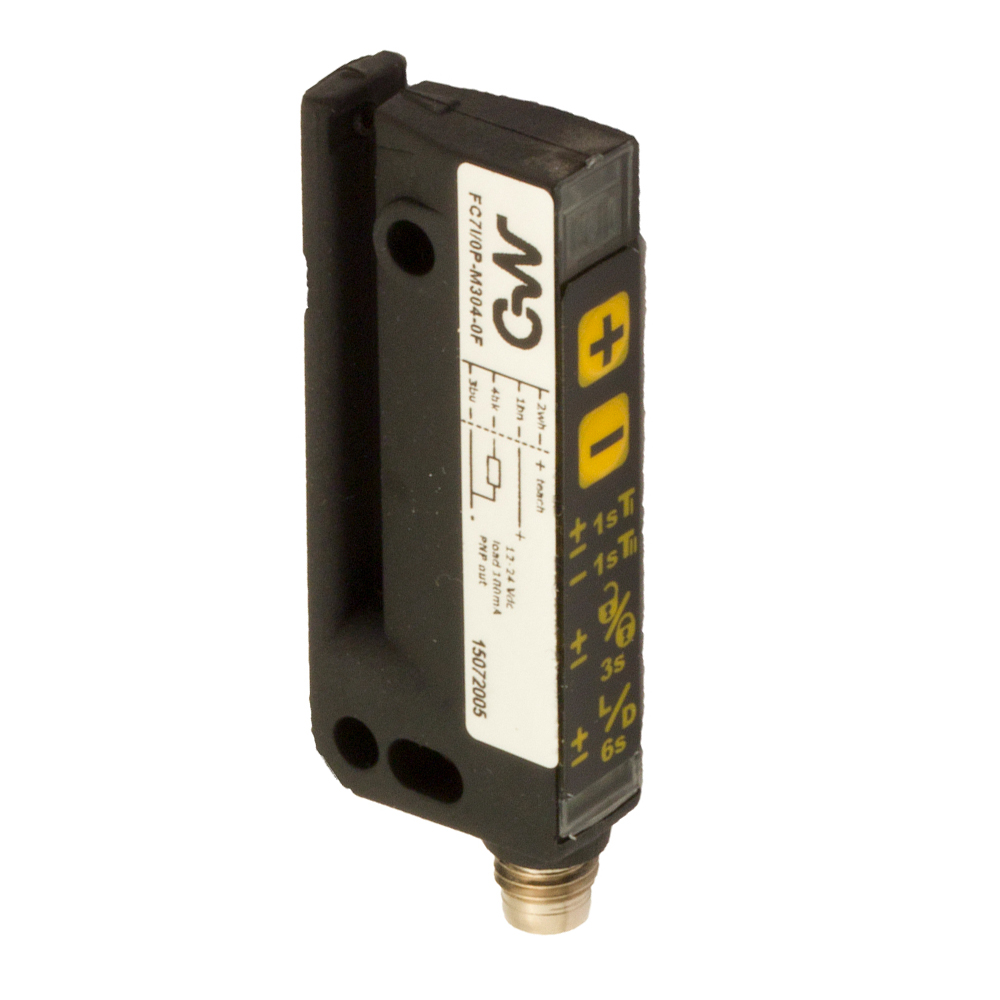

| Function Principle | Photoelectric slot |
| Output type | NPN / PNP L/D Selectable |
| Output Function | L/D Selectable |
| Switching frequency | 10Khz |
| Response time | 50 µs |
| Operating Voltage | 12...24VDC |
| No-Load supply current | ≤ 35mA |
| Load current | ≤100mA |
| Output voltage drop | ≤2V@Iload=100mA |
| Max ripple content | ≤10% |
| LED indicators | Yellow (status output), Red (adjustment or block keypad) |
| Time delay before availability | ≤200ms |
| Reverse Polarity Protection | Yes |
| Emission | LED Infrared |

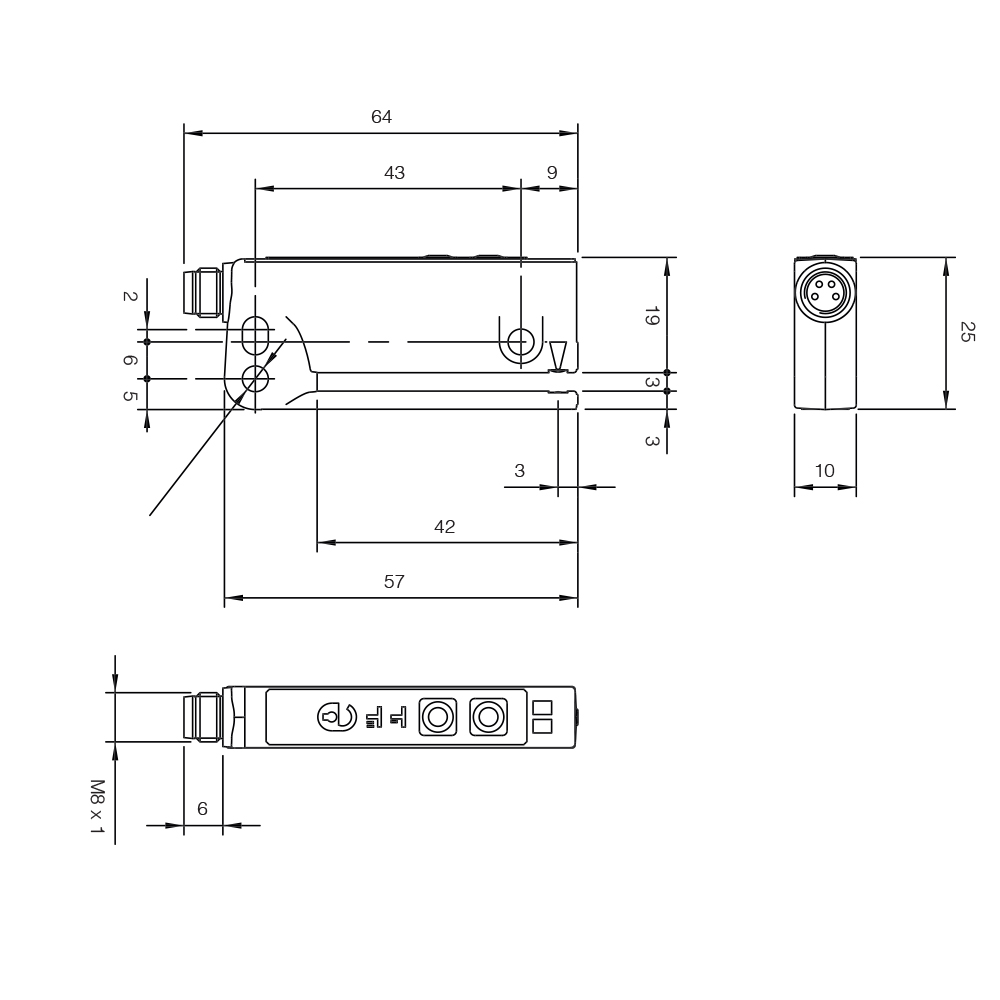

| Dimensions | Width slot detection 3mm - Depth slot detection 42mm |
| Weight | 35g |
| Housing Material | PA |

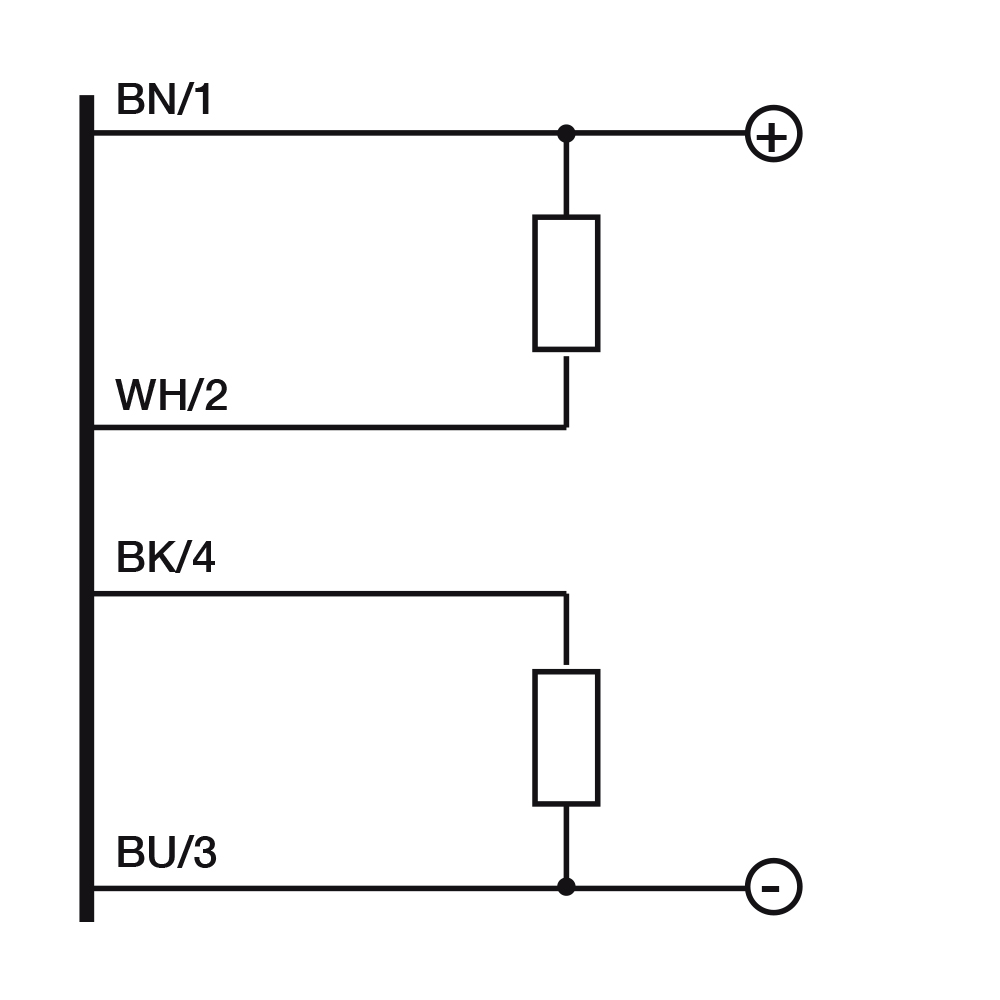

| Connections | M8 plug 4pin |
| Operating temperature | - 20°C…+ 60°C |
| Storage temperature | - 30°C…+ 80°C |
| Width slot detection | 3mm |
| Depth slot detection | 42mm |
| Approvals | CE UL |
| EMC compatibility | EN 60947-5-2 |
| Degree of protection | IP65 |
| Dimensions | Width slot detection 3mm - Depth slot detection 42mm |
| Operating Temperature | - 20°C…+ 60°C (Without freeze) |
| Mechanical Protection | IP65 |
