| Nominal sensing distance | 80mm |
| minimum detectable object | 0.2mm |
| Sensitivity adjustment | Teach-in |
| Function Principle | Photoelectric slot |

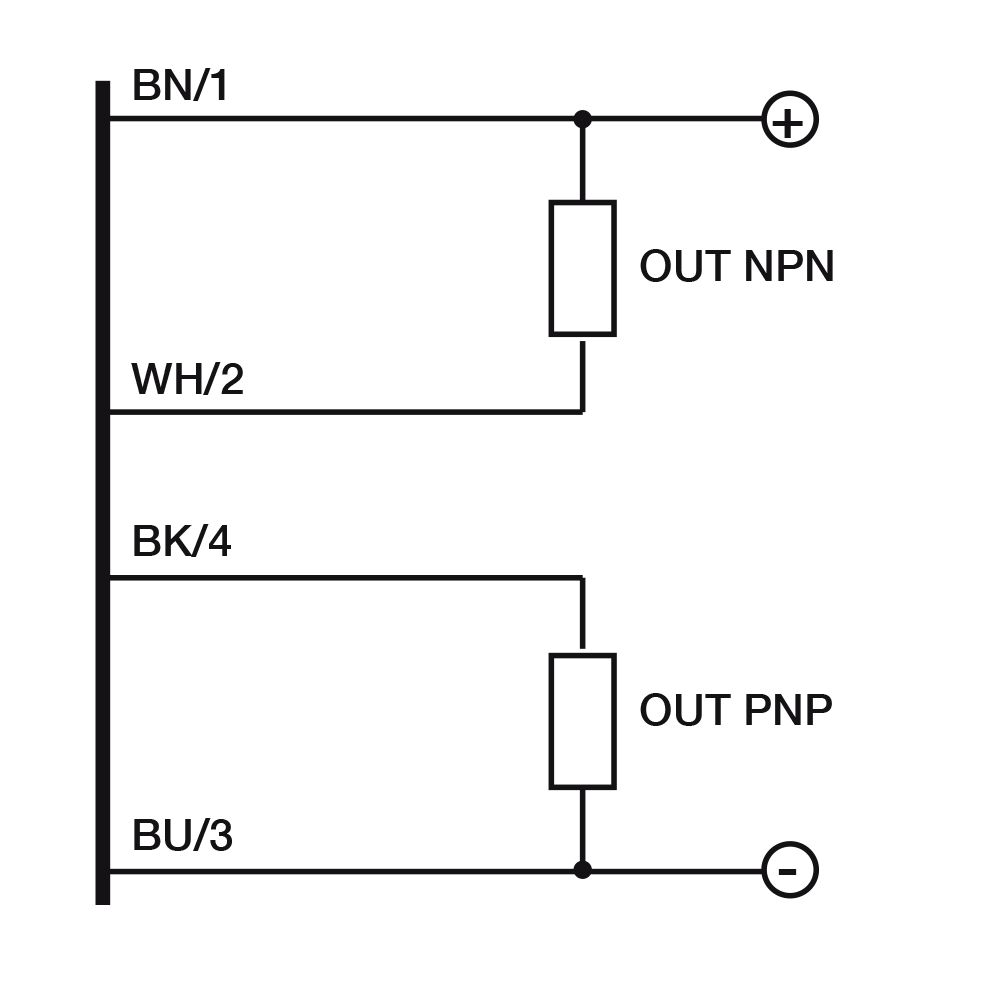

| Output type | NPN / PNP L/D Selectable |
| Output Function | L/D Selectable |
| Switching frequency | 10kHz |
| Response time | 50 µs |
| Operating Voltage | 12...24VDC |
| No-Load supply current | ≤ 40mA |
| Load current | ≤100mA |
| Output voltage drop | ≤2V@Iload=100mA |
| Max ripple content | ≤10% |
| LED indicators | Yellow (status output), Red (adjustment or block keypad) |
| Time delay before availability | ≤200ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED Infrared |
| Interference to external light | 5000lux (incandescent lamp), 10000lux (sunlight) |

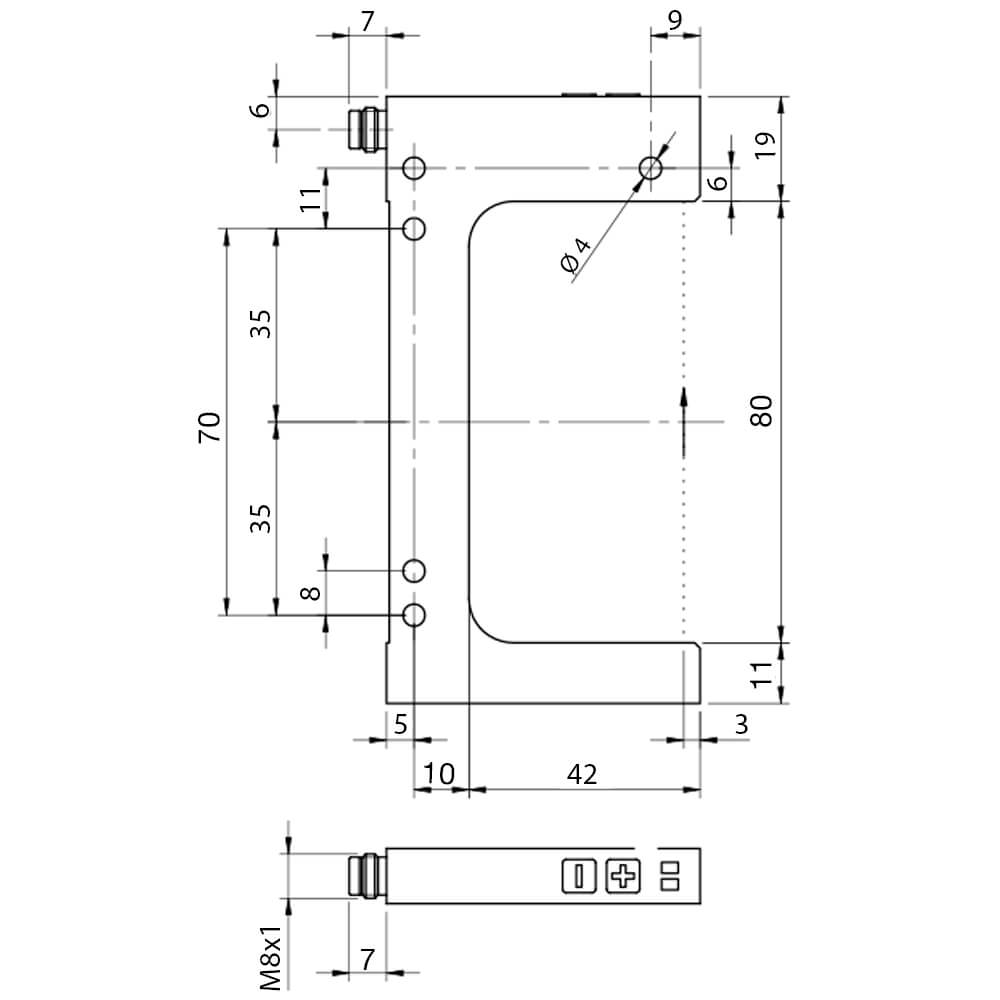

| Dimensions | Width slot detection 80mm - Depth slot detection 42mm |
| Weight | 80g |
| Housing Material | Painted aluminium |

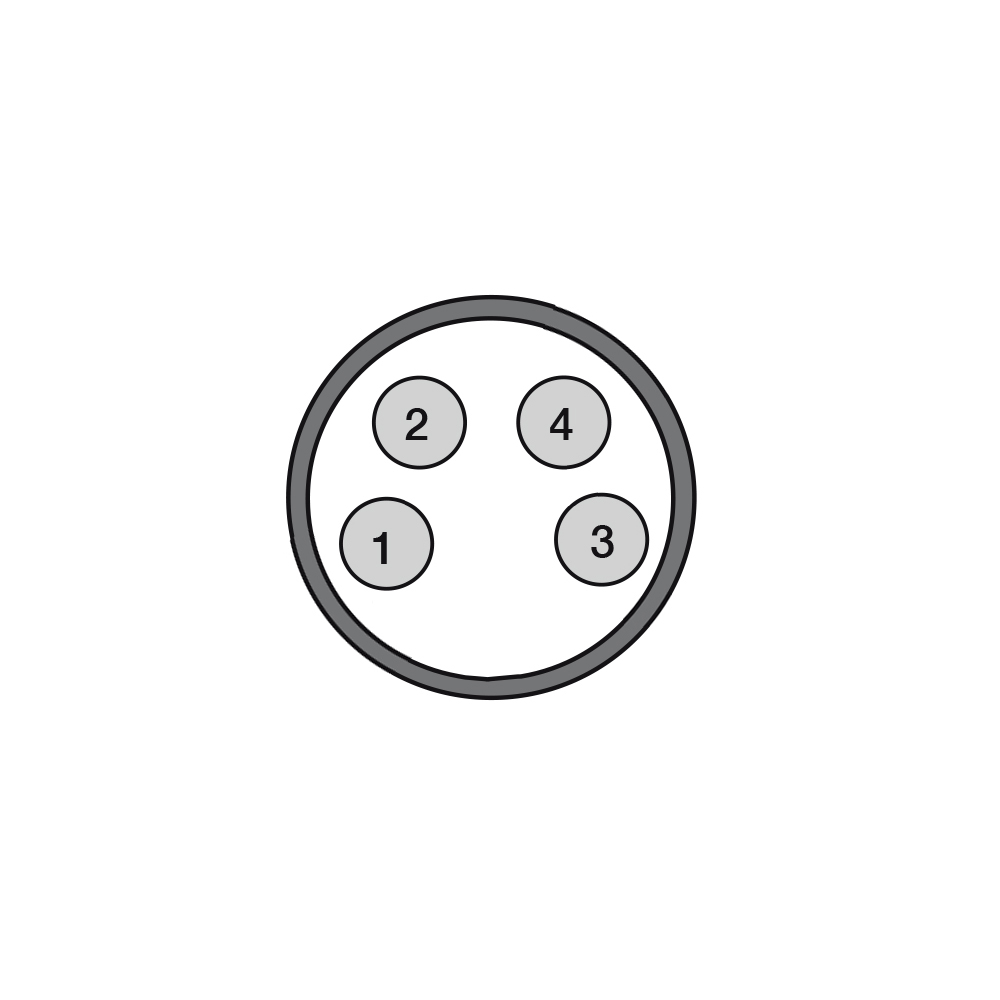

| Connections | M8 plug 4pin |
| Active Head Material | Polyamide/glass |
| Operating temperature | - 20°C…+ 60°C |
| Storage temperature | - 30°C…+ 80°C |
| Width slot detection | 80mm |
| Depth slot detection | 42mm |
| Approvals | CE UL |
| EMC compatibility | EN 60947-5-2 |
| Degree of protection | IP65 |
| Dimensions | Width slot detection 80mm - Depth slot detection 42mm |
| Operating Temperature | - 10°C…+ 60°C (Without freeze) |
| Mechanical Protection | IP65 |
