| Beam angle | ± 15° |
| Sensibility | 1 sheet of 80g/m2 white paper |
| Tilting hysteresis | 7mm |
| Optics diameter | 3mm |
| Output type | 2 x complementary PNP |
| Switching frequency | 100 hz with 1/1 dark-light |
| Sampling period | 4ms |
| 4 optical scan period | 600µs |
| Response time outputs ONO and ONC | 4,7ms |
| Response time contact output A | 8ms (open); 500ms (close) |
| Operating Voltage | 10...30Vdc |
| No-Load supply current | ≤ 70mA |
| Load current | ≤ 300mA |
| Leakage current | ≤ 10µA |
| Output voltage drop | ≤ 2,5V @ Iload = 100mA |
| Max ripple content | < 5Vpp |
| Emission | infrared |
| Interference to external light | 10000 lux (artificial light) |
| Optical power class | 1 (no danger) |
| Maximum capacitance load | 300mA |
| Test input levels (expected, but not connected) | LO ≤ 5V (or open), HI * 15V according to IEC61131-2 (2007) |
| VDE protection class | III (max. voltage 50VAC), 500V (insulation) |
| Output A (alarm) | Electromechanical contact, 1A, 30Vdc, no short circuit protection |

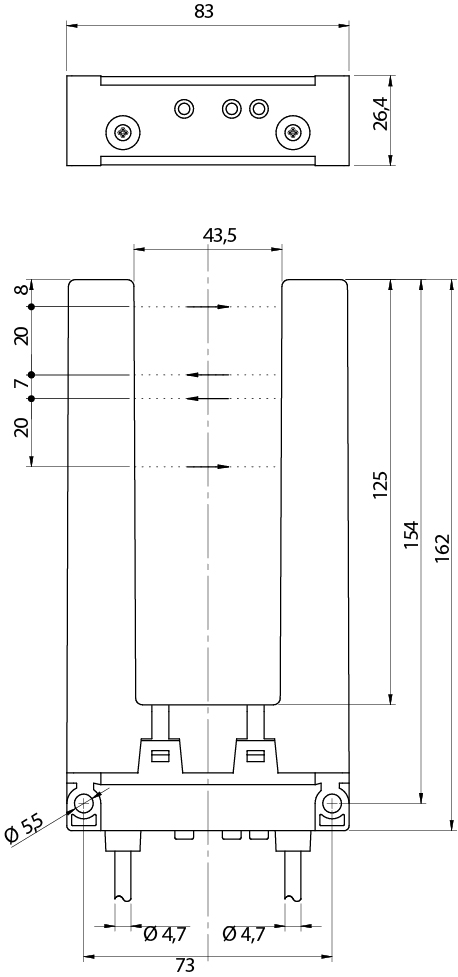

| Dimensions | 26,4 x 83 x 162mm |
| Housing material | PC |
| Weight | 200g |
| Connections | 2 x pigtail M12 |
| Operating temperature | -20°C … + 55°C |
| Storage temperature | -40°C … +75°C |
| Humidity | 15% … 95% |
| Approvals | CE |
| EMC compatibility | Conforming with EMC directive according with EN60947-5-2 |
| Shocks and vibrations | shock resistance according to IEC60068-2-27: 3 axes x 6, half sine, Acc: 30g; Dur: 11s vibration resistance according IEC60068-2-6: freq:10…55hz; Ampl:0,5mm; Sweep:5min; Fr: 3x30min |
| Degree of protection | IP67 |
| Dimensions | 26,4 x 83 x 162mm |
| Operating Temperature | -20°C … + 55°C |
| Humidity | 15% … 95% |
| Mechanical Protection | IP67 |
