| Nominal sensing distance | 50m |
| Thermal drift of Sr | ≤10% Sr |
| Repeat Accuracy | 5% |
| Function Principle | Emitter with check |
| Emitter/Receiver | Emitter |
| Check Input | BK/2 connected to 0Vdc swithing off the emission |
| Optic position | Radial 90° |
| Output type |
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 25mA |
| Max ripple content | ≤10% |
| LED indicators | Green (power ON) yellow (Emiss. ON) yellow(Emiss. OFF) |
| Time delay before availability | ≤200ms |
| Reverse Polarity Protection | Polarity inversal, Inpulsive voltage |
| Emission | LASER Red (650nm) class1 |

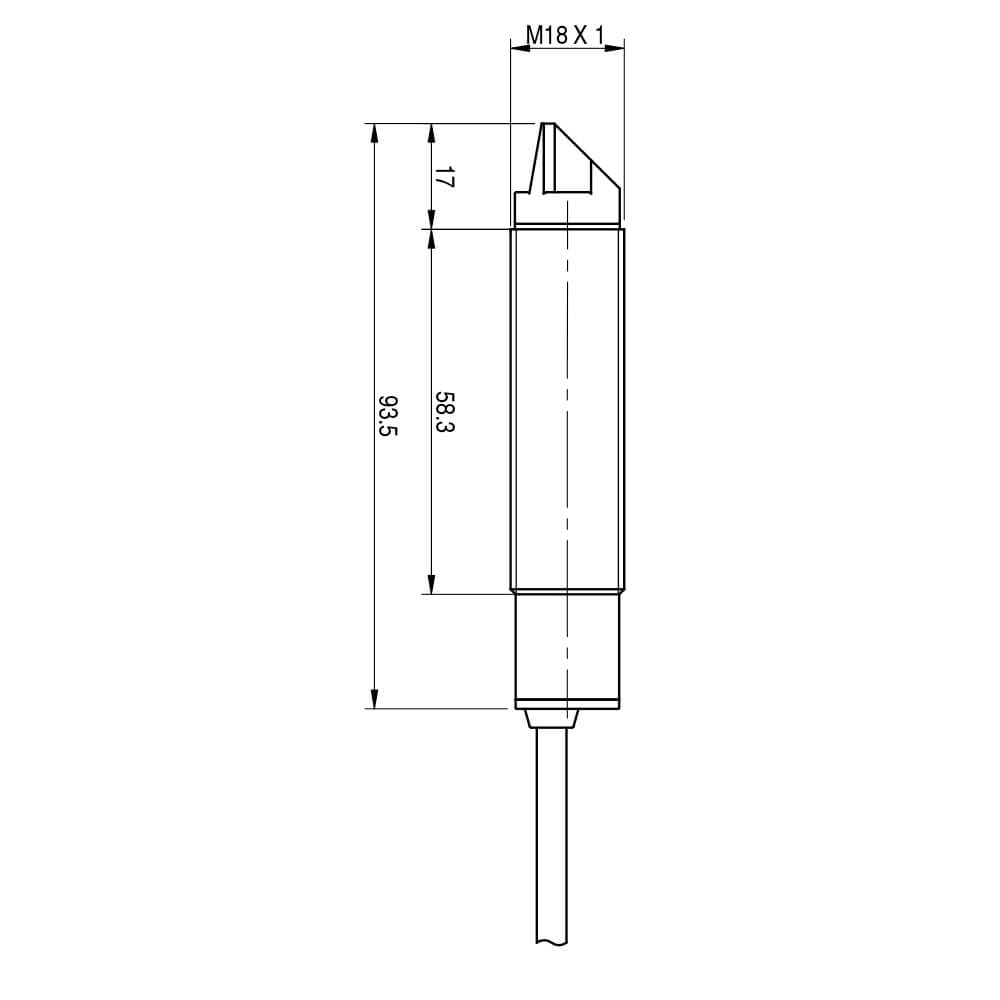

| Dimensions | M18 x 1/L=93,5mm |
| Housing material | PBT/ PC cable exit |
| Weight | 50g |
| Connections | 2m PVC cable |
| Active Head Material | Glass / PC |
| Tightening torque | 1Nm |
| Operating temperature | - 15°C…+ 55° C (Without freeze) |
| Diameter/Dimension | M18 |
| Approvals | CE cULus |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP67 |
| Supplied Accessories | nuts M18 x 1 |
| Dimensions | M18 x 1/L=93,5mm |
| Operating Temperature | - 15°C...+ 55°C (Without freeze) |
| Mechanical Protection | IP67 |
