| Nominal sensing distance | 15m |
| Thermal drift of Sr | ≤10% Sr |
| Repeat Accuracy | 5% |
| Sensitivity adjustment | No |
| Function Principle | Emitter with check |
| Emitter/Receiver | Emitter |

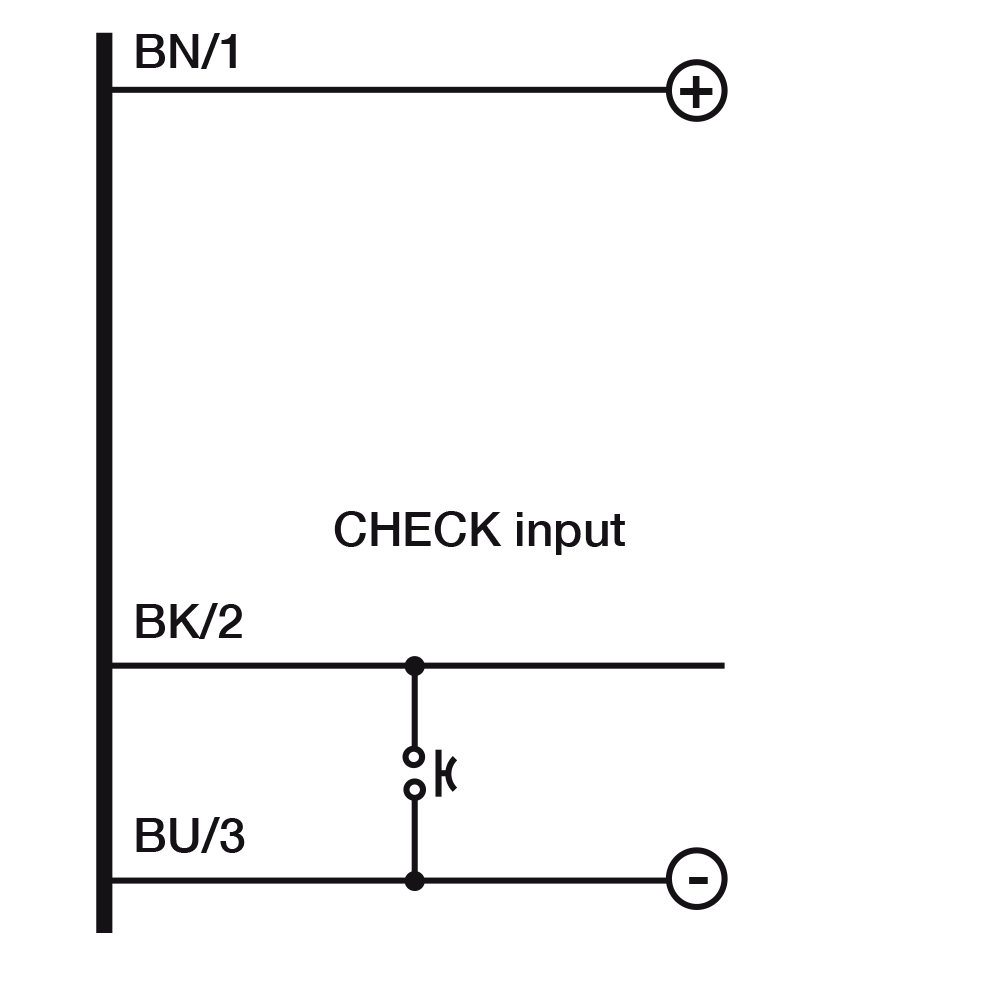

| Check Input | BK/2 connected to 0Vdc swithing off the emission |
| Optic position | Radial 90° |
| Output type | |
| Switching frequency | 250Hz |
| Response time | 2ms |
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 25mA |
| Max ripple content | ≤10% |
| LED indicators | Yellow (powerON) |
| Time delay before availability | ≤200ms |
| Reverse Polarity Protection | Polarity inversal, Inpulsive voltage |
| Emission | LED Infrared (880nm) |
| Dimensions | M18 x 1/L=92,7mm |
| Weight | 100g |
| Housing Material | Nickel plated brass / PC plug |
| Connections | M12 plug |
| Active Head Material | PC |
| Tightening torque | 25Nm |
| Operating temperature | - 25°C…+ 70° C (Without freeze) |
| Diameter/Dimension | M18 |
| Approvals | CE cULus |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP67 |
| Supplied Accessories | nuts M18 x 1 |
| Dimensions | M18 x 1/L=92,7mm |
| Operating Temperature | - 25°C…+ 70°C (Without freeze) |
| Mechanical Protection | IP67 |
