| Nominal sensing distance | 2m |
| Thermal drift of Sr | ≤10%Sr |
| Sensitivity adjustment | No |
| Function Principle | Emitter |
| Notes | (EG=4) |
| Emitter/Receiver | Emitter |
| Optic position | Axial |
| Output type |
| Operating Voltage | 15…37VDC |
| No-Load supply current | ≤ 10mA |
| Max ripple content | ≤10% |
| LED indicators | Yellow (Supply) |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED Infrared (880nm) |
| Impulsive Overvoltage Protection | Yes |

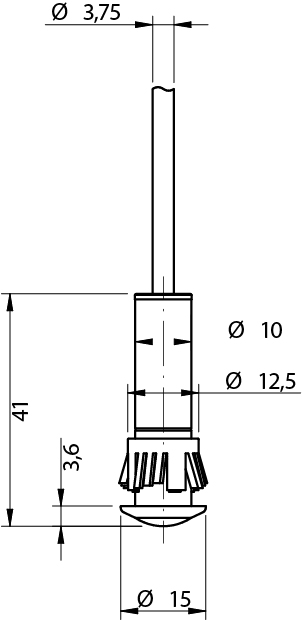

| Dimensions | M10x1/L=41mm |
| Weight | 210g |
| Housing Material | PC housing / POM fixing ring / ABS cable exit |
| Connections | 7m PVC cable |
| Active Head Material | PC |
| Operating temperature | - 25°C…+ 70° C (without freeze) |
| Diameter/Dimension | Ø 10mm |
| Approvals | CE |
| EMC compatibility | EN 60947-5-3 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP67 |
| Dimensions | M10x1/L=41mm |
| Operating Temperature | - 25°C…+ 70°C (Without freeze) |
| Mechanical Protection | IP67 |
