| Nominal sensing distance | 0,3 … 3m |
| Beams space | 5mm |
| controlled height | 160mm |
| minimum detectable object | Ø 1,5mm |
| number of rays | 33 |
| Sensitivity adjustment | Teach-in by wire |
| Function Principle | emitter/receiver |
| Output type | PNP |
| Output Function | NO/NC |
| Switching frequency | 75Hz |
| Operating Voltage | 16,8... 30Vdc |
| No-Load supply current | ≤330mA |
| Load current | < 100mA |
| Leakage current | ≤ 10µA |
| Output voltage drop | < 1,5V @ 100mA |
| Max ripple content | < 1,2Vpp |
| LED indicators | Blue, red and yellow (emitter) - green, red and yellow (receiver) |
| Time delay before availability | 200ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | Infrared (850nm) |
| Interference to external light | IEC EN 60947-5-2 |
| Impulsive Overvoltage Protection | Yes |

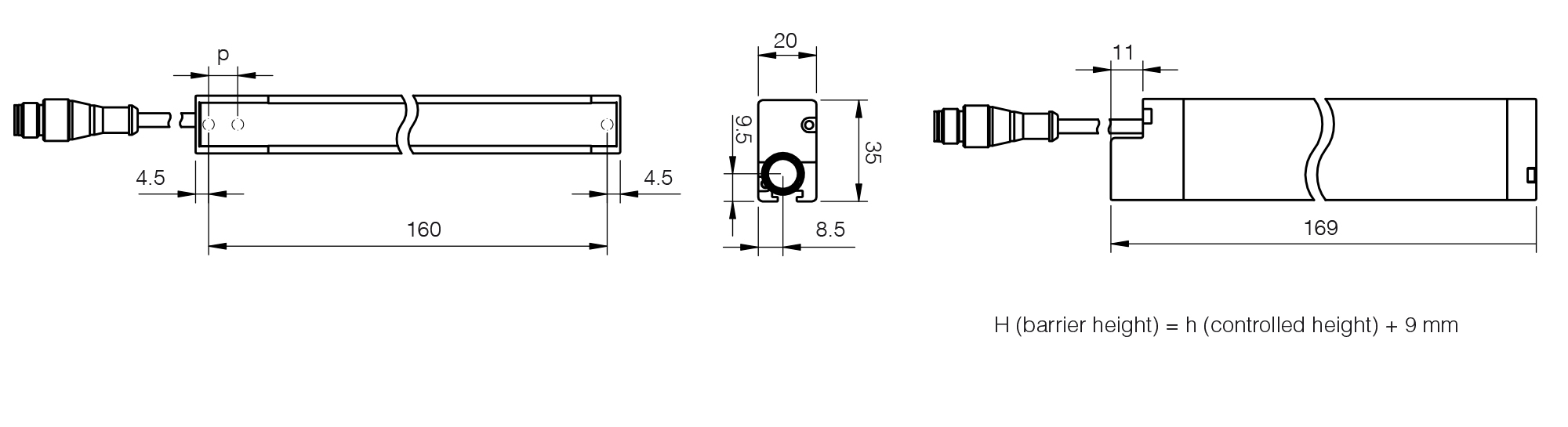

| Dimensions | 20mm x 169mm x 35mm |
| Weight | 450g |
| Housing Material | Aluminium |

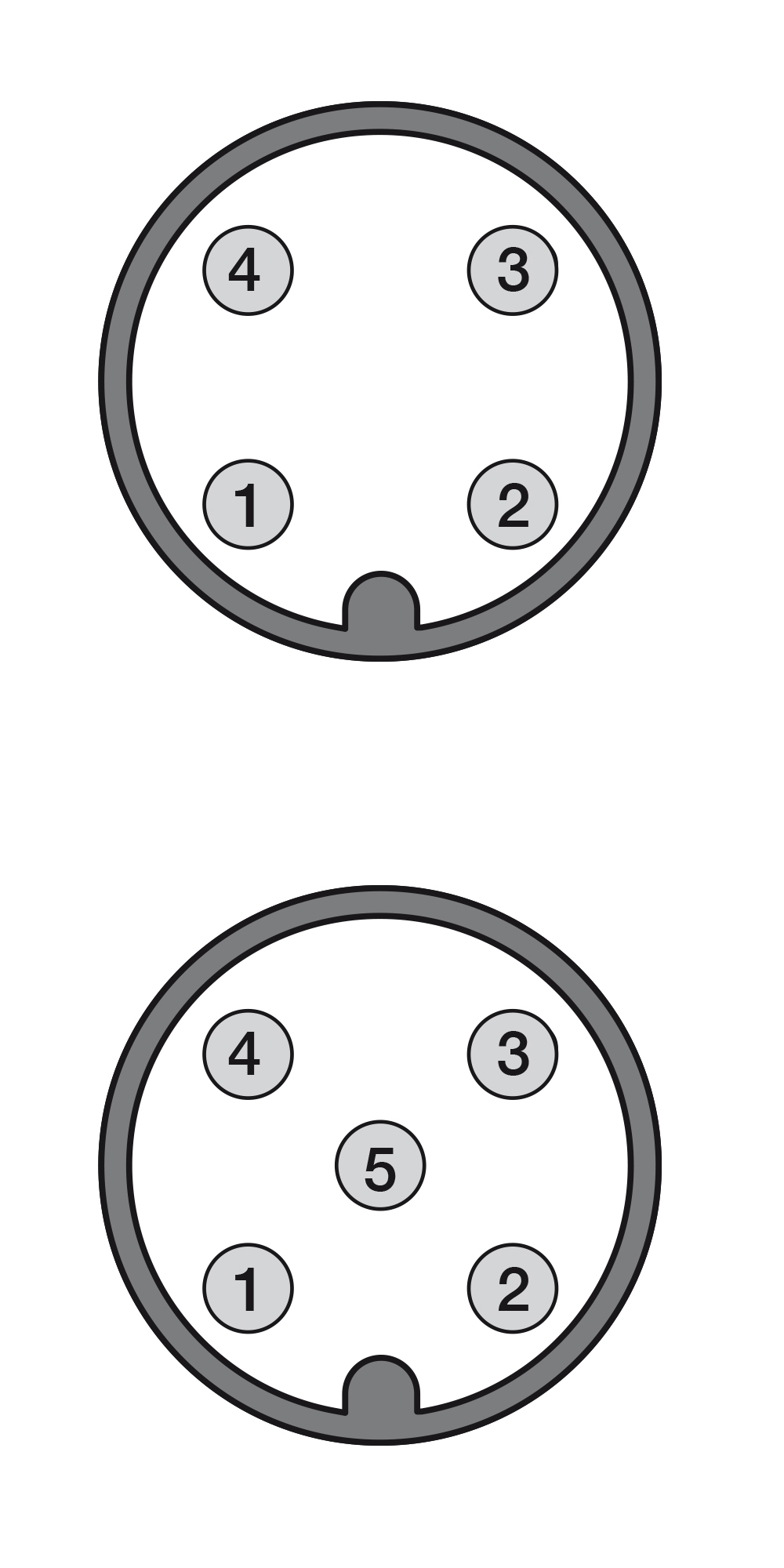

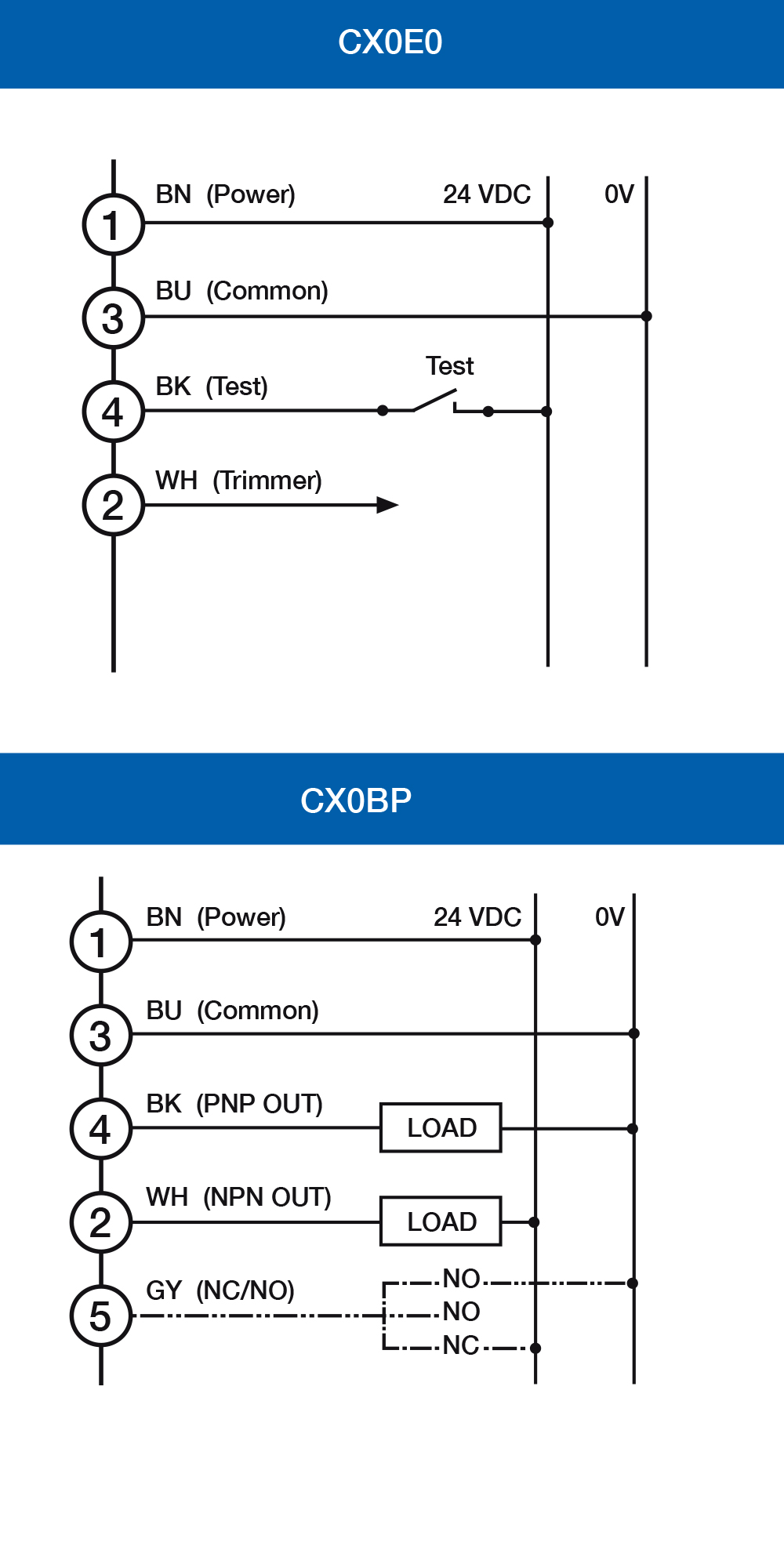

| Connections | M12 4pin + cable PVC 200mm ; M12 5pin + cable PVC 200mm |
| Active Head Material | PMMA |
| Operating temperature | -10°C…+ 55° C (without freeze) |
| Storage temperature | - 25°C…+ 60° C (without freeze) |
| Approvals | CE, cULus |
| EMC compatibility | IEC 60947-5-2 |
| Shocks and vibrations | IEC EN 60947-5-2 |
| Degree of protection | IP67 |
| Supplied Accessories | ST151 fixing kit |
| Dimensions | 169x36x20 |
| Operating Temperature | -10°C…+ 55° C (without freeze) |
| Mechanical Protection | IP67 |
