CF

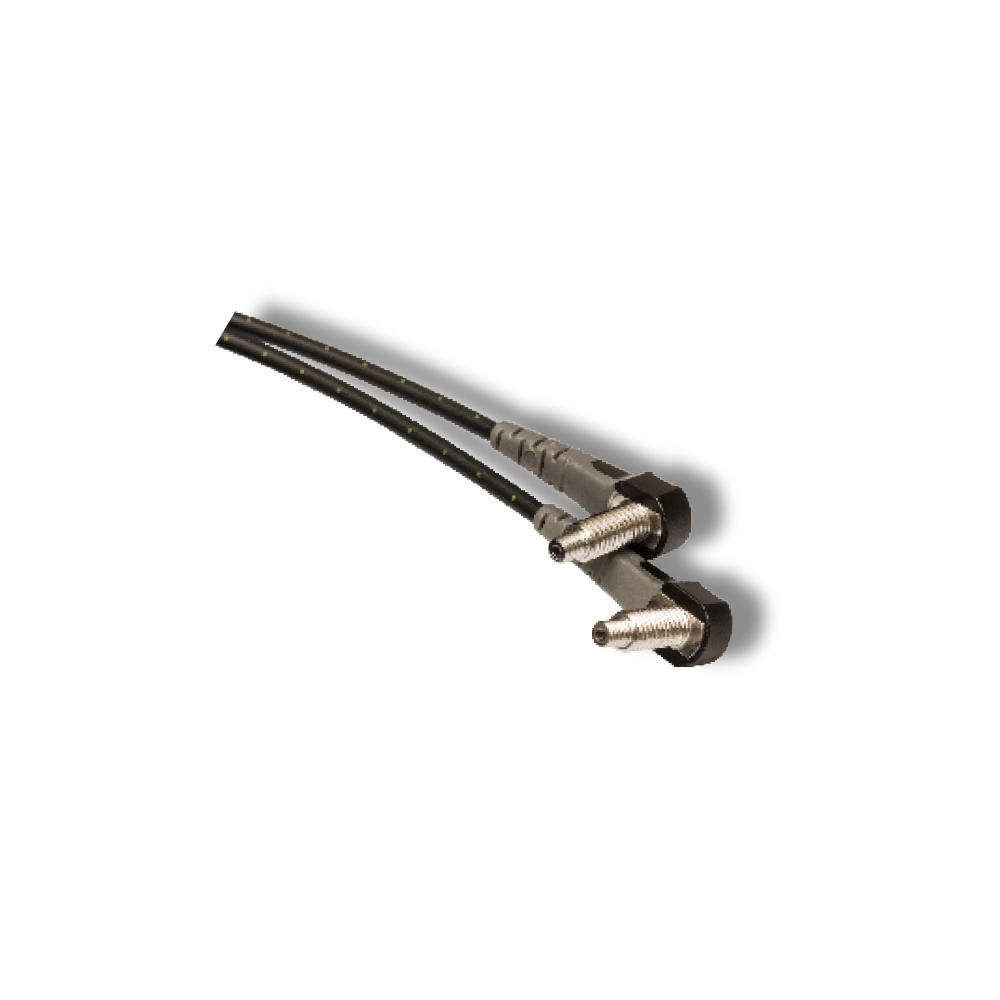

CF/TR-M4-210

Optical fibre,E+R,90°,Plastic,2m
Plastic optical fibre,Emitter+Receiver, 90°, M4, L = 1m, core 1 mm, cuttable

Plastic optical fibres

Overview

  • Wide range of models: ultra slim for small object, long distances, spiral tube for handling
  • Wide range of flexible fibre heads (with sleeve)
  • Wide range of cutting fibre units
  • P67 protection degree
  • SSF – FS1 – FX3 – FX4 series connectable
  • Approvals: CE

Technical Features

Detection properties
Distance with SSF 275 mm
Distance with FS1 140 mm
Distance with FX3 680 mm
Distance with FX4 900 mm
Distance with F1R 480 mm
Distance with FY2 300 mm
Distance with FY3 320 mm
Application
Function Principle Emitter + Receiver
Description Plastic optical fibres
Optic position 90°
Mechanical data
Operating temperature -55°C....+70°C (posa fissa)
Fibre lengh (m) 2
Ø optical fibre core 1 mm
Head shape M4
Optical fibre material PE, plastic
Head material Stainless steel
Test/Approvals
Degree of protection IP67
Generical Data
Operating Temperature -55°C....+70°C (posa fissa)
Mechanical Protection IP67
