CF

CF/TR-H6-210

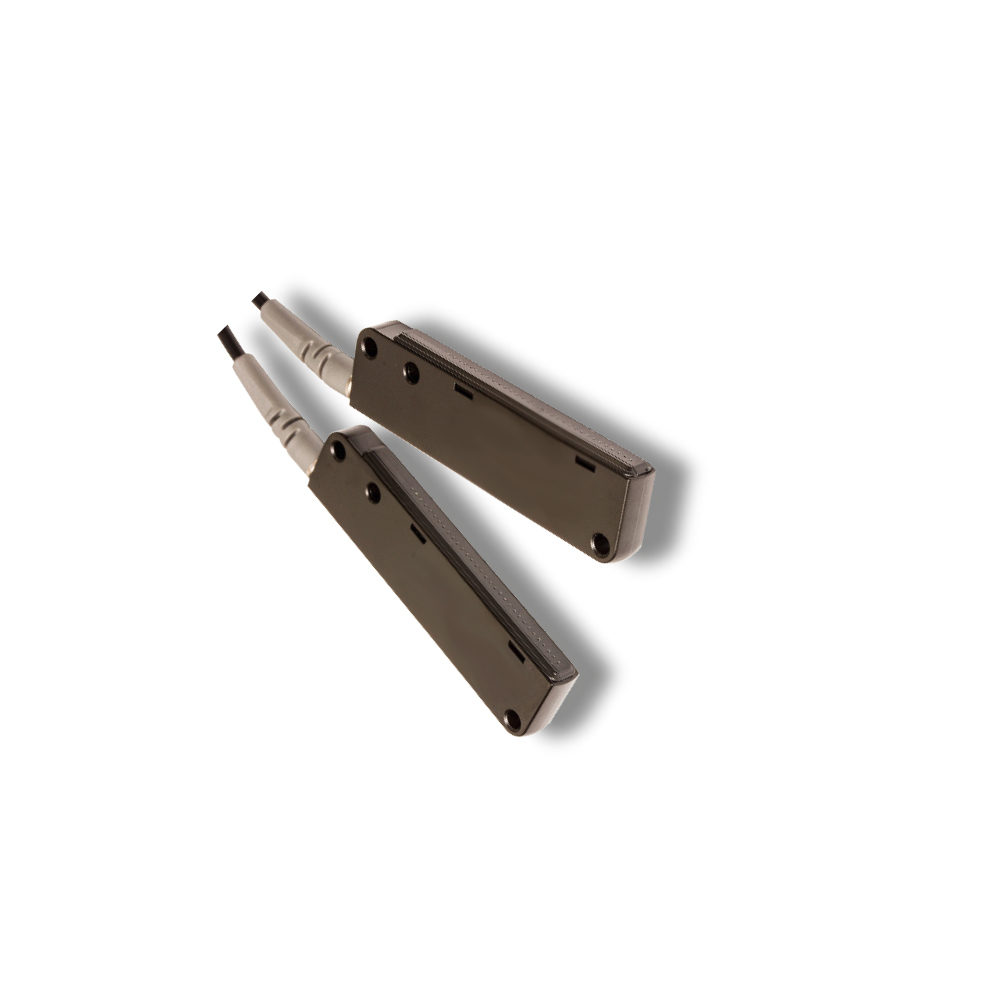

Optical fibre,E+R Area,90°,Plastic,2m
Plastic optical fibre,Emitter+Receiver, 90°, Area - h = 60 mm, L = 2m, core 1 mm, not cuttable

Plastic optical fibres

Overview

  • Wide range of models: ultra slim for small object, long distances, spiral tube for handling
  • Wide range of flexible fibre heads (with sleeve)
  • Wide range of cutting fibre units
  • P67 protection degree
  • SSF – FS1 – FX3 – FX4 series connectable
  • Approvals: CE

Technical Features

Detection properties
Distance with SSF 450 mm
Distance with FS1 30 mm
Distance with FX3 760 mm
Distance with FX4 1050 mm
Distance with F1R 550 mm
Distance with FY2 450 mm
Distance with FY3 490 mm
Application
Function Principle Area (Emitter + Receiver)
Description Plastic optical fibres
Optic position 90°
Mechanical data
Operating temperature -55°C....+70°C (posa fissa)
Fibre lengh (m) 2
Ø optical fibre core 1 mm
Head shape 60 x 6 x 17 mm
Optical fibre material plastic
Head material plastic
Test/Approvals
Degree of protection IP67
Generical Data
Operating Temperature -55°C....+70°C (posa fissa)
Mechanical Protection IP67

Downloads for CF/TR-H6-210
