Home > Products > Sensors > Sensor accessories > Optic fibers > CF > CF/TA-H2-210

CF

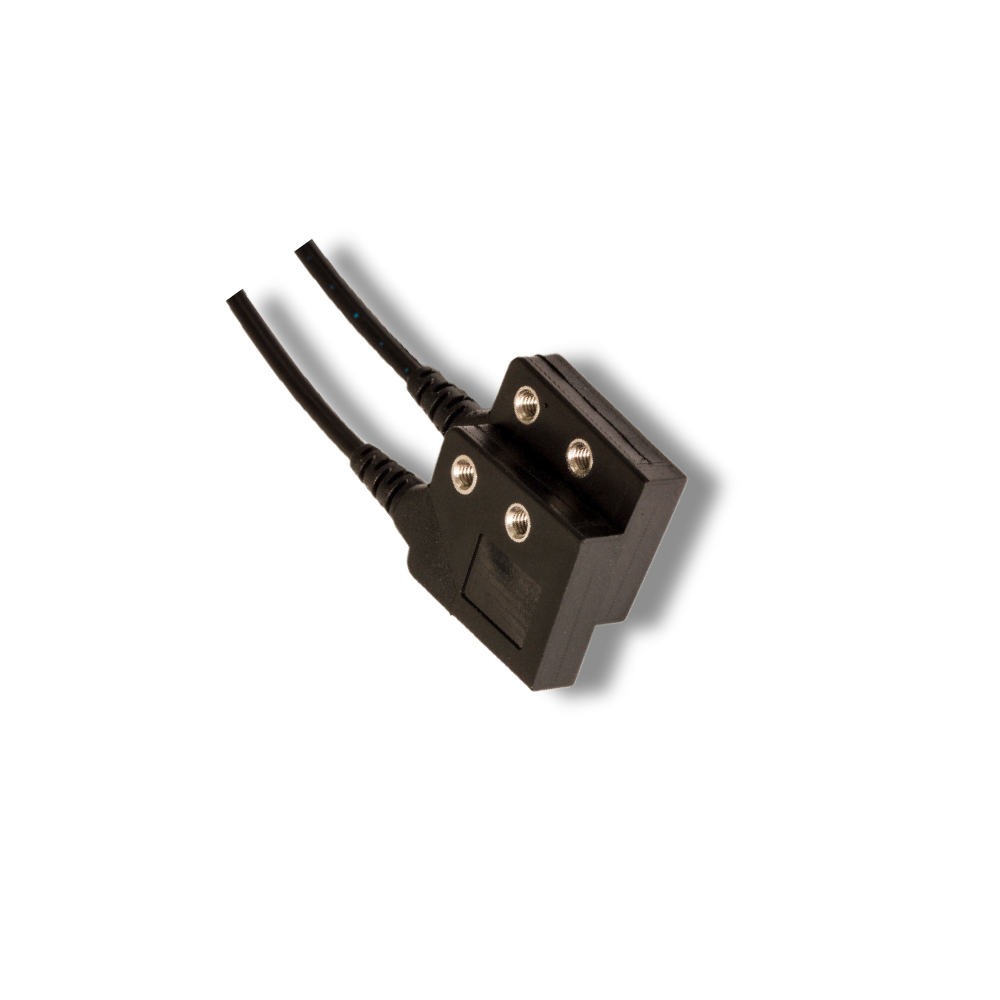

CF/TA-H2-210

Optical fibre,E+R Area,Axial,Plastic,2m
Plastic optical fibre,Emitter+Receiver, Axial, Area - h = 20 mm, L = 2m, core 1 mm, not cuttable

Plastic optical fibres

Overview

  • Wide range of models: ultra slim for small object, long distances, spiral tube for handling
  • Wide range of flexible fibre heads (with sleeve)
  • Wide range of cutting fibre units
  • P67 protection degree
  • SSF – FS1 – FX3 – FX4 series connectable
  • Approvals: CE

Technical Features

Detection properties
Distance with SSF 430 mm
Distance with FS1 45 mm
Distance with FX3 730 mm
Distance with FX4 950 mm
Distance with F1R 510 mm
Distance with FY2 400 mm
Distance with FY3 430 mm
Application
Function Principle Area (Emitter + Receiver)
Description Plastic optical fibres
Optic position Axial
Mechanical data
Operating temperature -55°C....+70°C (posa fissa)
Fibre lengh (m) 2
Ø optical fibre core 1 mm
Head shape 19 x 6 x 25 mm
Optical fibre material plastic
Head material plastic
Test/Approvals
Degree of protection IP67
Generical Data
Operating Temperature -55°C....+70°C (posa fissa)
Mechanical Protection IP67

Downloads for CF/TA-H2-210
