CF/RC9-20

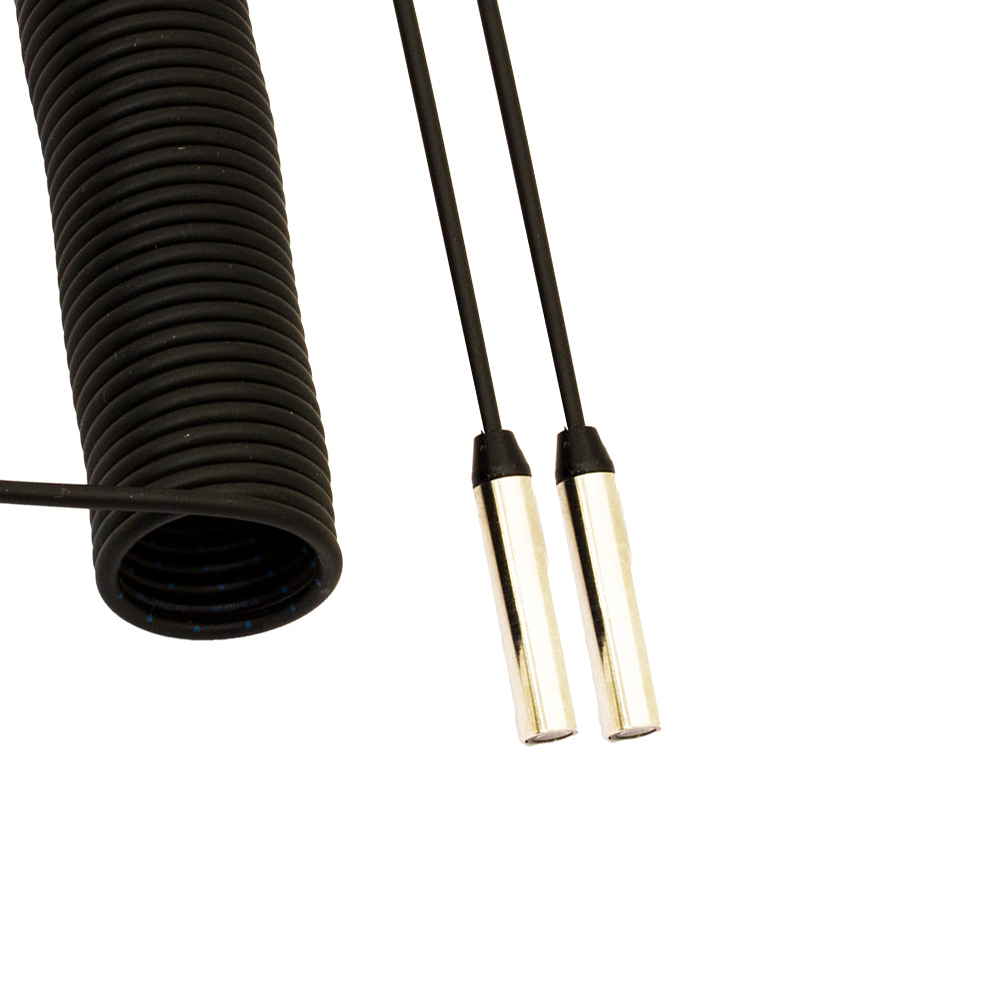

Optical fibre,E+R,Axial,Plastic,2m
Optical fibre cutable Em./Receiver 2 m spir

Plastic optical fibres

Overview

  • Wide range of models: ultra slim for small object, long distances, spiral tube for handling
  • Wide range of flexible fibre heads (with sleeve)
  • Wide range of cutting fibre units
  • P67 protection degree
  • SSF – FS1 – FX3 – FX4 series connectable
  • Approvals: CE

Technical Features

Detection properties
Distance with SSF 1.000 mm
Distance with FS1 1.000 mm
Distance with FX3 6.000 mm
Distance with FX4 8.000 mm
Distance with F1R 2.200 mm
Application
Function Principle Emitter + Receiver
Description Plastic optical fibres
Optic position Axial
Mechanical data
Operating temperature -40°C....+70°C (posa fissa)
Fibre lengh (m) 2
Ø optical fibre core 1 mm spiralata
Head shape Ø 6 with lenti
Optical fibre material PE, plastic
Head material nickel-plated brass
Test/Approvals
Degree of protection IP67
Generical Data
Operating Temperature -40°C....+70°C (posa fissa)
Mechanical Protection IP67

Others

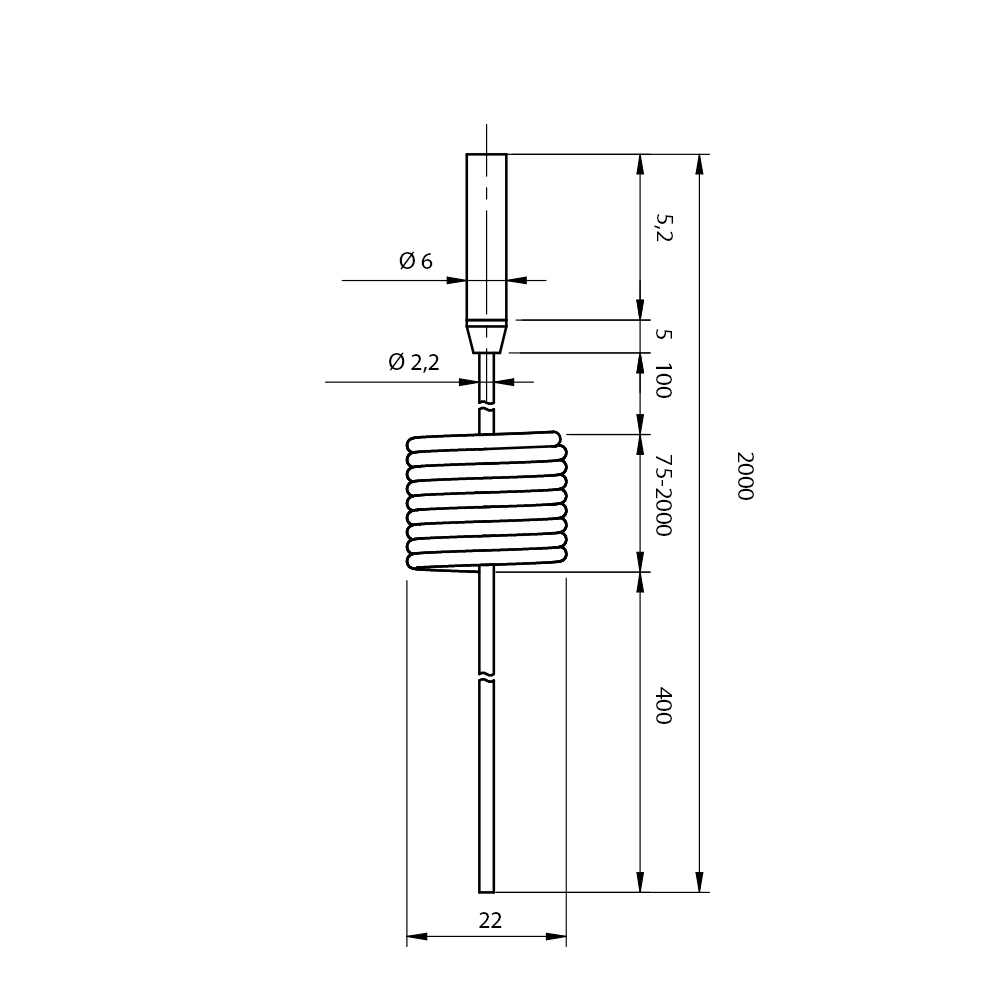

Dimensions
