Home > Products > Sensors > Sensor accessories > Optic fibers > CF > CF/DR-F3-205

CF

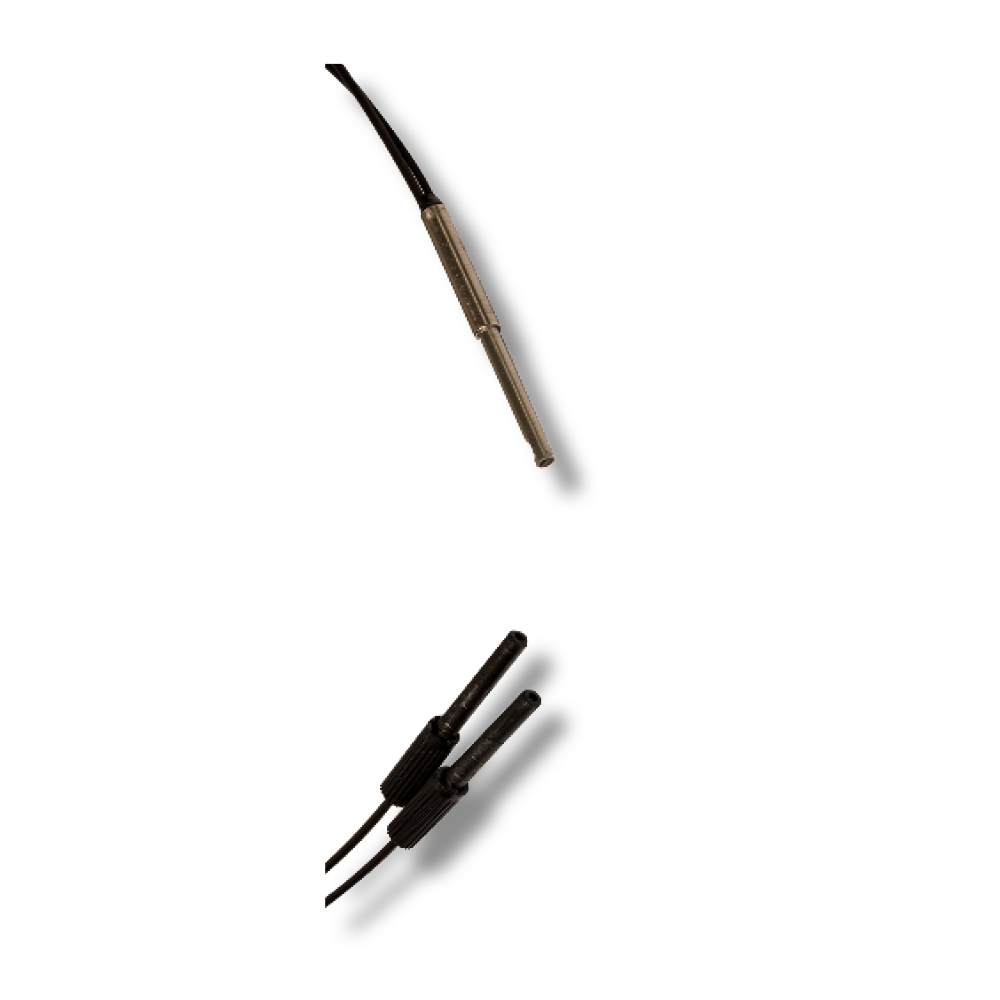

CF/DR-F3-205

Optical fibre,Diff.,90°,Plastic,2m
Plastic optical fibre, Diffuse, 90°, diametro 3 mm, L = 2m, core 0,5 mm, cuttable

Plastic optical fibres

Overview

  • Wide range of models: ultra slim for small object, long distances, spiral tube for handling
  • Wide range of flexible fibre heads (with sleeve)
  • Wide range of cutting fibre units
  • P67 protection degree
  • SSF – FS1 – FX3 – FX4 series connectable
  • Approvals: CE

Technical Features

Detection properties
Distance with SSF ---
Distance with FS1 ---
Distance with FX3 38 mm
Distance with FX4 45 mm
Distance with F1R 15 mm
Distance with FY2 10 mm
Distance with FY3 11 mm
Application
Function Principle Diffusione diretta
Description Plastic optical fibres
Optic position 90°
Mechanical data
Operating temperature -40°C....+70°C (posa fissa)
Fibre lengh (m) 2
Ø optical fibre core 0,5 mm
Head shape Ø2
Optical fibre material PE, plastic
Head material nickel-plated brass
Test/Approvals
Degree of protection IP67
Generical Data
Operating Temperature -40°C....+70°C (posa fissa)
Mechanical Protection IP67

Downloads for CF/DR-F3-205
