Home > Products > Sensors > Sensor accessories > Optic fibers > CF > CF/CC1-20

CF

CF/CC1-20

Optical fibre,Diff.,Axial,Plastic,2m
Optical fibre cutable scanner 2 m SPIR

Plastic optical fibres

Overview

  • Wide range of models: ultra slim for small object, long distances, spiral tube for handling
  • Wide range of flexible fibre heads (with sleeve)
  • Wide range of cutting fibre units
  • P67 protection degree
  • SSF – FS1 – FX3 – FX4 series connectable
  • Approvals: CE

Technical Features

Detection properties
Distance with SSF 15 mm
Distance with FS1 15 mm
Distance with FX3 70 mm
Distance with FX4 100 mm
Distance with F1R 50 mm
Application
Function Principle Diffuse reflection
Description Plastic optical fibres
Optic position Axial
Mechanical data
Operating temperature -40°C....+70°C (posa fissa)
Fibre lengh (m) 2
Ø optical fibre core 1 mm spiralata
Head shape M6
Optical fibre material PE, plastic
Head material nickel-plated brass
Test/Approvals
Degree of protection IP67
Generical Data
Operating Temperature -40°C....+70°C (posa fissa)
Mechanical Protection IP67

Others

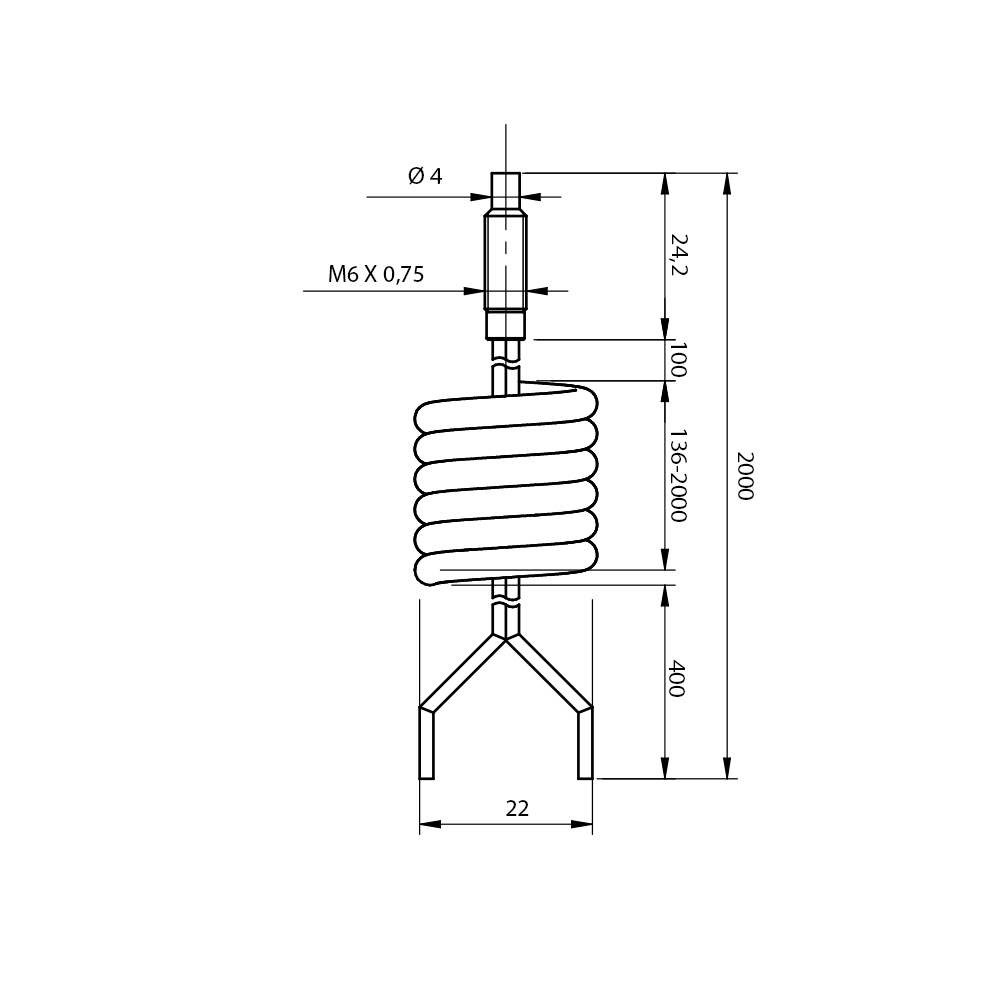

Dimensions

Downloads for CF/CC1-20
