CF

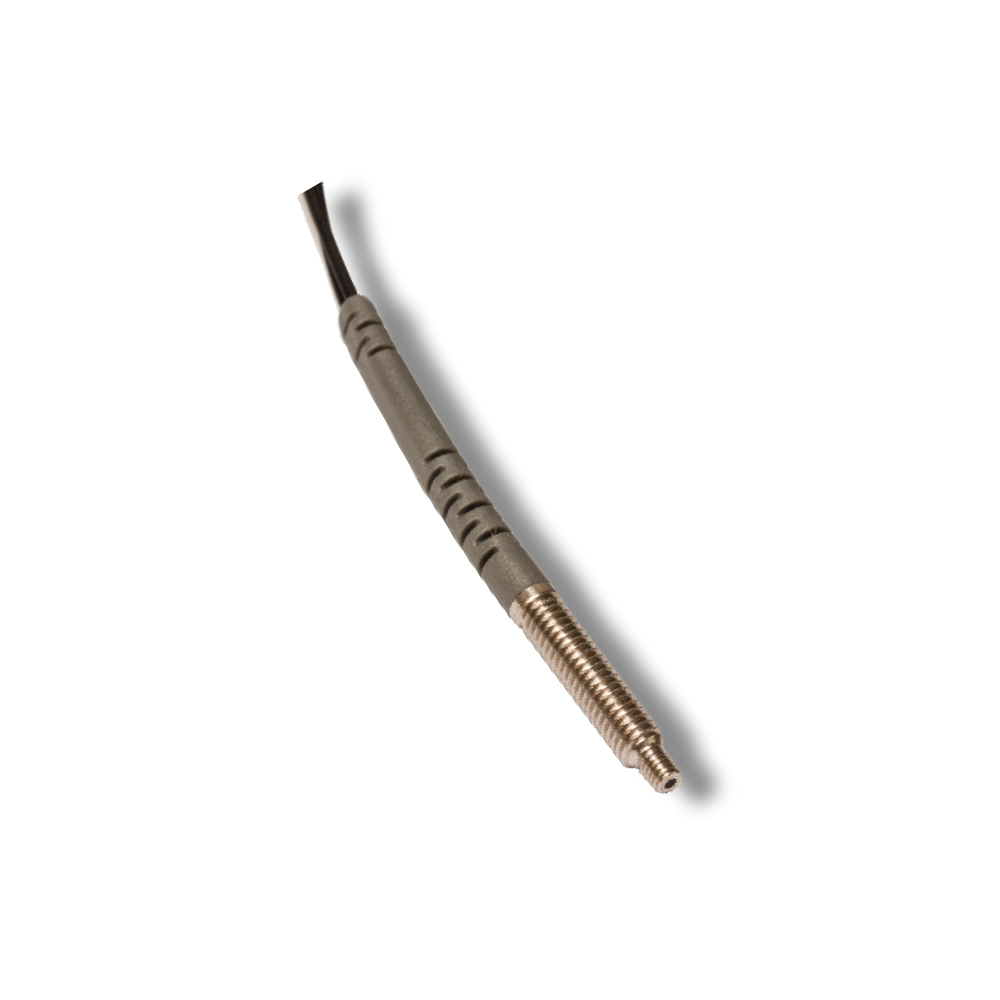

CF/CA-M4-205

Optical fibre,Diff.,Axial,Plastic,2m
Plastic optical fibre, Coaxial, Axial, M4, L = 2m, core 0,5 mm, not cuttable

Plastic optical fibres

Overview

  • Wide range of models: ultra slim for small object, long distances, spiral tube for handling
  • Wide range of flexible fibre heads (with sleeve)
  • Wide range of cutting fibre units
  • P67 protection degree
  • SSF – FS1 – FX3 – FX4 series connectable
  • Approvals: CE

Technical Features

Detection properties
Distance with SSF ---
Distance with FS1 ---
Distance with FX3 120 mm
Distance with FX4 200 mm
Distance with F1R 80 mm
Distance with FY2 45 mm
Distance with FY3 90 mm
Application
Function Principle Coaxial
Description Plastic optical fibres
Optic position Axial
Mechanical data
Operating temperature -55°C....+70°C (posa fissa)
Fibre lengh (m) 2
Ø optical fibre core 0,5 mm
Head shape M4
Optical fibre material PE, plastic
Head material stainless steel
Test/Approvals
Degree of protection IP67
Generical Data
Operating Temperature -55°C....+70°C (posa fissa)
Mechanical Protection IP67
