Home > Products > Sensors > Sensor accessories > Optic fibers > CF > AF/ER7

CF

AF/ER7

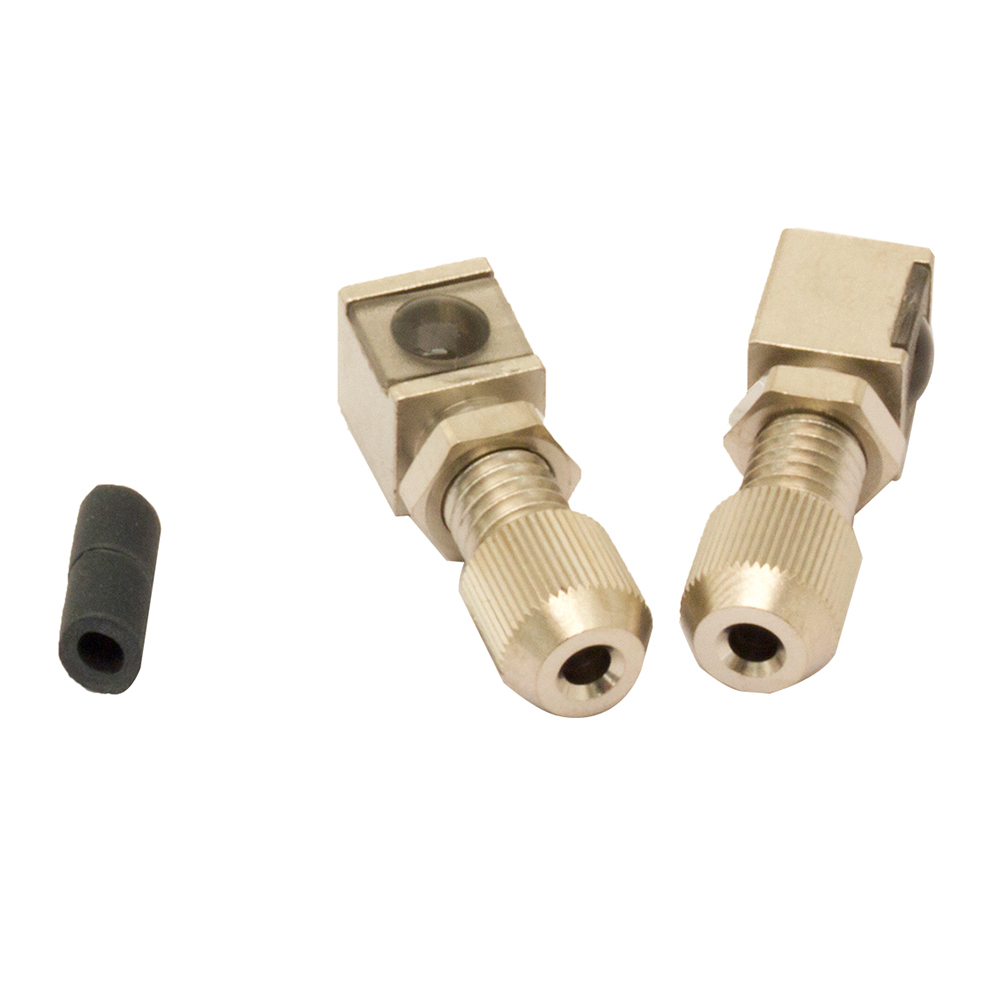

Access,Opt.fibre,Focal. AF/1F,E+R,90°
Termin.S/R fibra core 1 mm 90° 800 mm

Plastic optical fibres

Overview

  • Wide range of models: ultra slim for small object, long distances, spiral tube for handling
  • Wide range of flexible fibre heads (with sleeve)
  • Wide range of cutting fibre units
  • P67 protection degree
  • SSF – FS1 – FX3 – FX4 series connectable
  • Approvals: CE

Technical Features

Detection properties
Distance with SSF 1.000 mm
Distance with FS1 1.000 mm
Distance with FX3 6.000 mm
Distance with FX4 8.000 mm
Distance with F1R 4.500 mm
Application
Function Principle P/R
Fibre model AF/1S
Mechanical data
Operating temperature -40°C....+70°C
Ø optical fibre core 1 mm
- Yes
Ø optical fibre 2,2 mm (plastic)
Material glass, ETM, nickel plated brass
Test/Approvals
Degree of protection IP67 (EN60529)
Generical Data
Operating Temperature -40°C....+70°C
Mechanical Protection IP67 (EN60529)

Others

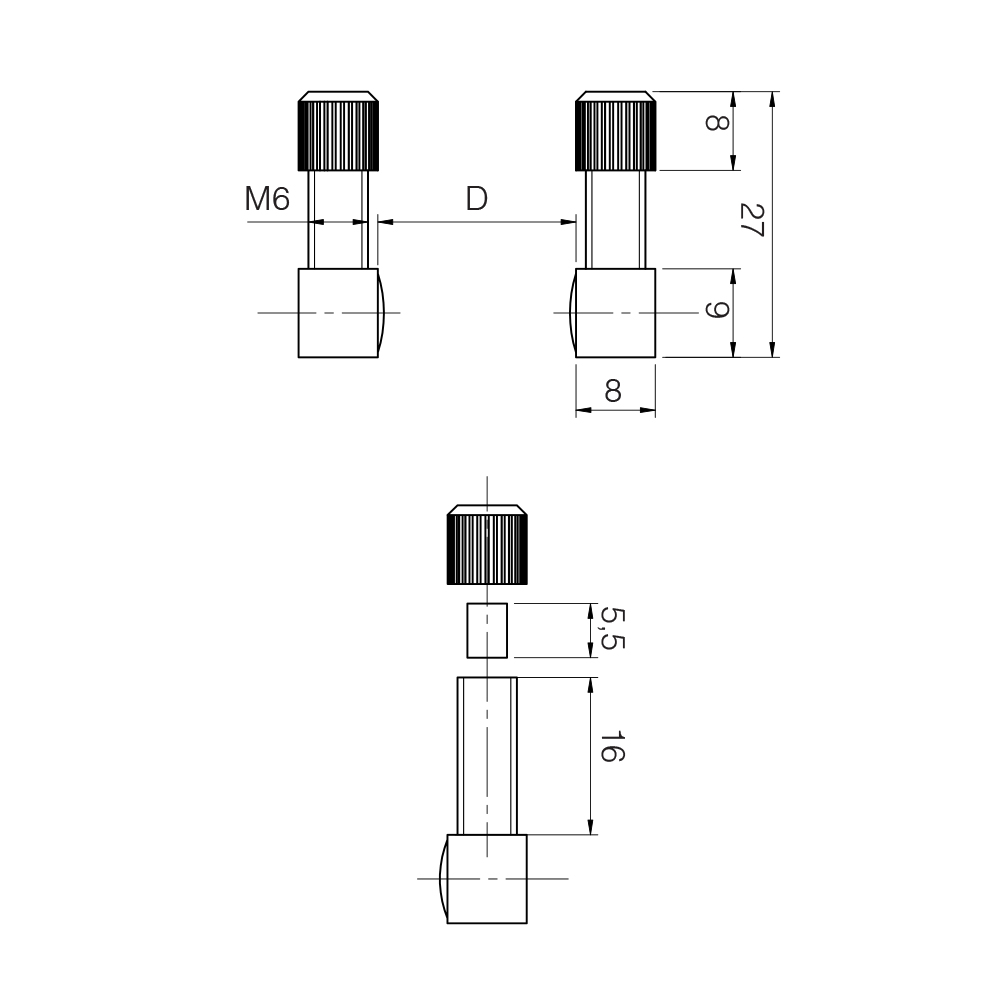

Dimensions

Downloads for AF/ER7
