Home > Products > Sensors > Sensor accessories > Optic fibers > CF > AF/ER2

CF

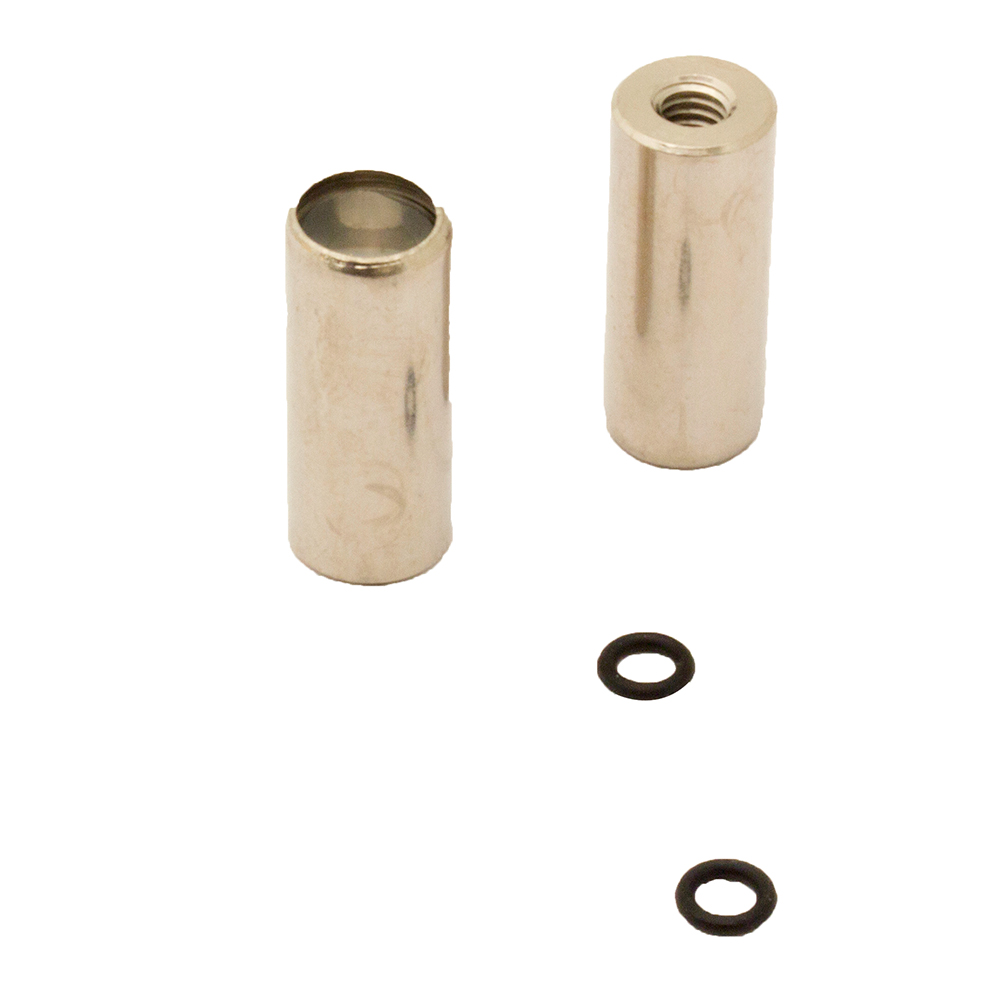

AF/ER2

Access,Opt.fibre,Focaliser CV/RB6,E+R
Focaliser Emitt.Receiver 3000 mm

Plastic optical fibres

Overview

  • Wide range of models: ultra slim for small object, long distances, spiral tube for handling
  • Wide range of flexible fibre heads (with sleeve)
  • Wide range of cutting fibre units
  • P67 protection degree
  • SSF – FS1 – FX3 – FX4 series connectable
  • Approvals: CE

Technical Features

Detection properties
Distance with SSF 3.000 mm
Distance with FS1 3.000 mm
Distance with FX3 8.000 mm
Distance with FX4 10.000 mm
Distance with F1R 410
Application
Function Principle P/R
Fibre model CV/RB6-**
Mechanical data
Material glass, nickel plated brass
Operating temperature -40°C....+250°C
Ø optical fibre core 1
Head shape Ø 8,5 mm
thread M4
Test/Approvals
Degree of protection IP67 (EN60529)
Generical Data
Operating Temperature -40°C....+250°C
Mechanical Protection IP67 (EN60529)

Others

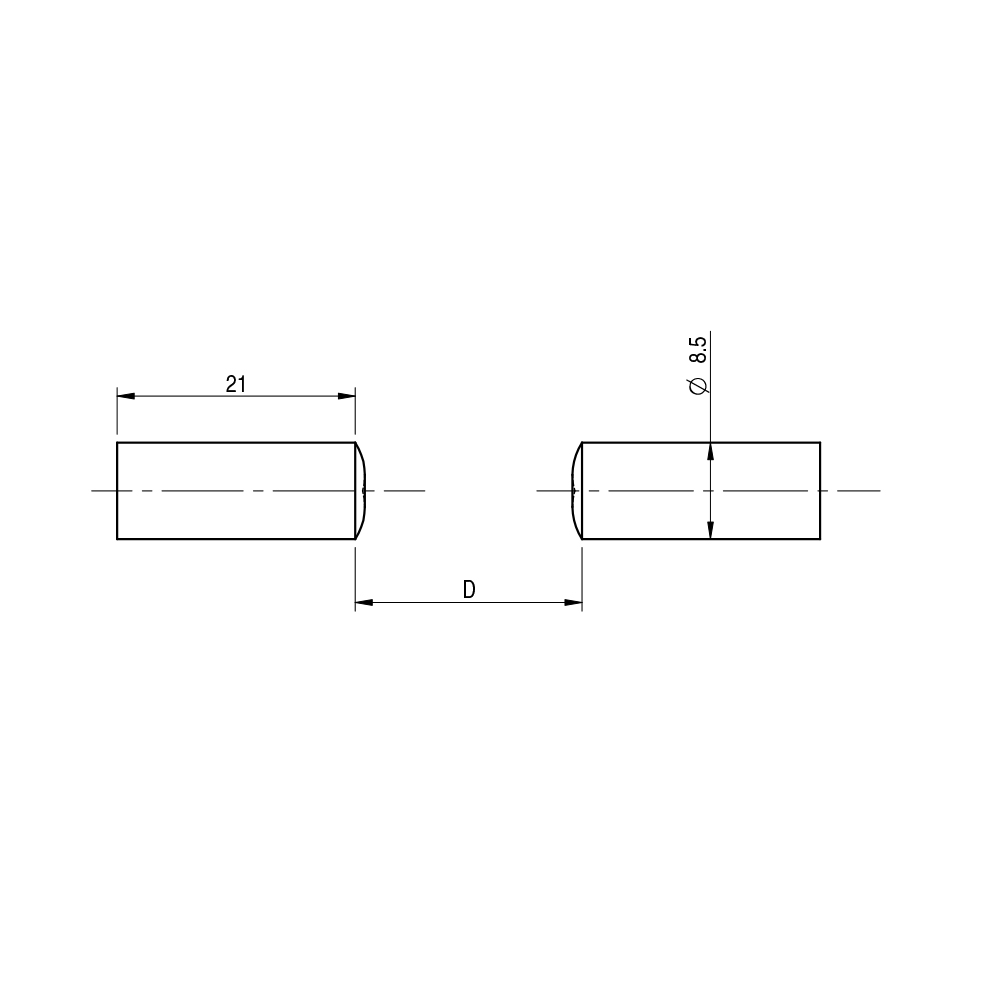

Dimensions

Downloads for AF/ER2
