| Nominal sensing distance | 1,5…10mm |
| Thermal drift of Sr | < 20% |
| Repeat Accuracy | 5% |
| Sensitivity adjustment | Yes |
| Hysteresis | ≤ 20% |
| Output type | PNP with self monitoring |
| Output Function | NO + NC |
| Switching frequency | 300Hz |
| Operating Voltage | 10..30Vdc |
| No-Load supply current | ≤ 17mA |
| Load current | ≤ 100mA |
| Leakage current | ≤ 1μA |
| Output voltage drop | 1,5V - max. IL=100mA |
| Max ripple content | ≤15% |
| LED indicators | Yellow LED (object detected) |
| Time delay before availability | ≤ 200ms |
| Short-circuit protection | Yes, autoreset |
| Reverse Polarity Protection | Yes |
| Impulsive Overvoltage Protection | Yes |

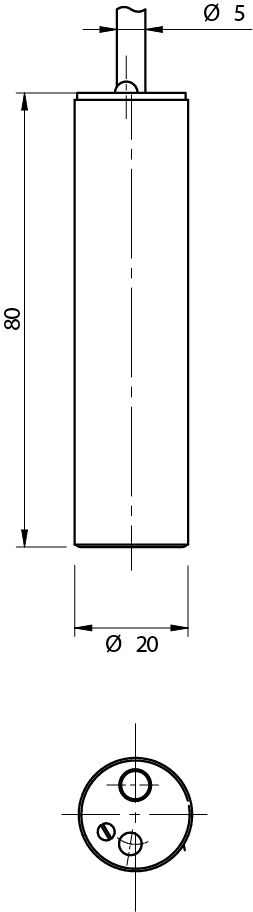

| Dimensions | ø20 / L = 80mm |
| Mounting | Shielded |
| Housing material | AISI 303 Stainless Steel |
| Weight | 200g |
| Connections | 2m PVC cable |
| Active Head Material | LCP |
| Operating temperature | -25°C…+70°C |
| Diameter/Dimension | ø20 |
| Approvals | CE cULus |
| EMC compatibility | IEC 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP65 |
| Supplied Accessories | screw driver |
| Dimensions | ø20 / L = 80mm |
| Operating Temperature | -25°C…+70°C (without freeze) |
| Mechanical Protection | IP65 |
