| Nominal current | 4 A |
| Led | 2 (Supply - PNP output pin 4) |
| Wires | 4 |
| Rated impulse voltage | 2,5 kV |
| Nominal voltage | Max. 250 V ac/dc |
| Connections | With open ended wires |
| Tightening torque | 0,6 Nm |
| Operating temperature | =10°C...+80°C (flexible installation)-25°C...+80°C (fixed installation) |
| Fibre lengh (m) | 2 |

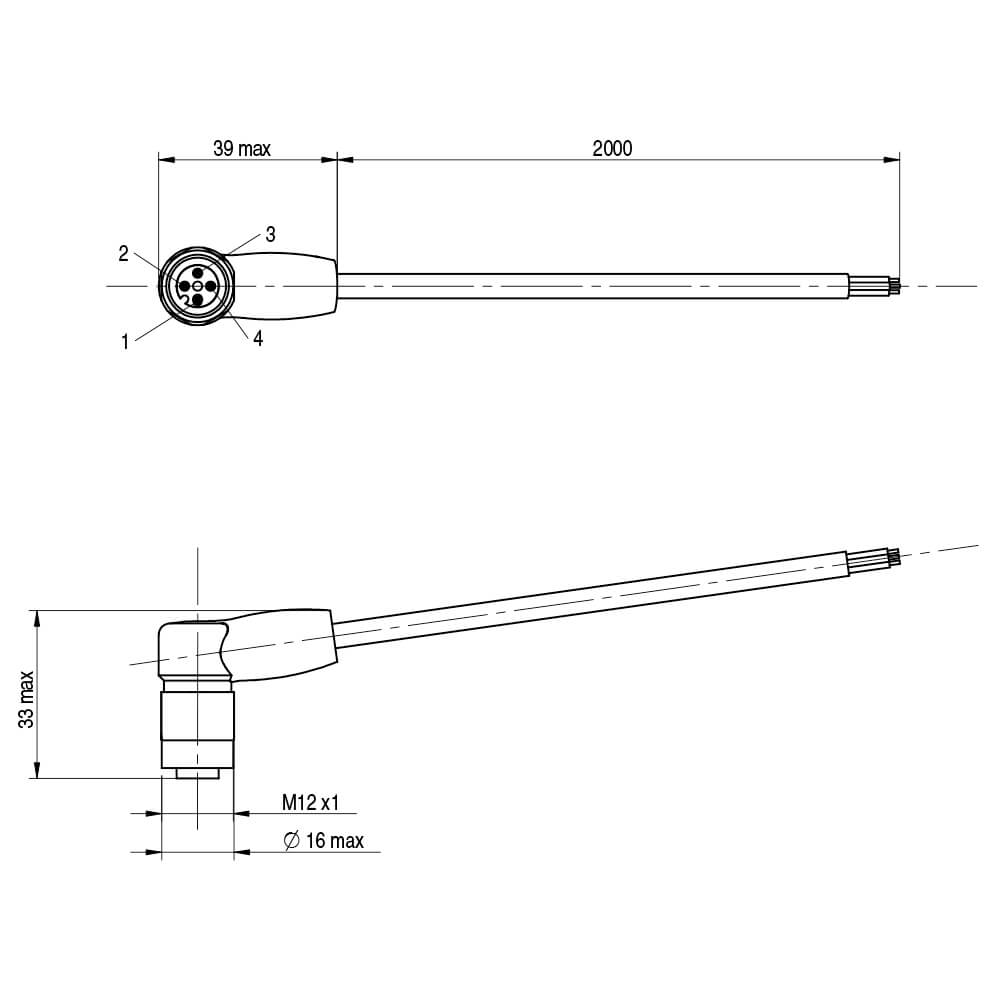

| Head type | 90° |
| Plug | M12 |
| Outer diameter | Ø 4,5 mm ± 5% |
| Jacket material | PVC CEI 2022 II OR |
| Wire isolation | PVC |
| Conductors section | 0,25 mm2 (32 x 0,10 mm2) |
| Model |
| Degree of protection | IP67 |
| Operating Temperature | =10°C...+80°C (flexible installation)-25°C...+80°C (fixed installation) |
| Mechanical Protection | IP67 |
