| Nominal current | 4 A |

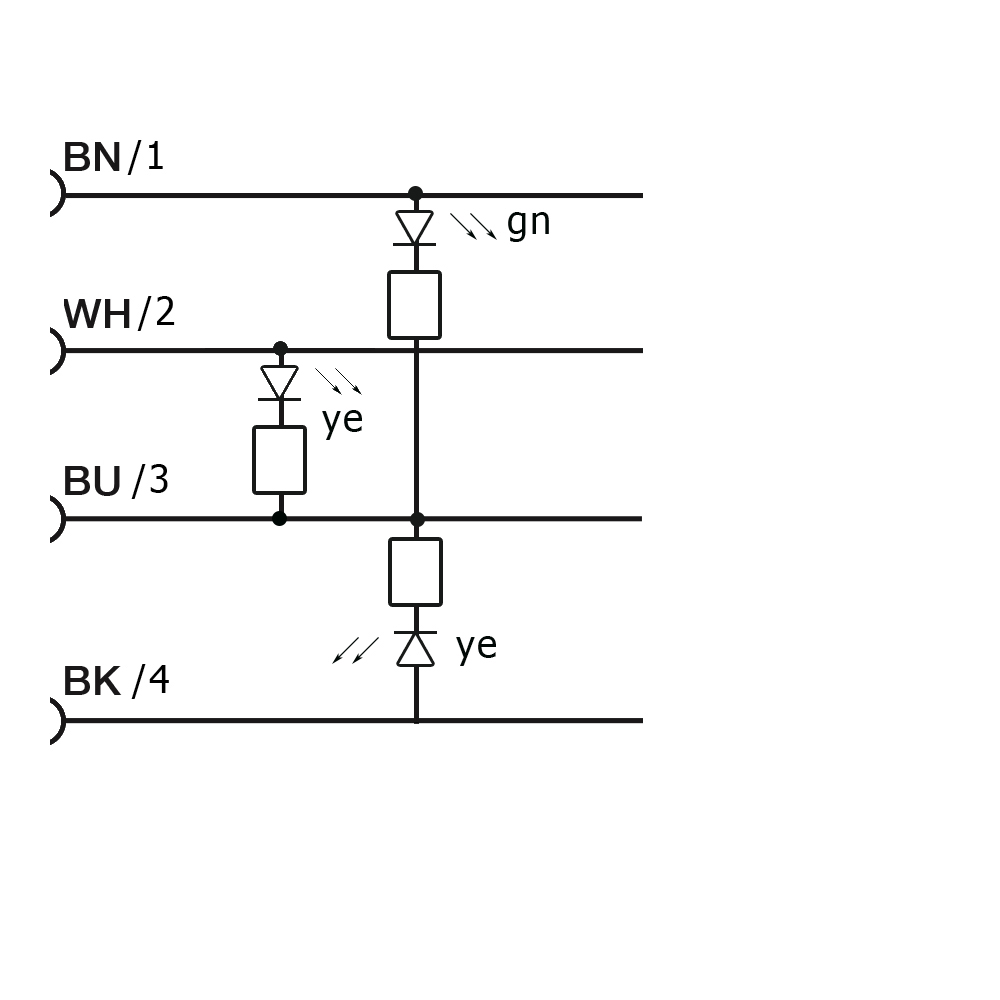

| Led | 3 (Supply - PNP output pin 4-2) |
| Wires | 4 |
| Nominal voltage | 250 V |
| Connections | With open ended wires |
| Operating temperature | -40°C … +80°C (fixed installation) '-25°C … +80°C (flexible installation) |
| Fibre lengh (m) | 5 |

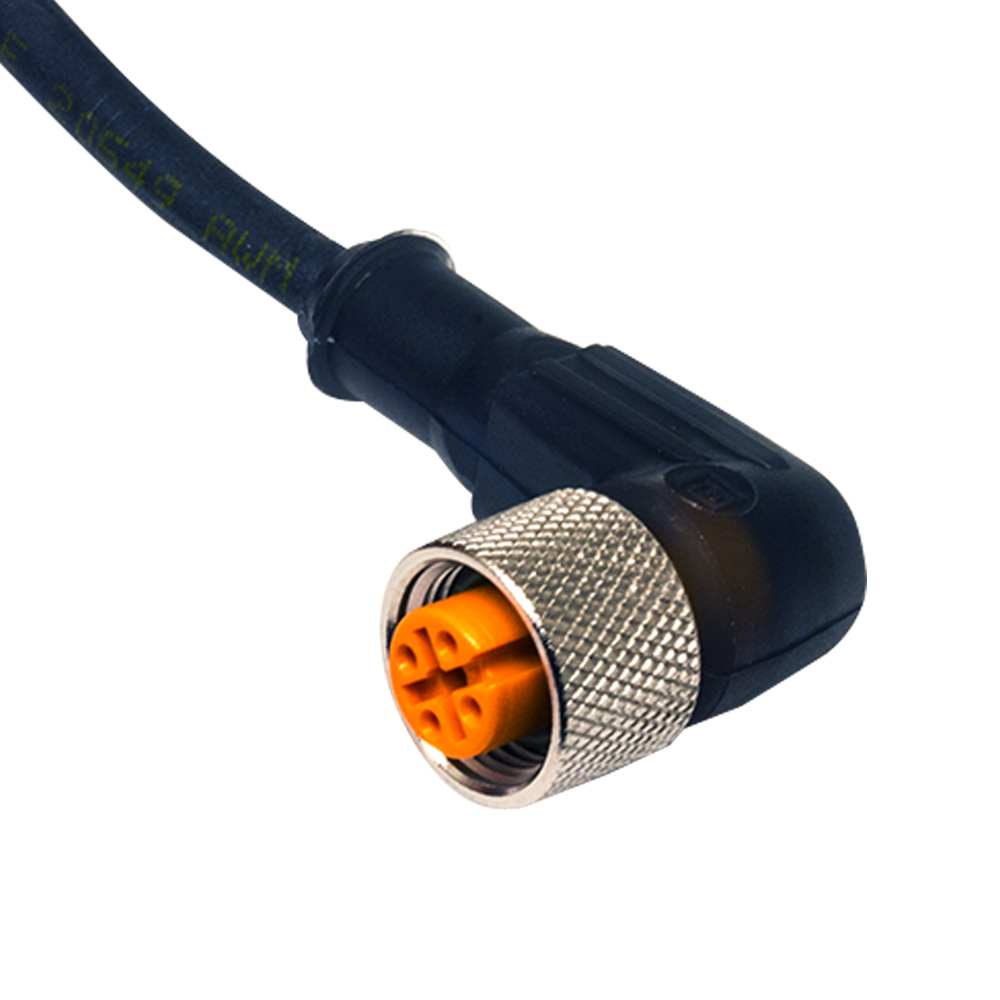

| Head type | 90° |
| Plug | M12 |
| Outer diameter | Ø 4,7mm ±0.20mm |
| Jacket material | TPU |
| Wire isolation | PP |
| Bending radius | > 5 x D (fixed installation) > 10 x D (flexible installation) |
| Model |
| Degree of protection | IP67 |
| Operating Temperature | -40°C … +80°C (fixed installation) '-25°C … +80°C (flexible installation) |
| Mechanical Protection | IP67 |
