| Nominal sensing distance | 4…25mm |
| Thermal drift of Sr | < 20% |
| Repeat Accuracy | 5% |
| Sensitivity adjustment | Yes |
| Hysteresis | ≤ 20% |
| Output type | SCR |
| Output Function | NO/NC |
| Switching frequency | 10Hz |
| Operating Voltage | 20...250Vac/50-60Hz |
| No-Load supply current | ≤ 12mA |
| Load current | 2,5A max (20ms) |
| Leakage current | ≤ 100µA |
| Output voltage drop | 10VAC @ IL≥200mA |
| Max ripple content | ≤10% |
| LED indicators | Yellow LED (object detected) |
| Time delay before availability | ≤ 200ms |
| Short-circuit protection | Yes, autoreset |
| Reverse Polarity Protection | Yes |
| Impulsive Overvoltage Protection | Yes |
| Mounting | Unshielded |

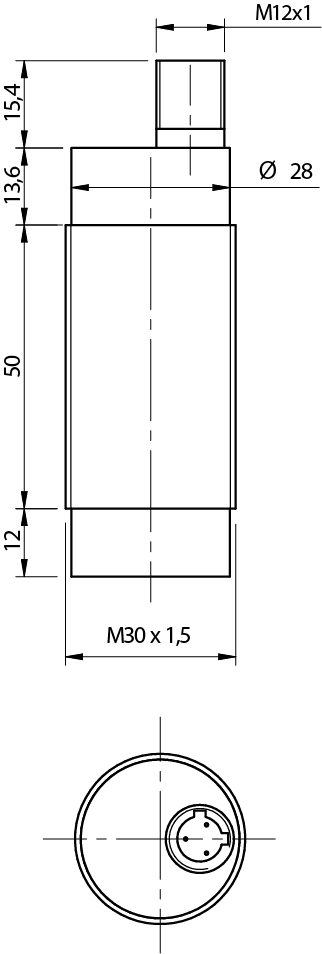

| Dimensions | M30 / L = 91mm |
| Weight | 150g |
| Housing Material | AISI 304 stainless steel |

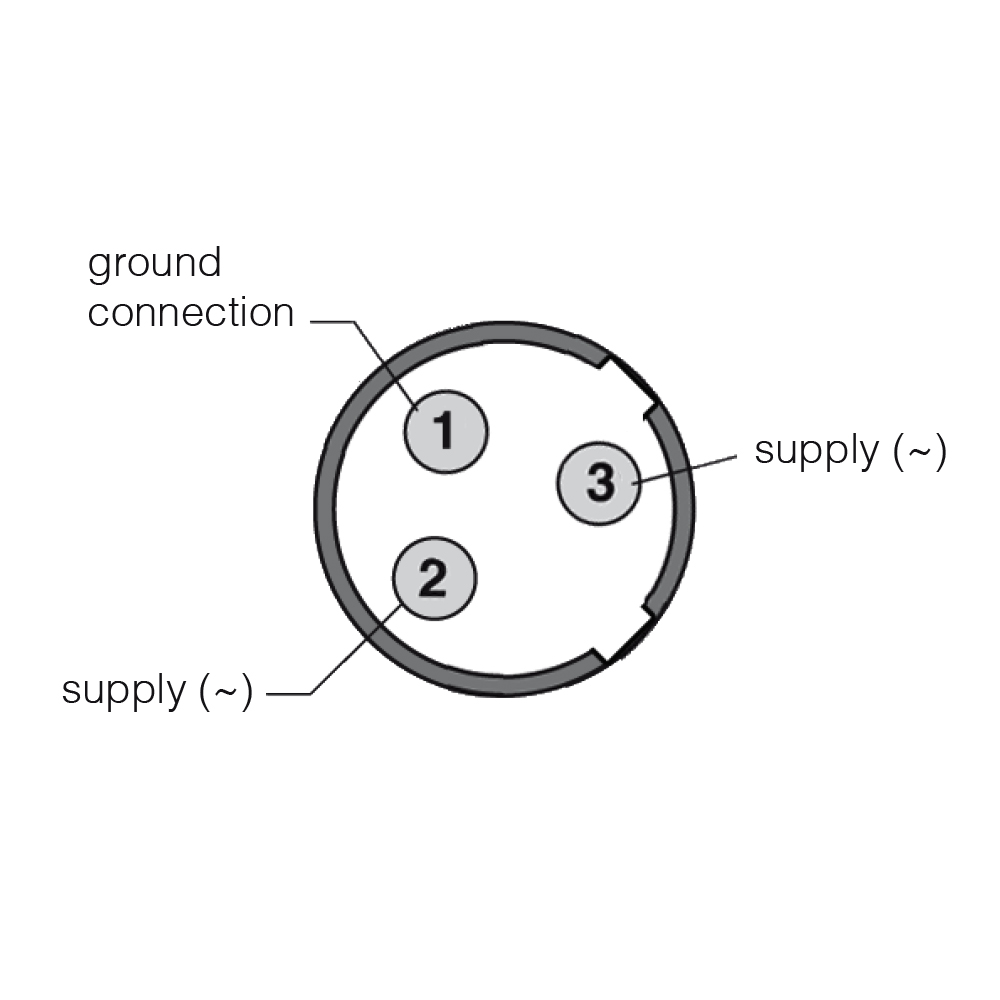

| Connections | M12 plug |
| Active Head Material | Polyester |
| Tightening torque | 50Nm |
| Operating temperature | -25°C…+80°C (without freeze) |
| Storage temperature | -40°C…+85°C |
| Diameter/Dimension | M30 |
| Approvals | CE cULus |
| EMC compatibility | IEC 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP67 |
| Supplied Accessories | screw driver, 2 x M30 nuts |
| Dimensions | M30 / L = 91mm |
| Operating Temperature | -25°C…+80°C (without freeze) |
| Mechanical Protection | IP67 |
