| Nominal sensing distance | 0,5…4mm shielded; 0,5…8mm unshielded |
| Thermal drift of Sr | < 20% |
| Repeat Accuracy | 5% |
| Sensitivity adjustment | Yes |
| Hysteresis | ≤ 20% |
| Output type | NPN/PNP |
| Output Function | NO/NC |
| Switching frequency | ≤15Hz |
| Operating Voltage | 10...40Vdc |
| No-Load supply current | ≤ 12mA |
| Load current | ≤ 200mA |
| Leakage current | ≤ 300μA |
| Output voltage drop | ≤ 2,5V @ IL = 200mA |
| Max ripple content | ≤10% |
| LED indicators | Yellow LED (object detected), green LED power supply/stability |
| Time delay before availability | ≤ 200ms |
| Short-circuit protection | polarity reversal, overvoltage |
| Reverse Polarity Protection | Yes |
| Impulsive Overvoltage Protection | Yes |

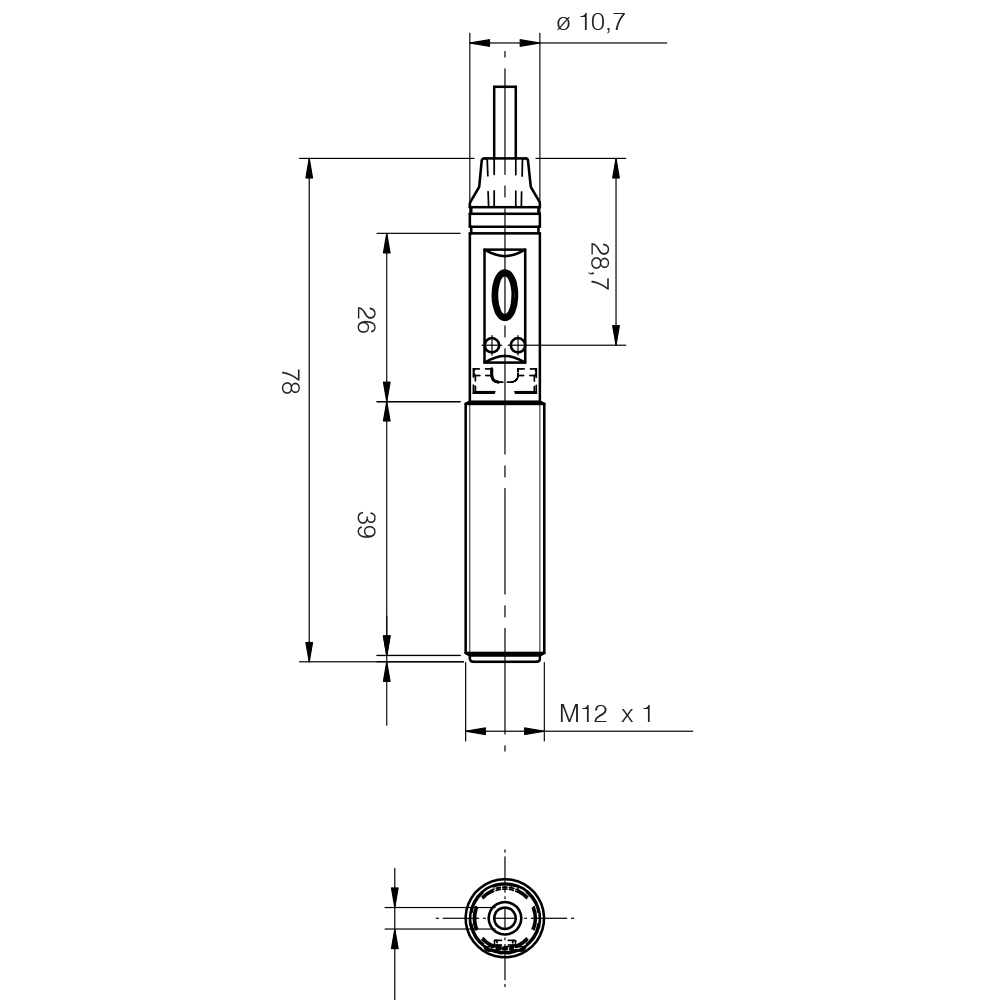

| Dimensions | M12 x 1 / L = 78mm |
| Mounting | Shielded/Unshielded |
| Housing material | Polyester |
| Weight | 110g |
| Connections | 2m PVC cable |
| Active Head Material | Polyester |
| Operating temperature | -35°C…+85°C (without freeze) |
| Storage temperature | -40°C…+85°C |
| Diameter/Dimension | M12 |
| Approvals | CE cULus |
| EMC compatibility | IEC 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP67 |
| Supplied Accessories | 2 x M12 nuts |
| Dimensions | M12 x 1 / L = 78mm |
| Operating Temperature | -35°C…+85°C (without freeze) |
| Mechanical Protection | IP67 |
