| Nominal sensing distance | 0,3…2m |
| controlled height | 100mm |
| minimum detectable object | Flat: 0,2x75mm Cylindrical: Ø 6mm |
| number of rays | 16 |
| Sensitivity adjustment | Trimmer |
| Function Principle | Emitter- Receiver |
| Description | Slim profile - High res. 6 mm |
| Functions | Light array for detection |
| Output type | PNP - Dark mode |
| Output Function | Dark ON |
| Response time | 2,5ms |
| Operating Voltage | 20,4…27,6VDC |
| No-Load supply current | ≤190mA |
| Load current | ≤100mA |
| Output voltage drop | ≤1,5V Iload = 100mA |
| LED indicators | Yellow (output state) Green (PowerON) |
| Emission | Infrared (880nm) |

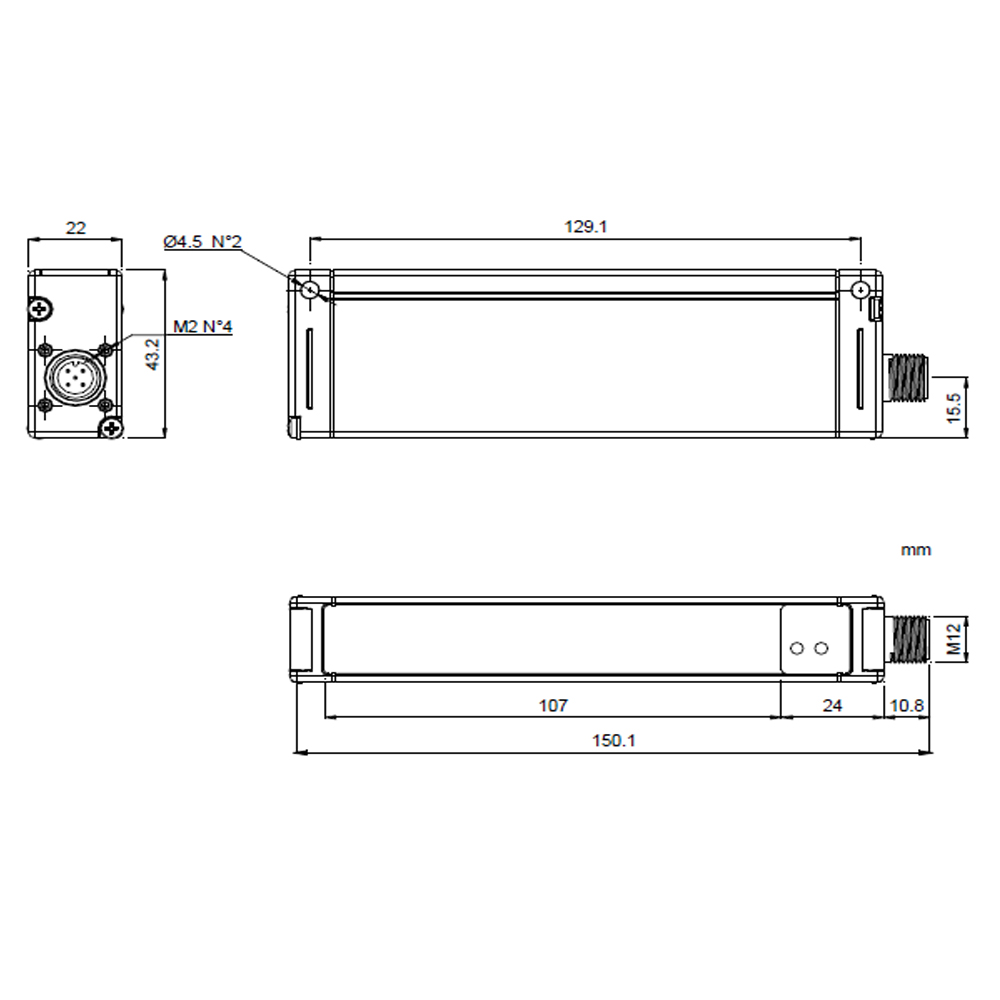

| Dimensions | 22x150x43 |
| Weight | 300g |
| Housing Material | Aluminium |

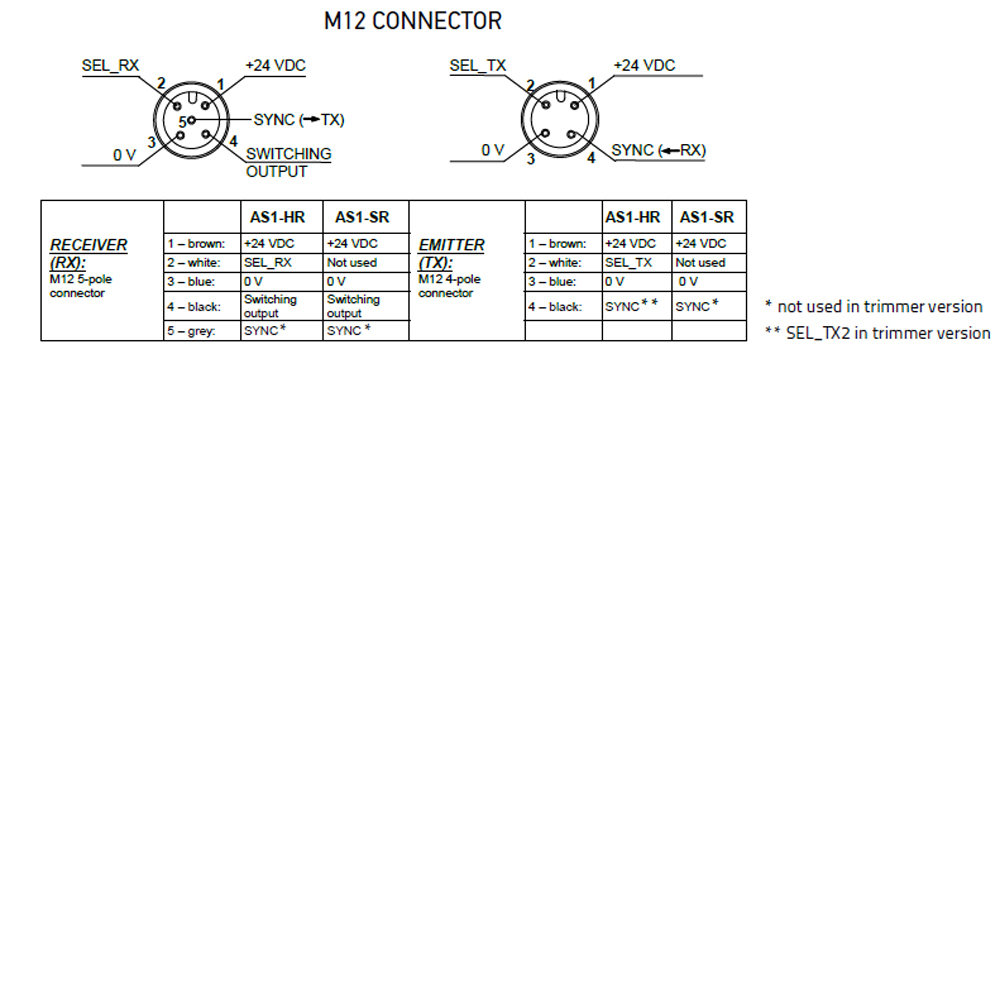

| Connections | M12 Plug |
| Active Head Material | PMMA |
| Material | Metal - Aluminium / PMMA |
| Approvals | CE cULus |
| Supplied Accessories | Fixing brakets |
| Dimensions | 22x150x43 |
| Operating Temperature | 0°C…+ 50° C |
| Mechanical Protection | IP65 |
