| Nominal sensing distance | 0…4mm |
| Operanting distance | 0…4mm |
| Standard target | 12x12mm FE360 |
| Thermal drift of Sr | ±5% (0…+70°C); ±10% (-25°C…0°C) |
| Repeat Accuracy | 0,3mm (UB 20...30Vcc/Vdc Ta=23°C ±5°C) |
| Resolution | ≤1µm |

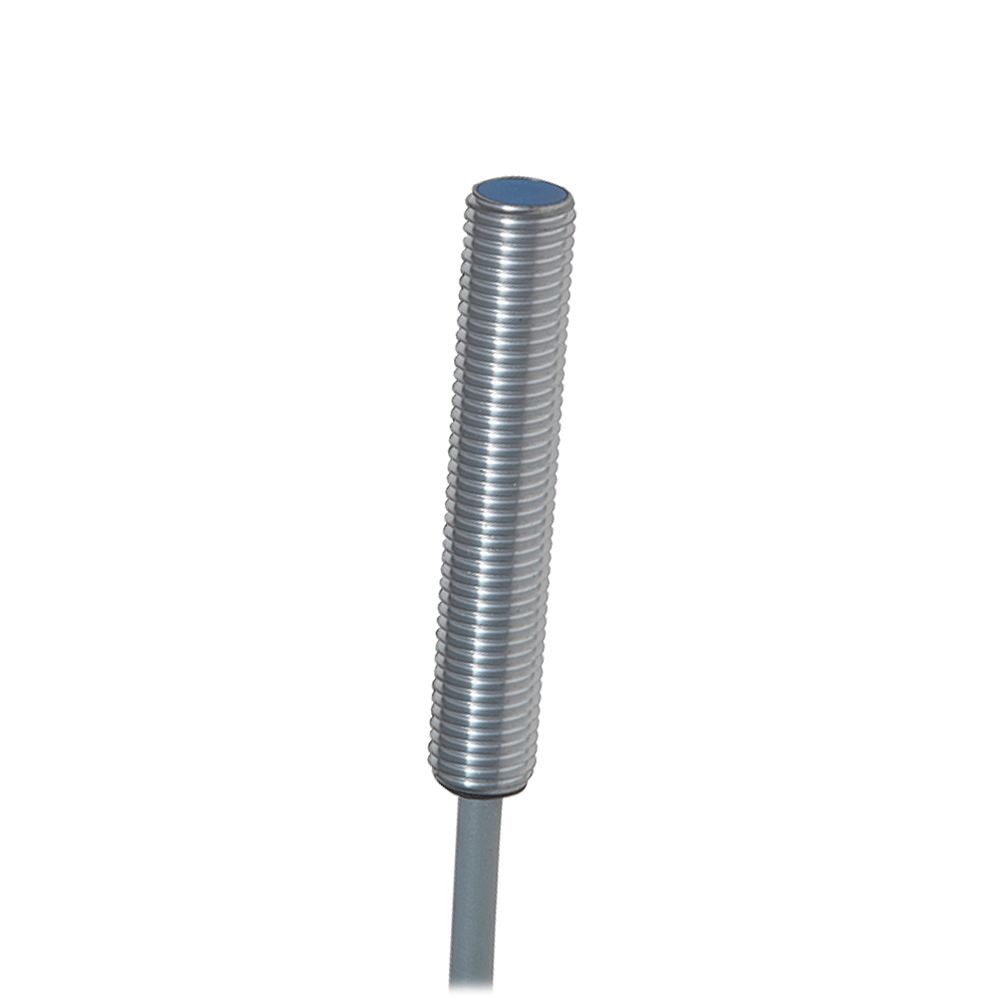

| Description | M8 standard no-flush mount |
| Functions | Proximity |
| Output type | Analogue |
| Output Function | Analogue |
| Voltage Analogue Output | 1 x 0...10V |
| Operating Voltage | 10...30Vdc |
| No-Load supply current | ≤ 10mA |
| Load current | ≤ 10mA |
| Max ripple content | ≤ 20% |
| Time delay before availability | ≤ 50ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Impulsive Overvoltage Protection | Yes |
| Output voltage | 0V - 0 + 0,4V (23°C) +5,2V ± 0,4V (23°C) +10V ± 0,4V (23°C) |

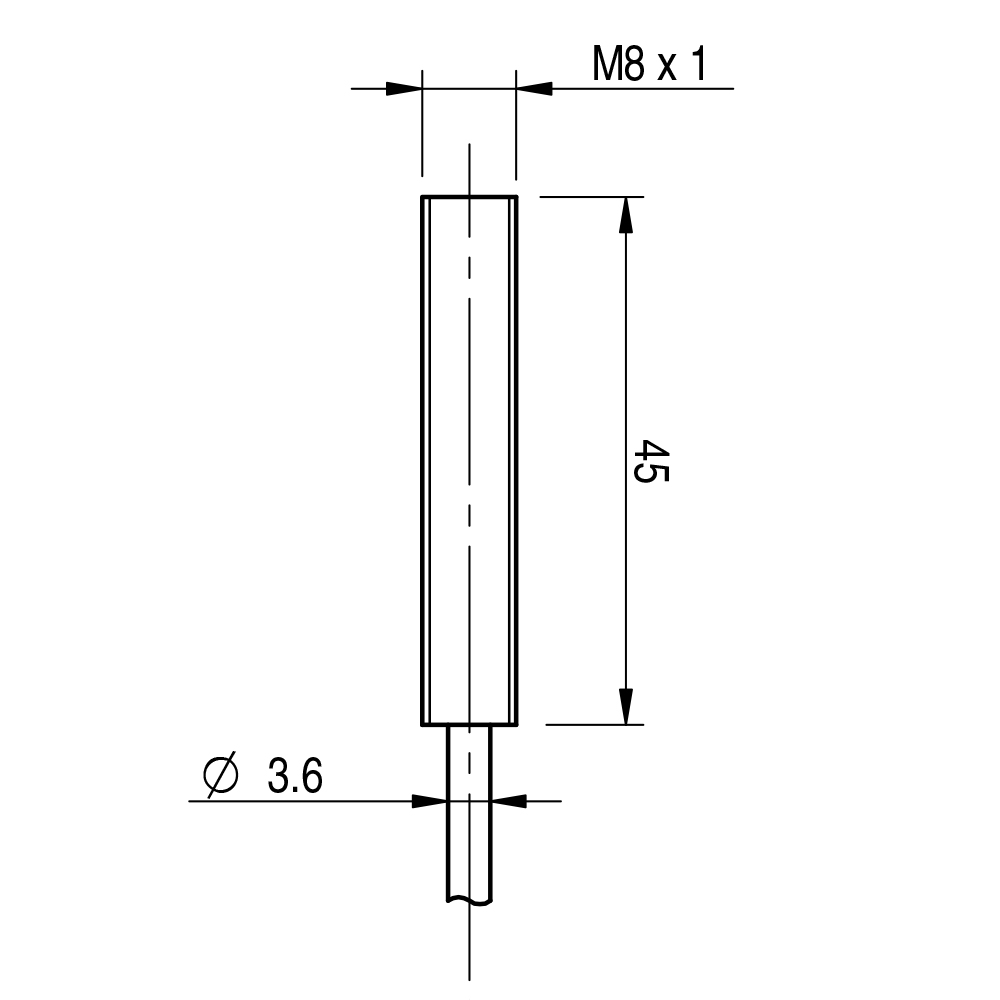

| Dimensions | M8 x 1 / L = 45mm |

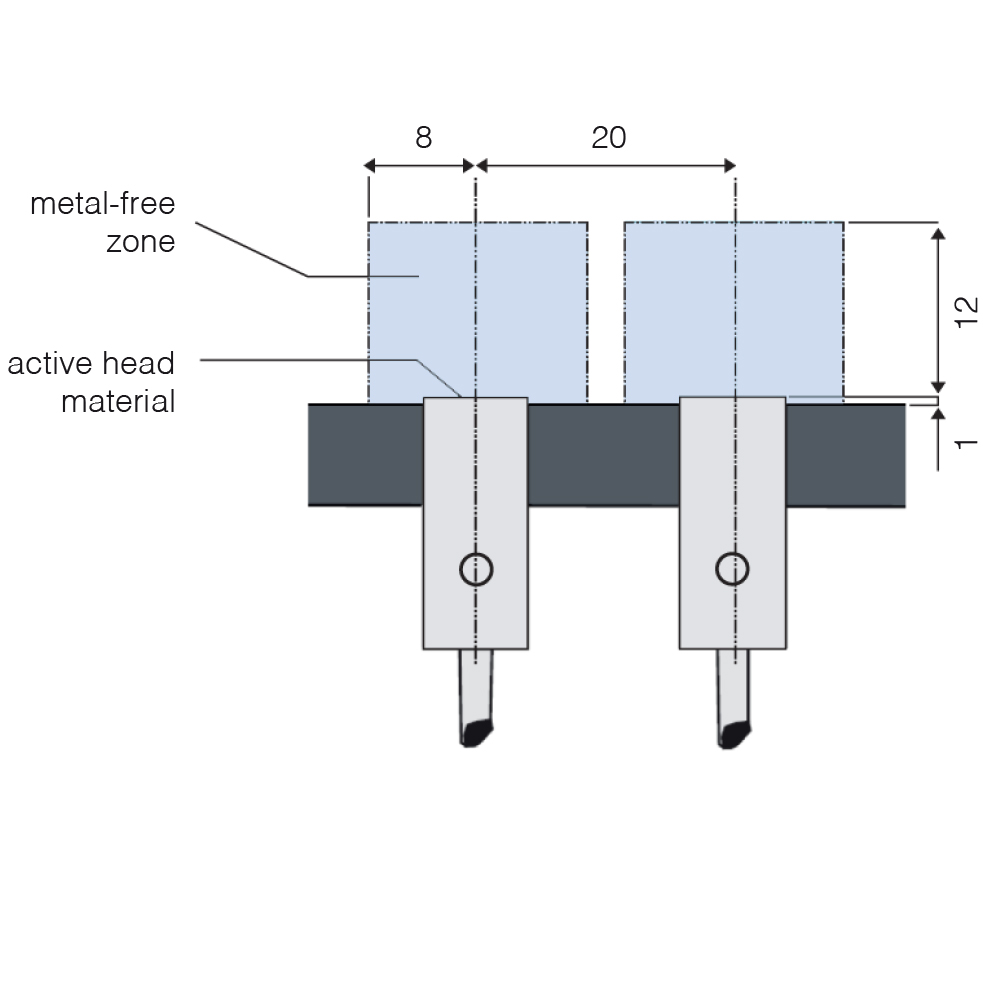

| Mounting | Partially Shielded |
| Material | Nickel-plated brass |
| Housing material | Nickel-plated brass |
| Weight | 50g |

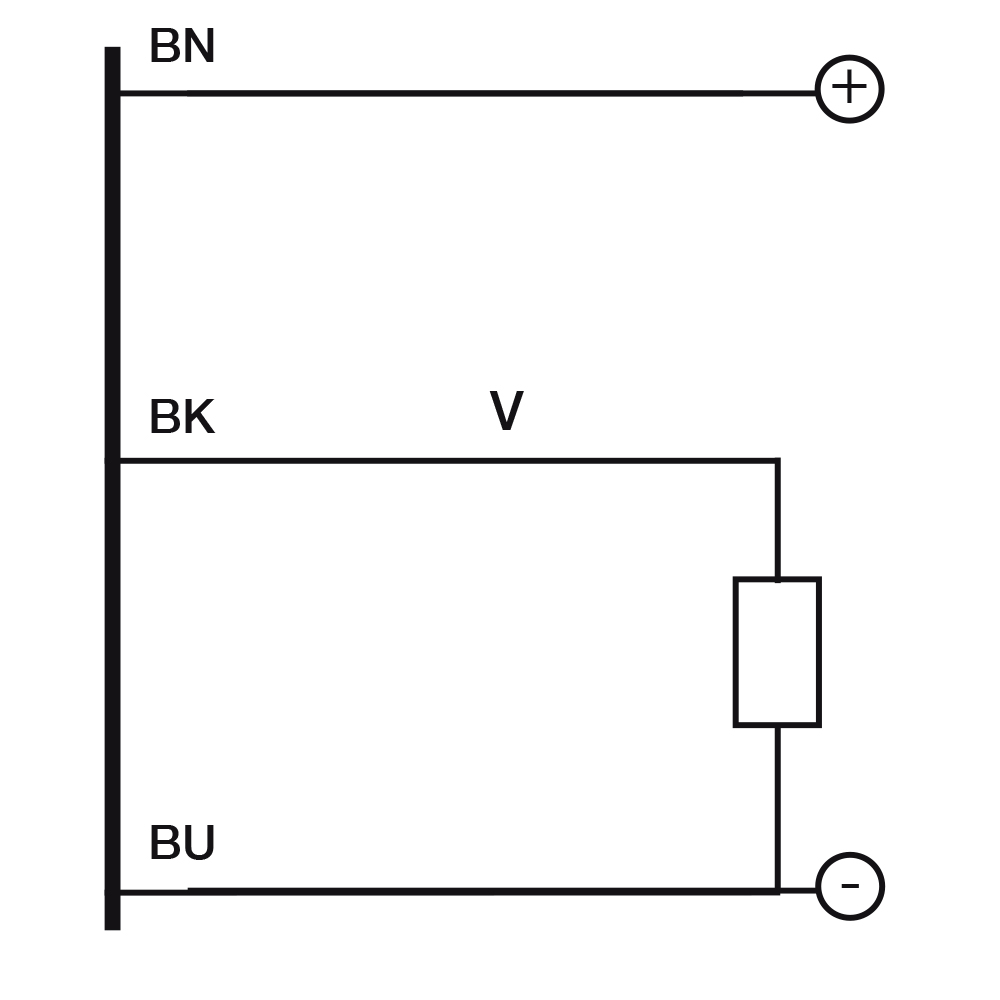

| Connections | 2m PVC Cable |
| Active Head Material | PBT |
| Tightening torque | 3Nm |
| Operating temperature | -25°C…+70°C |
| Diameter/Dimension | M8 |
| Approvals | CE |
| EMC compatibility | IEC 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP67 |
| Supplied Accessories | 2 nuts M8x1 |
| Dimensions | M8 x 1 / L = 45mm |
| Operating Temperature | -25°C…+70°C |
| Mechanical Protection | IP67 |
