| Nominal sensing distance | According to the sensors used: LS2 up to 12m LS4 up to 20m |
| Function Principle | Control unit |
| Available functions | Manual/Automatic Restart, EDM, System Status, Muting, Override |

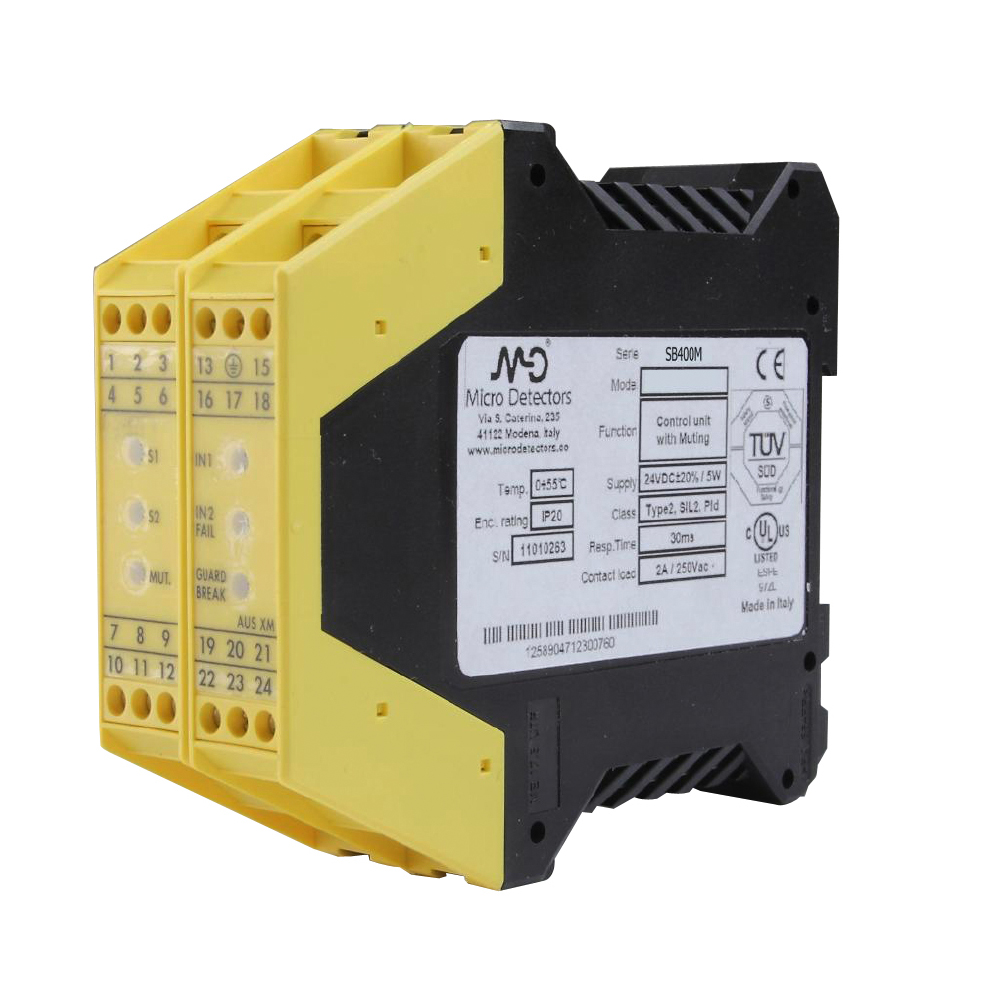

| Description | Cat. 4 Safety Module with integrated Muting function |
| Usable with | Safety light curtains: LS2, LS4, LP4 |
| Max. number of sensors connected | 1 x LS2/LS4 receiver |
| Max. number of muting sensors | 2 x PNP-NO |
| Muting lamp output | 24V - 0,5 … 5W |
| Functions | Relays modules |
| Type | |
| SIL | |
| SILCL | |
| PL | d (2A@230VAC; 1 comm. @30s) e (2A@230VAC; 1 comm. @60s) e (2A@230VAC; 1 comm. @1h) e (2A@230VAC; 1 comm. @24h) d (0,5A@230VAC; 1 comm. @30s) d (0,5A@230VAC; 1 comm. @60s) e (0,5A@230VAC; 1 comm. @1h) e (0,5A@230VAC; 1 comm. @24h) |
| CFF | 80% |
| Output type | 2 x relay NO (OSSD safety output) 1 x NO, 100mA, 24V (System Status) |
| Response time | ≤ 20ms |
| Override Time-out | 15 min |
| Operating Voltage | 24Vdc ± 20% |
| Power consumption | ≤ 5W |
| Load current | 2A @ 250V |
| Cabel Length (Power Supply/Output) | ≤ 100m |
| Cable Length (sensors) | ≤ 100m |

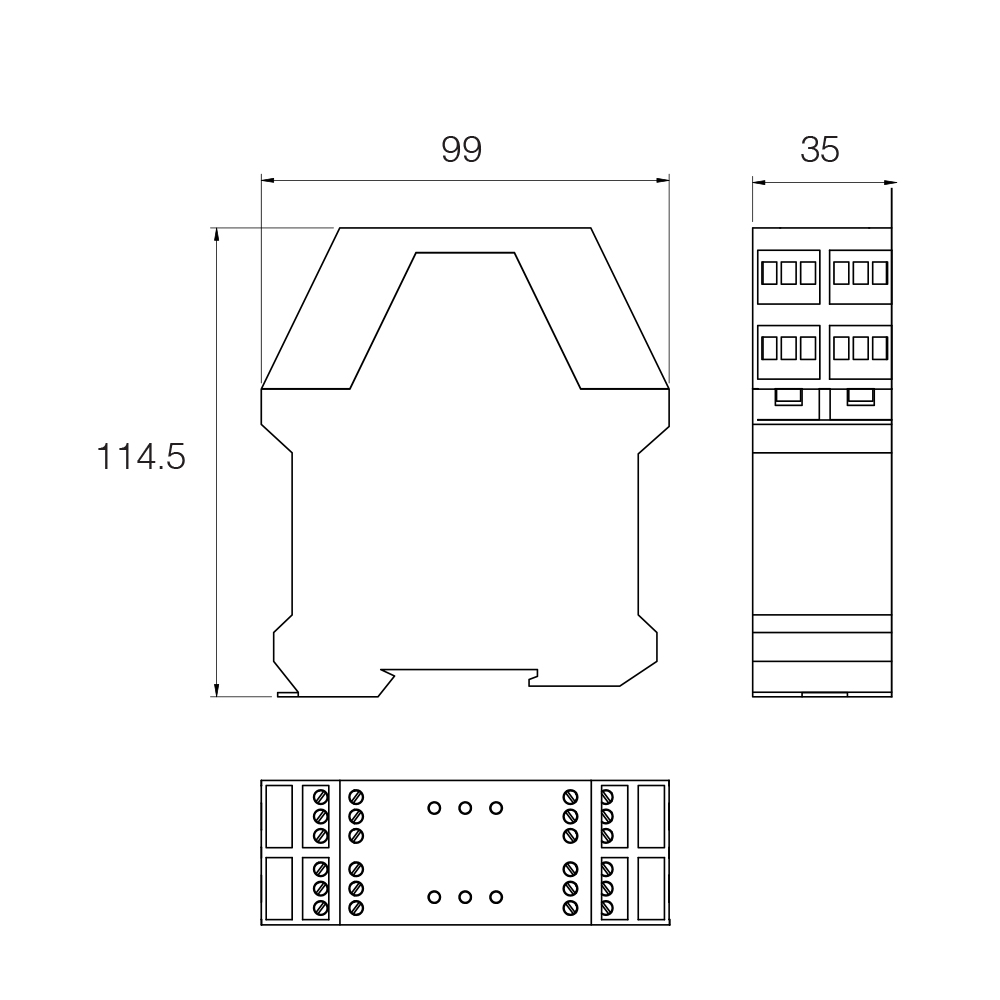

| Dimensions | 35 x 99 x 114,5 mm |
| Connections | terminals |
| Operating temperature | 0°C … + 55°C |
| Approvals | CE, cULus, TÜV |
| EMC compatibility | According to 2014/30/EU Directive |
| Degree of protection | IP20 |
| Dimensions | 35 x 99 x 114,5 mm |
| Operating Temperature | 0°C … + 55°C |
| Mechanical Protection | IP20 |
