SH4 Standard

957920025

SH4-14-1800-S-8

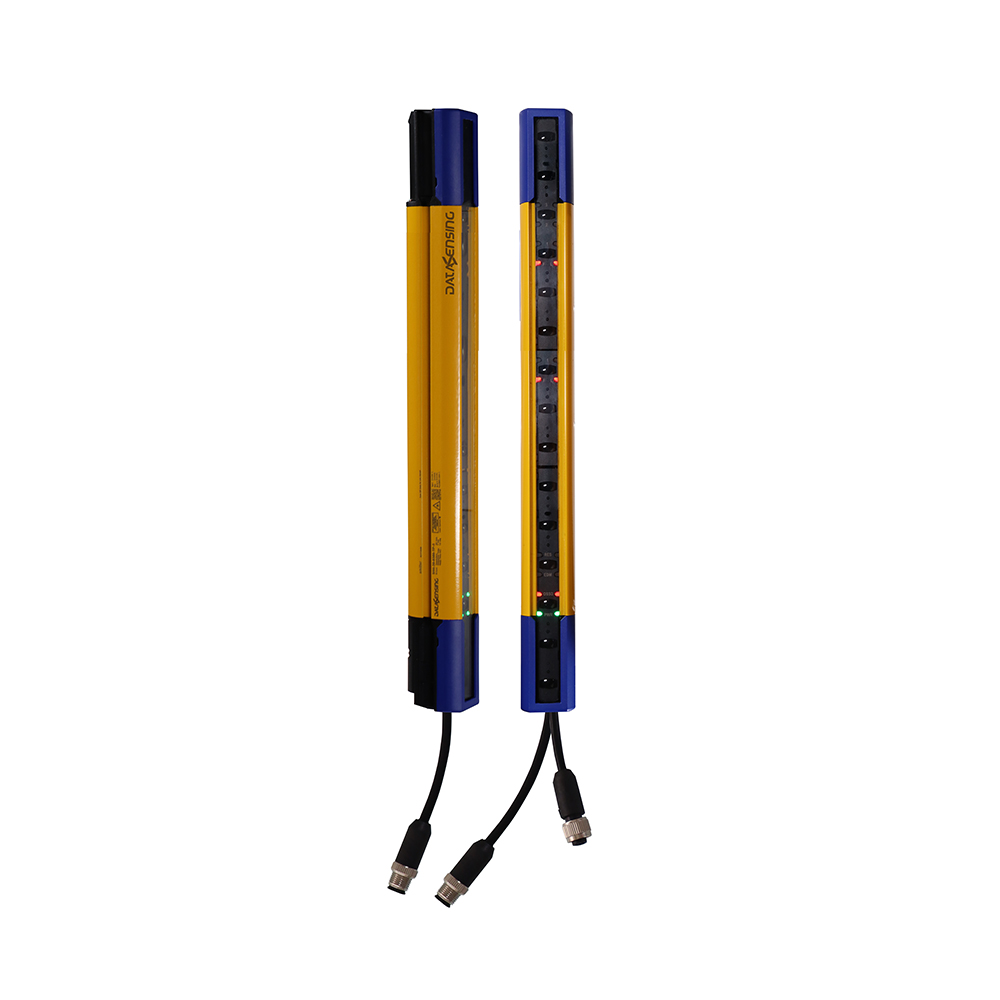

SH4 STANDARD Res = 14 mm h = 1800 mm 8 poles edm man/auto

Type 4 safety light curtain with manual restart and EDM

Overview

  • Finger protection (14 mm)
  • Improved operating range: 10 m
  • Basic functions: alignment, automatic restart
  • Standard functions: manual restart, EDM
  • Zero dead zone
  • Extended monitored height up to 2250 mm
  • Compact profile (35 x 40 mm), common to all SH4 line
  • Installation eased by LEDs indications of beam intensity
  • Optical synchronization with 2 beams
  • IP67 Protection
  • -30 … +55 °C Operating temperature
  • Complete couple and angular bracket included in the package
  • Pigtails with M12 connectors with standard not shielded cables

Technical Features

Detection properties
Nominal sensing distance 0.2 … 10 m
Resolution 14 mm
controlled height 1800 mm
number of rays 180
Effective Aperture Angle ≤ ±2.5°
Application
Function Principle Emitter + Receiver
Available functions Manual/Automatic Restart, EDM
Description 10 mm / 3g, 5 to 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3); 25g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3)
Functions M12-5 poles pigtail (emitter) M12-8 poles pigtail (receiver)
Safety parameters
Type Type 4 safety light curtain (A/M)
SIL 0.2 … 10 m
SILCL -30 …+70 °C
PL 24 Vdc ± 20%
PFHd 2 x PNP-NO (OSSD safety output) with EDM
MTTFd Emitter + Receiver
SFF 14 mm
Outputs
Output type 2 x PNP-NO (OSSD safety output) with EDM
Response time 24 ms
Electrical data
Operating Voltage 24 Vdc ± 20%
Load current ≤ 250mA each output
Emission Infrared LED (850 nm wavelength)
Interference to external light According to IEC 61496-2
Power Consumption - Receiver ≤ 4W (no load)
Power Consumption - Emitter ≤ 3,5W
Capacitive Load ≤ 1µF
Cabel Length (Power Supply/Output) CE, cULus, TÜV, UKCA
Mechanical data
Connections M12-5 poles pigtail (emitter) M12-8 poles pigtail (receiver)
Storage temperature -30 …+70 °C
Material ≤ 250mA each output
Vibrations 300 mm
Shocks 30
Test/Approvals
Approvals CE, cULus, TÜV, UKCA
EMC compatibility According to 2014/30/EU Directive
Shocks and vibrations 10 mm / 3g, 5 to 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3); 25g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3)
Accessories
Supplied Accessories Standard "L" Mounting Brackets: 6 pcs kit
Accessories to be ordered separately Top-bottom rotating mounting bracket ST-K4ROT-SH
Generical Data
Dimensions Infrared LED (850 nm wavelength)
Operating Temperature According to IEC 61496-2
Humidity 9 ms
Mechanical Protection Top-bottom rotating mounting bracket ST-K4ROT-SH
