| Nominal sensing distance | 0.5 … 8 m |
| Resolution | 500 mm |
| controlled height | 500 mm |
| number of rays | 2 |
| Effective Aperture Angle | ≤ ±2.5° |
| Function Principle | Active Side and Retroreflective Passive Side |
| Available functions | Automatic Restart |

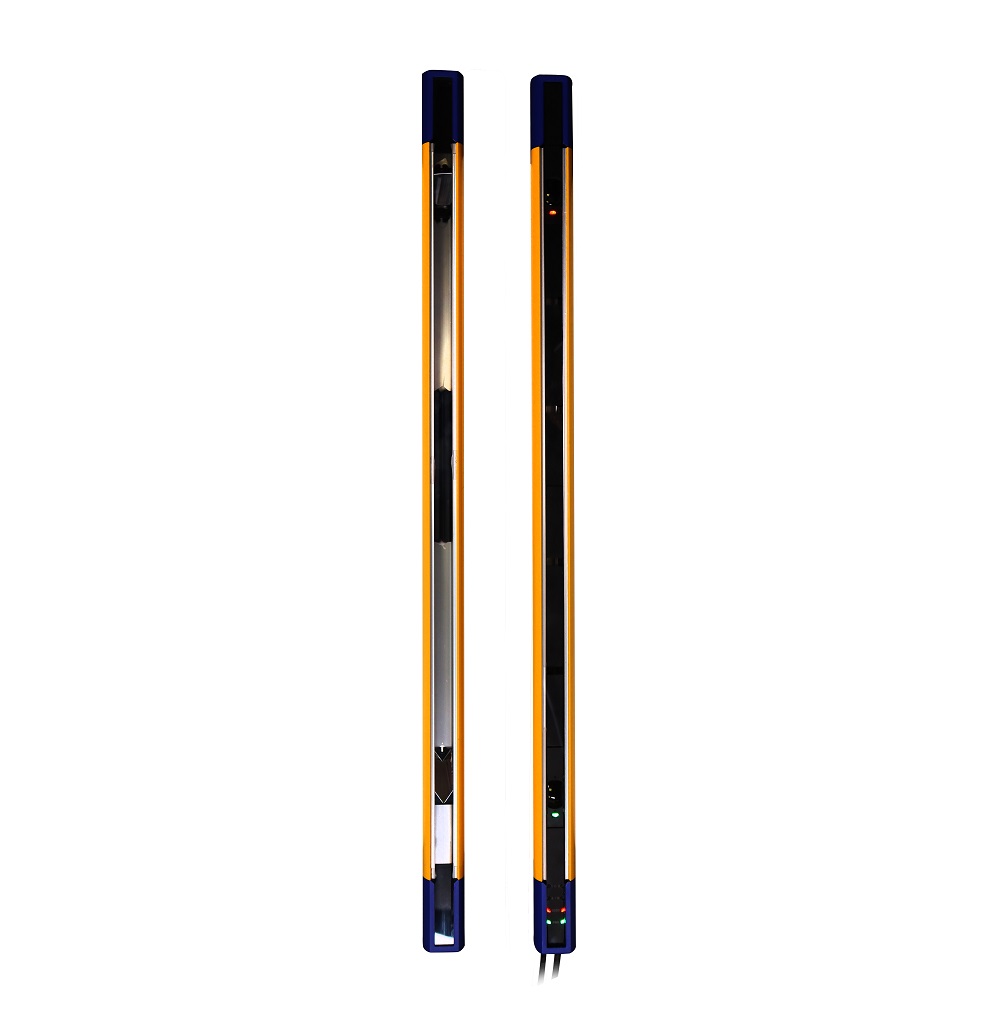

| Description | Compact no-dead-zone BASIC |
| Functions | Body protection 2 beams |
| Type | Type 4 safety light curtain (A/M) |
| SIL | 3 |
| SILCL | 3 |
| PFHd | 2,62E-08 |
| PL | e |
| MTTFd | 43 years |
| SFF | 99,50% |
| Output type | 2 x PNP-NO (OSSD safety output) |
| Response time | 12 ms |
| Operating Voltage | 24 Vdc ± 20% |
| Load current | ≤ 250mA each output |
| Emission | Infrared LED (850 nm wavelength) |
| Interference to external light | According to IEC 61496-2 |
| Capacitive Load | ≤ 1µF |
| Cabel Length (Power Supply/Output) | ≤ 30 m |
| Power Consumption | Active unit ≤ 2W (no load) |
| Material | Painted aluminum / MAKROLON AR 7099 Clear PC / PBT |
| Connections | M12-5 poles pigtail (active unit) |
| Storage temperature | -30 …+70 °C |
| Vibrations | 10 mm / 3 g, 5 … 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3) |
| Shocks | 25 g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3) |
| Approvals | CE, cULus, TÜV, UKCA |
| EMC compatibility | According to 2014/30/EU Directive |
| Shocks and vibrations | 10 mm / 3g, 5 to 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3); 25g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3) |
| Supplied Accessories | Standard "L" Mounting Brackets: 4 pcs kit |
| Accessories to be ordered separately | Top-bottom rotating mounting bracket ST-K4ROT-SH |
| Dimensions | 35x40x726 mm |
| Operating Temperature | -30…+55°C |
| Humidity | 15 … 95 % (no condensation) |
| Mechanical Protection | IP65, IP 67 (EN 60529) |
