| Nominal sensing distance | 10m (ExG=4) |
| Thermal drift of Sr | ≤ 10% |
| Resolution | Single-beam |
| controlled height | Single-beam |
| Effective Aperture Angle | ≤ ±5° |
| Effective Aperture Angle | Typical ±1,8° |
| Function Principle | Emitter |
| Notes | not working with SBCR03 control unit. To be used with external safety control unit with automatic optics test function |

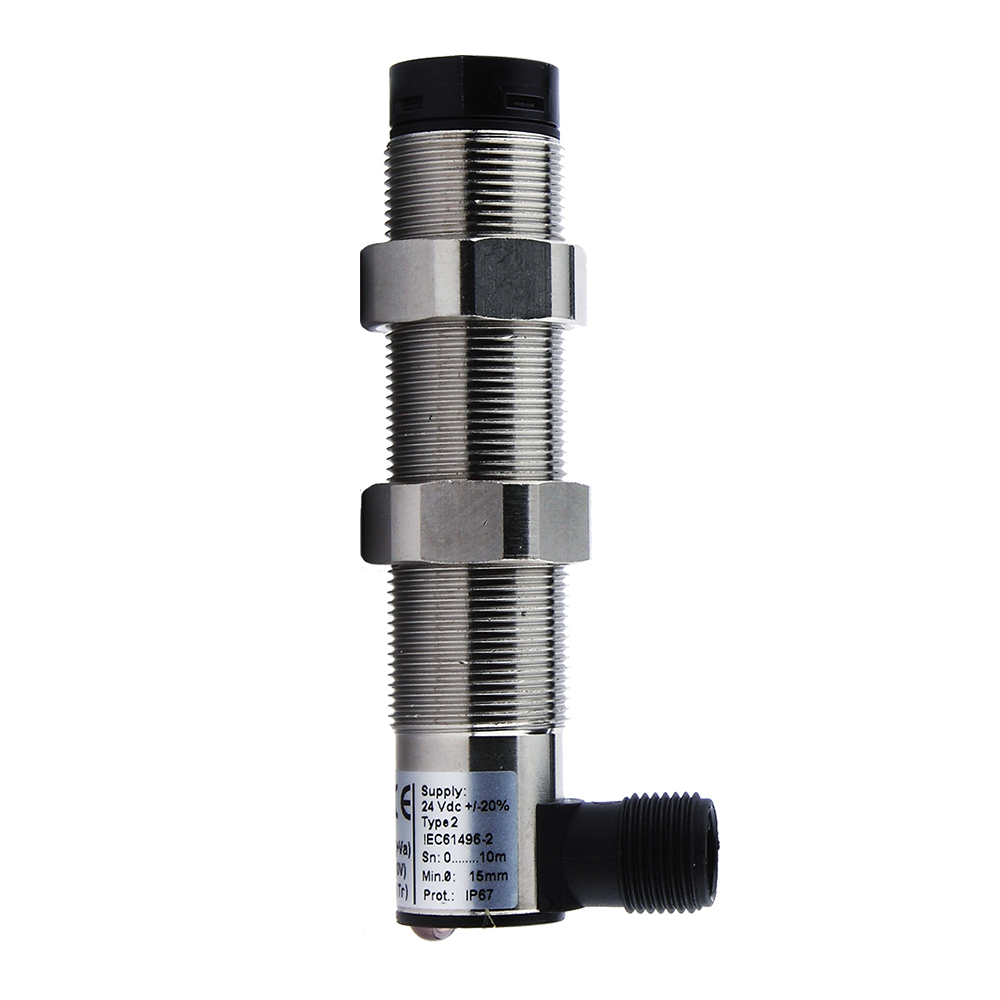

| Description | M18 Type 2 Safety Photocell Emitter |
| Type | Type 2 safety photocell |
| SIL | 1 |
| SILCL | 1 |
| PL | c |
| PFHd | 1,00E-06 |
| MTTFd | 20 years |
| Operating Voltage | 10 … 30 Vdc |
| No-Load supply current | ≤ 25mA |
| Max ripple content | ≤ 5 Vpp |
| LED indicators | Yellow (power) |
| Emission | Red |
| Test levels | <5V emission inactive >15V emission active |
| Dimensions | M18 |
| Housing Material | PBT |
| Connections | M12 plug |
| Active Head Material | Glass |
| Operating temperature | -20°C … +55°C |
| Storage temperature | -40°C … +75°C |
| humidity | 15% … 95% |
| Approvals | CE, TÜV |
| Shocks and vibrations | 10g - 16ms (according to IEC600068-2-29) 10Hz…55Hz - 1 oct/min - 0,35mm (according to 60068-2-6) |
| Degree of protection | IP67 |
| Supplied Accessories | 2 x nuts |
| Dimensions | M18 |
| Operating Temperature | -20…+55°C (Without freeze) |
| Humidity | 15% … 95% |
| Mechanical Protection | IP67 |
